Yellow Canada Standard Movable Temporary Site Fencing 6ft X10ft Steel Security Panels

    Buy cheap Yellow Canada Standard Movable Temporary Site Fencing 6ft X10ft Steel Security Panels from wholesalers

    Buy cheap Yellow Canada Standard Movable Temporary Site Fencing 6ft X10ft Steel Security Panels from wholesalers
    • Buy cheap Yellow Canada Standard Movable Temporary Site Fencing 6ft X10ft Steel Security Panels from wholesalers

    Yellow Canada Standard Movable Temporary Site Fencing 6ft X10ft Steel Security Panels

    Ask Lasest Price
    Brand Name : AOBIAO
    Model Number : FSL-CATF-005
    Certification : CE, ISO
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 1400 sets per week
    Delivery Time : 25-30 working days after receiving the deposit.
    • Product Details
    • Company Profile

    Yellow Canada Standard Movable Temporary Site Fencing 6ft X10ft Steel Security Panels

    Yellow Color Canada Standard Movable 6ft X10ft Steel Temporary Security Fence Panels


    Temporary security fence panels introduction


    As a professional manufacturer of CA temporary fencing, we own experienced technicians and a first-class product line. Use high-quality mild steel wire and tube as raw material, after welding with high-frequency welding technology. Plus strong corrosion treatment of electric galvanized before powder coated or hot dipped galvanized after welding. Service life can be up to 10 years.


    Temporary security fence panels specification


    Panel size6ft(H)*9ft(L),6ft(H)*9.5ft(L), 6ft(H)*10ft(L)
    Opening (mm)50x100 / 50x150 / 50x200 /60*150 / 75x150
    Wire Dia(mm)3 /3.5 /4 mm
    Panel Frame(mm)25*25,30*30 etc. ,2.0,2.5
    Middle beam19*19,20*20,25*25 Thickness:1.2,1.5,1.6 ,1.8,2.0
    Steel feet3.5"x 34" *7.5mm
    Top couplerWelded by round tube or square tube
    Finishing of fencehot-dipped galvanized then paint, galvanized then Powder coated
    Fence colorDark Green, Orange, Red etc

    Temporary security fence panels details

    Panel Specifications

    Some of the most commonly used panel specifications, usually we have a large inventory of these popular specifications. The order can be shipped the same day.

    • Standard Panel Size: 6’×9.5′ (182.9cm×289.6cm)
    • Available Panel Sizes: 6’×4′, 6’×6′, 6’×8′, 6’×10′
    • Wire Diameter: 2.9mm-3.5mm (0.118′-0.13′)
    • Mesh Size: 50×100mm(1.97’×3.94′), also supports customization
    • Frame Border Pipe: 25×25×(1.2mm-2.5mm thickness)
    • Horizontal Middle Brace: 20x20x(1.0mm-1.5mm thickness)
    • Available Colours: Safe yellow, orange, green, blue, red, black, etc

    Fence Feet, Panel Stand

    Fence feet are used to support fences, which are easy to disassemble and install. It is also can be galvanized or the same anti-corrosion treatment and color as the fence panel.
    Made from 6 mm solid or hollow steel and with a steel plate length of over 85 cm, it provides a solid base for the fence.

    • Feet Size: 600 – 870mm(length) × 120-160mm(width) × 5-10mm(thickness)
    • Inside Round Steel Insert: 22mm(diameter) × 160mm(height)
    • Outside Square Steel Insert: 22mm × 22mm × 160 mm(height)
    • Square Steel and Round Steel Spacing: 40mm

    Top Connector

    Insert the connector at the top of the fence to securely attach temporary fence panels together. These top connectors are available in solid or hollow steel and can be hot-dip galvanized or PVC coated, powder-coated finish.

    • Connection Top Size: 100mm(length) × 22mm(width) × 10mm(thickness)
    • Left Round Steel Insert: 21.6mm(diameter) × 150mm(height)
    • Outside Square Steel Insert: 21.7m

    Solid steel for better stability, Hollow steel has a lower cost.

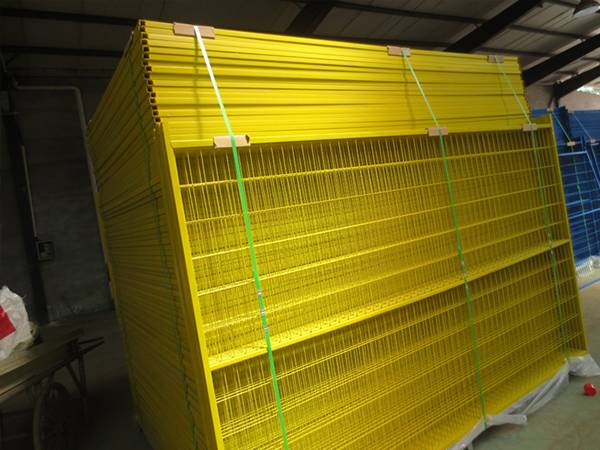

    Temporary security fence panels packing

    Product Tags:

    movable temporary site fencing



    6ft x 10ft temporary site fencing



    6ft x 10ft temporary site fence panels
