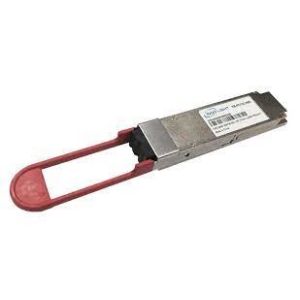

InnoLight 100Gb/s QSFP28 ER4 Lite Dual Rates Optical Transceiver TR-FC13D-NSN

InnoLight 100Gb/s QSFP28 ER4 Lite Dual Rates Optical Transceiver TR-FC13D-NSN

• Hot pluggable QSFP28 MSA form factor

• Compliant to Ethernet 100GBASE-ER4 Lite and OTN OTU4 4L1-9C1F Lite

• Supports 103.1Gb/s and 112Gb/s aggregate bit rates

• Up to 30km reach for G.652 SMF without FEC

• Up to 40km reach for G.652 SMF with FEC

• Single +3.3V power supply

• Operating case temperature: 0~70oC

• Transmitter: cooled 4x28Gb/s LAN WDM EML TOSA (1295.56, 1300.05, 1304.58, 1309.14nm)

• Receiver: 4x28Gb/s APD ROSA

• 4x28G electrical interface (OIF CEI-28G-VSR)

• Maximum power consumption 4.5W

• Duplex LC receptacle

• RoHS-6 compliant

Applications of TR-FC13D-NSN QSFP28 100G

• Ethernet 100GBASE-ER4

• OTN OTU4 4L1-9C1F

General Description of TR-FC13D-NSN QSFP28 100G

The QSFP28 100G TR-FC13D-NSN is a 100Gb/s and 112Gb/s transceiver module designed for optical communication applications compliant to Ethernet 100GBASE-ER4 Lite and OTN OTU4 4L1-9C1F Lite standards.

The module converts 4 input channels of 25Gb/s or 28Gb/s electrical data to 4 channels of LAN WDM optical signals and then multiplexes them into a single channel for 100Gb/s or 112Gb/s optical transmission.

Reversely on the receiver side, the module de-multiplexes a 100Gb/s or 112Gb/s optical input into 4 channels of LAN WDM optical signals and then converts them to 4 output channels of electrical data.

Functional Description of TR-FC13D-NSN QSFP28 100G

The QSFP28 100G TR-FC13D-NSN receives 4 channels of 25Gb/s or 28Gb/s electrical data, which are processed by a 4-channel Clock and Data Recovery (CDR) IC that reshapes and reduces the jitter of each electrical signal.

Subsequently, EML laser driver IC converts each one of the 4 channels of electrical signals to an optical signal that is transmitted from one of the 4 cooled EML lasers which are packaged in the Transmitter Optical Sub-Assembly (TOSA).

Each laser launches the optical signal in specific wavelength specified in IEEE 802.3ba 100GBASE-ER4 requirements. These 4-lane optical signals will be optically multiplexed into a single fiber by a 4-to-1 optical WDM MUX.

The optical output power of each channel is maintained constant by an automatic power control (APC) circuit. The transmitter output can be turned off by TX_DIS hardware signal and/or 2-wire serial interface.
