Tungsten Carbide Spray Metal Plunger Sucker Rod Pumps

    Buy cheap Tungsten Carbide Spray Metal Plunger Sucker Rod Pumps from wholesalers

    Buy cheap Tungsten Carbide Spray Metal Plunger Sucker Rod Pumps from wholesalers
    • Buy cheap Tungsten Carbide Spray Metal Plunger Sucker Rod Pumps from wholesalers

    Tungsten Carbide Spray Metal Plunger Sucker Rod Pumps

    Ask Lasest Price
    Brand Name : Zhongshi
    Model Number : RWBM
    Certification : API, ISO, QHSE
    Price : Negotiable
    Payment Terms : L/C, D/P, T/T, Western Union, D/A
    Supply Ability : 1000 SETS/MONTH
    Delivery Time : 10~15 workdays
    • Product Details
    • Company Profile

    Tungsten Carbide Spray Metal Plunger Sucker Rod Pumps

    Tungsten Carbide Spray Metal Plunger Rod Insert Pump


    Tungsten carbide spray metal plunger rod insert pump description:


    Rod pump is also known as insert rod pump, it is one type of the conventional sucker rod pumps. The rod pump is connected to the sucker rod directly, it can be pulled out with sucker rod and does not influence the tubing, so the well inspection and workover is more convenient. It can save half times and reduce cost of the pumping test, thus the rod pump is suitable for the deeper well.

    Depending on the wall thickness of the barrel, the rod pump can be classified as either a thin wall rod pump or a thick wall rod pump.Puyang Zhongshi Group manufacture these insert rod pumps according to different requirements of customer’s.

    There are seven major components for downhole rod pumps: standing and traveling valves, plunger, barrel, seating assembly, pull tube or valve rod (for insert pump), and the fittings that hold the assembled pump together.


    Technical parameters for API 11AX pumps:


    12345

    Type of Pump


    Letter Designation
    Metal Plunger PumpsSoft-Packed Plunger Pumps

    Heavy-Wall Barrel


    Thin-Wall Barrel


    Heavy-Wall Barrel


    Thin-Wall Barrel

    Rod Pumps
    Stationary Barrel, Top AnchorRHARWARSA
    Stationary Barrel, Bottom AnchorRHBRWBRSB
    Stationary Barrel, Bottom AnchorRHTRWTRST
    Tubing PumpsTH--TP--

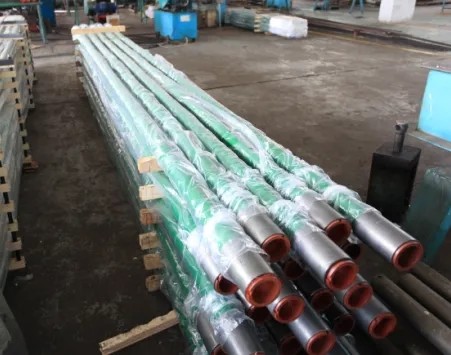

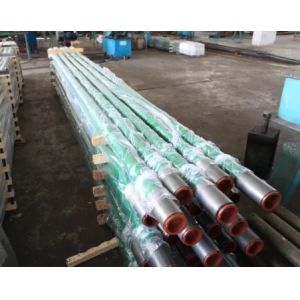

    Pump delivery photo:


    Quality Tungsten Carbide Spray Metal Plunger Sucker Rod Pumps for sale
