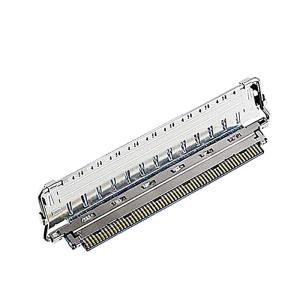

CABLINE®-CA II PLUS 60pin 20788-060T-01 20680-060T-01 3204-0601
20789-060T-01 20790-060E-02 lvds micro coax cable
Fully-shielded with mechanical lock, High-data-rate transfer (20
Gbps/lane), 0.4 mm pitch,
Horizontal mating type micro-coaxial connector
ZenShield® fully-shielded with multi-point grounds to prevent EMI
leakage
Mechanical locking cover prevents incomplete mating and
back-out/un-mating
Wider space for vias on PCB (for Non-Via-In-Pad type PCB trace
design)
CABLINE-CA II PLUS RECOMMENDED PART NUMBERS
| Part Number Description | Pin count | Part Number |
| PLUG FOR CABLE ASSEMBLY | 60 | 20788-060T-01 |
| Plug parts | PLUG HOUSING | 60 | 20680-060T-01 |
| PLUG SHELL | 60 | 3204-0601 |
| PLUG LOCK BAR | 60 | 20789-060T-01 |
| RECEPTACLE | | 60 | 20790-060E-02 |
sino-tech produces various cable assemblies in the field of drones,
AR/VR, AR, VR and other micro coaxi
al cables, radar/navigation, cameras, security monitors, facial
recognition payment, and has established c
ooperative relationships with customers. We have a strong and
experienced technical team that can provi
de you with efficient solutions.
Q1. Is it a factory?
A:Yes,we have more than 15 years of design and manufacturring
experience!
Q2. Is there any certification?
A:Yes,there are IS09001,ISO14001,TS16949,ISO13485,UL CERIFIED.
Q3. What is our specialty?
A:We can design products on the application.
Q4. Do you accept OEM/ODM orders?
A: Yes, we accept OEM/ODM orders. For oem orders, moq is 100pcs.
For ODM orders, moq
1000PCs. Mould fee will be charged according to design.
Q5. How long will it need for completing an order?
A: For small order and products in stock, it will take less than 3
days for preparation and delive
ry, and shipment time depends on clients' choice, fastest 7 days
and longest 1 month.
For big order, as we need to confirm all things include materiel
preparation, production, this pro
cedure will take 5 to 21 working days according to order quantity,
testing 1 to 3 working days, a
nd finally, packing 1 day, so fastest 7 days and longest 25 days
without shipment.
Q6. As long term clients, what other service we can get?
1. New product will be offered with order, so you can see if it is
potential product in the market a
nd promote it, and you will have the right to resell the product in
your district.
2. Additional fee discount, cheaper price on purchasing products at
smaller quantity.
3. We can offer assist on promotion images, and make images with
clients' logo
Q7. How long is warranty for the 20788-060T-01 cable, and if
defective or faulty, how to protection your benifits?
A: All our cables are sold with 12-36 months warranty, and for big
quantity order, we will offer 0.3%
to 0.5% backup for defective sent with order, so if you order
1000PCs, that means you can get 100
3pcs with backup. If you get faulty more than 5pcs, and less than
0.1%, please contact sales and
offer images, and we will solve your problem in the way of
replacing with new order or refund.
Q8. Do you accept free sample order?
A: Yes, sample order is supported, some samples can be offered free
exclusive of shipment freight.
