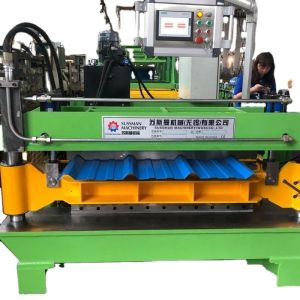

R Panel Corrugated Double Layer Roll Forming Machine For Tile 12m/Min

Name: R Panel Corrugated Double Layer Roll Forming Machine For Tile 12mMin
Brand: Sussman
Price: 30000 USD

Ask Lasest Price
Brand Name :	Sussman
Model Number :	DL-RP-T
Certification :	ISO 9001 SGS
Price :	USD 30000 per set
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	5 sets per month
Delivery Time :	50 days

Add to Cart

R Panel and Corrugated Double Layer Roll Forming Machine; Tile Macking Roll Forming Machine

R Panel profile drawing is the hottest sale in America. It is widely used in roofing system.

Number	Items	UnitType	RF-DL
1	Steel Thickness	mm	0.4-0.8mm, coil width 1220
2	Forming Speed	m/min	0-12m/min
3	Roller stands	stand	26 stands bottom layer; 18 stands top layer
4	Roller Material	mm	45# steel, coated with chrome quenching
	Shaft material and diameter	mm	Ф76 45# steel, coated with chrome
5	Main Motor Power	Kw	7.5
6	Hydraulic cutting Power	Kw	4
7	Hydraulic pressure	Mpa	12
8	Power Supply		380V, 50HZ,3 phase
9	Tolerance	mm	1.5
10	Material of cutting		Cr12mov HRC60-62
11	Control system		PLC with touch screen
12	Machine net weight	T	10

Profile Drawings

Technological Process

Uncoiling—Feedingwithguide—Roll forming—Cutting—Products collecting

Machine List
