Ship Launching Inflatable Roller 8 Layers Marine Rubber Airbag

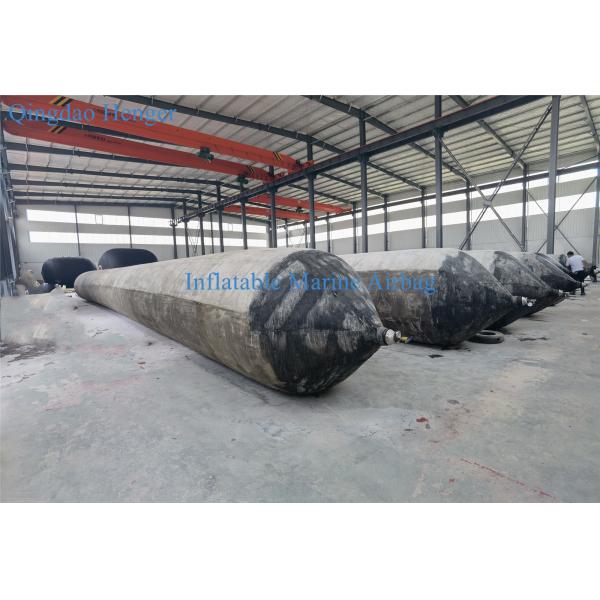

Marine Rubber Airbag Introduction
Marine Rubber Airbag is China independent intellectual property
rights of innovative products, the products are mainly applied to
ship launching and landing, weight lifting, handling, installation
of underwater buoyancy aid etc. Nowadays, Marine rubber airbags are
widely used in the world. The Products are less limited by space,
no large mechanical equipment, can shorten the working period and
save the unnecessary cost. Through years of development practice,
marine rubber airbag is become more safety, effective and green
environmental protection.
Marine Rubber Airbag Specifications
| Diameter(m) | Effective Length(m) | Layer | Pressure(MPa) |
| 1.0 | 10 | 5~6 | 0.07~0.10 |
| 1.0 | 12 | 5~6 | 0.07~0.10 |
| 1.0 | 15 | 5~6 | 0.07~0.10 |
| 1.2 | 10 | 5~6 | 0.08~0.12 |
| 1.2 | 12 | 5~6 | 0.08~0.12 |
| 1.2 | 15 | 5~6 | 0.08~0.12 |
| 1.5 | 12 | 5~8 | 0.08~0.16 |
| 1.5 | 15 | 5~8 | 0.08~0.16 |
| 1.5 | 18 | 5~8 | 0.08~0.16 |
| 1.5 | 20 | 4~8 | 0.08~0.16 |
| 1.5 | 24 | 5~8 | 0.08~0.16 |
| 1.8 | 12 | 5~8 | 0.08~0.15 |
| 1.8 | 15 | 5~8 | 0.08~0.15 |
| 1.8 | 18 | 5~8 | 0.08~0.15 |
| 1.8 | 20 | 5~8 | 0.08~0.15 |
| 1.8 | 24 | 5~8 | 0.08~0.15 |
| 2.0 | 18 | 6~10 | 0.08~0.18 |
| 2.0 | 20 | 6~10 | 0.08~0.18 |
| 2.0 | 24 | 6~10 | 0.08~0.18 |
| 2.5 | 18 | 7~10 | 0.07~0.13 |
| 2.5 | 20 | 7~10 | 0.07~0.13 |
| 2.5 | 24 | 7~10 | 0.07~0.13 |
| Diameter | Working Pressure | Working height | Bearing capacity per unit length |
| KN/m | Ton/m |
| D=1.0m | 0.20Mpa | 0.6m | 125.76 | 12.82 |
| 0.5m | 157.16 | 16.02 |
| D=1.2m | 0.17Mpa | 0.7m | 133.61 | 13.62 |
| 0.6m | 160.3 | 16.34 |
| D=1.5m | 0.13Mpa | 0.9m | 112.63 | 12.5 |
| 0.8m | 143.03 | 14.58 |
| 0.7m | 163.43 | 16.66 |
| D=1.8m | 0.11Mpa | 1.1m | 120.96 | 12.33 |
| 1.0m | 138.22 | 14.09 |
| 0.9m | 155.59 | 15.86 |
| 0.8m | 172.85 | 17.62 |
| 0.7m | 190.22 | 19.39 |
| D=2.0m | 0.10Mpa | 1.2m | 125.76 | 12.82 |
| 1.1m | 141.46 | 14.42 |
| 1.0m | 157.16 | 16.02 |
| 0.9m | 172.85 | 17.62 |
| 0.8m | 188.64 | 19.23 |
Marine Rubber Airbag Application

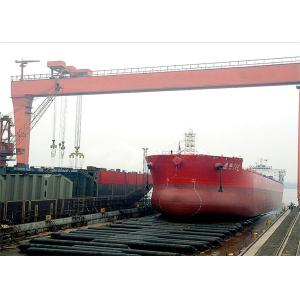

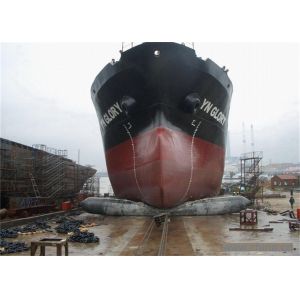

- Ship Launching & Upgrading
With more than 20 years development in China, marine rubber airbag
is proved to be the most reliable and stable technique for ship
launching & upgrading. It is applicable from tons of flat board to
ten thousand tons of huge ship. Meanwhile, marine rubber airbag is
also widely acknowledged by foreign dockyards, shipyards,
port/harbour construction companies. Ship launching & upgrading
technique with marine rubber airbag is also highly promoted in the
markets, such as America, Europe, Southeast Asia.
Marine rubber fend could be applied to caisson lifting, launching,
moving and transporting in port constructing projects
Because marine rubber airbag has buoyancy force and load-bearing
capacity, it is also widely used in sunken vessel salvage and
Buoyancy Aid.
Marine Rubber Airbag Advantages
1. Long lifespan
2. Movable and reusable
3. Saving investment costs
4. Saving labor and time
FAQ
1. Minimum Order Quantity ( MOQ): 1 Pcs
2. Delivery time: 7 days ( depends on the quantity of order)
3. Certificates: ISO 9001:2008, CCS, SGS, BV etc.
4. Production standard: ISO14409 & GB/T 3795-1996
5. Expected lifespan: 10-15 years.
6. Warranty period: 24 Monthes
7. Factory direct selling of Marine rubber airbags Please inquiry
our salespersons for the best price.
