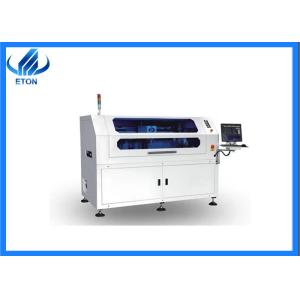

LED lighting making machines suitable for max 1.5M PCB board smt
full automation printer machine
Features
(1) the governor motor drive scraper, combining precision linear
guide, ensure the printing precision;
(2) printing scraper can rotate 45 degrees of fixed upwards,
printing plate and scraper cleaning and replacement;
(3) the scraper holder can adjust forward and backward, to select
the suitable printing position;
(4) combined printing platen, has a fixed groove and positioning
PIN, easy installation and adjustment, it is used for single and
double panel printing;
(5) steel bar-mesh mobile school edition way, combined with the
printing machine (PCB) XYZ calibration adjustment, convenient and
quick.
(6) can be set unidirectional and bidirectional multiple printing
methods
Machine parameter
Model Item | ET-F1500 |
| Screen Frames Min Size | 1100X300mm |
| Screen Frames Max Size | 1800X750mm |
| Screen Frames Thickness | 25~40mm |
| PCB Min Size | 80X50mm |
| PCB Max Size | 1500X350mm |
| PCB Thickness | 0.4~6mm |
| PCB Warpage | ＜1% |
| Transport Height | 900±40mm |
| Transport Direction | Left-Right;Right-Left;Left-Left;Right-Right |
| Transport Speed | Max 1500mm/S Programmable |
Our advantage
1. We have our own industrial park, covering an area of 520,000
square meters.
2. We have been in this business for over ten years.
3. We have office and local engineer in Egypt, Turkey, India,etc.
4. We can control it remotely, give machine a free upgrade
Certificates
We have CCC, CE, SIRA,etc.
Market
Our products are exported to more than 20 countries and regions,
including South Korea, India, Vietnam, Tunisia, Egypt, Russia, etc.
It is popular in many countries and has gained many big clients.
Well regarded.
Package
In terms of packaging, we generally use vacuum wooden cases for
packaging, which can prevent moisture and protect the machine
itself in the process of maritime transportation. Moreover, all the
products purchased by customers are placed in one wooden case, so
that customers can receive the purchased equipment at the same time
and install and produce them in time.
Service
- Top R&D team
- Fast delivery
- 100% quality control
- Timely premium after-sales service
FAQ
Q: Is hard to use these machines?
A: No, not at all. All our machine are automatic, you just type in
the program and it will work. The operation is relatively simple
and I believed that certainly learn in two days.
Q: if there is a problem with the machine,can it be repaired?
Of course, the machine failure rate is 0.001 , and in addition to
the warranty period, we also provide you with free maintenance 1-2
times a year.
Q:What is the difference between semi-automatic production line and
full-automatic production line?
A:In short, fully automatic production lines are expensive, but
require less labor. Semi-automatic production line is more
affordable, but the labor will be more than the automatic line
Q: About technical offer
A: As for machine operation, we will arrange engineers to go to
your factory for installation and teaching after you buy our
machines.
If you have engineers who have been involved in the installation of
SMT equipment, we can teach you how to install it online.
