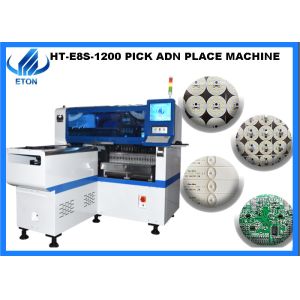

DOB bulb Electronic feeder feeding system multifunctional pick and place machine

DOB bulb Electronic feeder feeding system multifunctional pick and place machine

1. Mounter Introduction

Pick and place machine, also known as "Mounter" and "surface mount system", is a kind of equipment configured after dispensing machine or screen printing machine. It is a kind of equipment that accurately places surface mount components on PCB pad by moving the mounting head. It is used to realize high-speed and high-precision placement of components. It is the most critical and complex equipment in the whole SMI and production.

2.Introduction to structure and function of Mounter

• Frame is the foundation of the machine. All transmission, positioning organization and feeder are firmly fixed on it. Therefore, it is necessary to have satisfactory mechanical strength and rigidity.
• PCB transmission and bearing organization - the transmission organization is an ultra-thin belt transmission system placed on the guide rail. Its function is to send the PCB to the predetermined position, and then send it to the next process after pasting.
• Drive system - it is the key organization of the mounter and the primary index to evaluate the accuracy of the mounter. It includes XYZ transmission layout and servo system. Its functions include supporting the movement of the mounting head and supporting the bearing plane of PCB.

3. Machine parameter

3.Features

• Mounting components: LED chip, resistor, capacitor, IC, lens, shaped components, etc.
• Component: min.size 0402 max.height 15mm
• Application: power drive, electric board, lens, DOB, linear bulb, household appliance, etc.

4.Application

6.Package

7.Service

8.FAQ

Q: Why do you choose our product?

• our product quality is guaranteed, and we have overseas local engineers, can arrange door to door installation.
• Software lifetime free upgrade
• Free installation and training

Provide 1-2 times a year free for machine repair, after the warranty period.

Q: This is the first time I use this kind of machine, is it easy to operate?

A: There is English manual or guide video that show you how to use machine. If you still have any question, please contact us by e-mail/ Skype/ phone/ wechat/ online service.

Q:What is the difference between semi-automatic production line and full-automatic production line?

A:In short, fully automatic production lines are expensive, but require less labor. Semi-automatic production line is more affordable, but the labor will be more than the automatic line

Q: About technical offer

A: As for machine operation, we will arrange engineers to go to your factory for installation and teaching after you buy our machines.

If you have engineers who have been involved in the installation of SMT equipment, we can teach you how to install it online.

Shenzhen ETON Automation Equipment Co.,LTD. was establised in 2007,possess more than 300 staff at present and cover an area of more than 20000 square meters,is the largest leading manufacturer of high-speed pick and place machine and SMT machine for LED light production and Electronic field,which is also a high-tech enterprise and top brand well-known in China with good reputation.


  ETON invented the fastest automatic pick and place machine with speed 150000CPH,which is the fastest machine in the world,awarded many global first technology patent,also invented the global first machine for any length of 1M 5M 50M 100M 500M flexible LED strip,won large market in USA,KOREA,INDIA,GERMANY,EGYPT,TURKEY,VIETNAM,TUNISIA ETC.


  Since the establishment of the company, with the green and energy-saving development trends of global illumination and rapid development of LED industry and its requests for the manufacturing craft, ETON has seized the opportunity and risen quickly, they have independently researched、designed、manufactured a set of quicker、more stable、more optimal LED fully automatic, high speed, energy-saving chip mounter and multi-function chip mounter, which have been highly recognized in the industry for its absolute advantage in speed, stability and capacity, at the same time, it have solved the offset and fling material issues when producing 1.2 meters, 1.5 meters lamp plates and wireless long FPCB and shaped component at a high speed. ETON has passed ISO9001 quality management system certification and has obtained more than one hundred of patents and certificates, including for utility model, personal invention, software copyright and so on. We have established cooperative relationship with well-known enterprises at home and abroad, such asMLS,OPPLE,NVC,Navigation,PAK,ETI,FSL, Home Lighting,Yangguang Lighting, XSY, Sansi, India RK, India SURYA, Vietnam RANGDONG, Egypt FUTEK etc..

  Our products have been exported to more than 20 countries and regions, including Korea, India, Vietnam, Tunisia, Egypt, Turkey and so on. Meanwhile, the company has created customer service center, where records every customer and the sale of every set of machine permanently. Its existence can timely solve customer’s questions when using it, which truly provides the convenience and assurance for our customers.

  “High efficiency” “High quality” and “Stability” are the core technology of ETON,technology innovation and strict quality control,with excellent service,ETON has grown into the outstanding worldwide brand of SMT machine with good reputation.
