| Brand Name : | ETON |
| Model Number : | HT-F7S |
| Certification : | CE,CCC,SIRA |
| Price : | EXW USD 45000-67500/sets |
| Payment Terms : | T/T |
| Supply Ability : | 50 sets per mouth |
| Delivery Time : | 30 days after deposit |
| PCB Length Width | Max:1200*330mm Min:100*100mm |
| No. of Camera | 5 sets ( Digital camera) |
| Vision alignment, MARK correction | |
| Repeat Mounting Precision | ±0.02mm(Repeat precision) |
| Mounting Height | ≦5mm |
| Mounting Speed | 150000~180000 CPH |
| Components | LED 3014/ 3020/ 3528/ 5050 and capacitors, resistors, bridge rectifiers, etc. |
| Components Space | 0.5mm |
| Power | 380AC 50 HZ |
| Power Consumption | 6kw |
| Operating Environment | 23℃±3℃ |

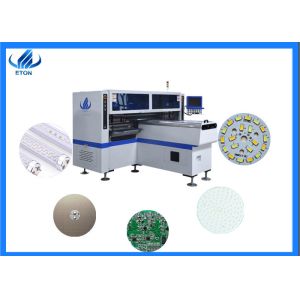

Apply to the 0.6 M, 0.9 M, 1.2 M rigid PCB and 0.5 M, 1 M LED
flexible strip. Producing with 2~4 types of materials with high
capacity. available for board with any proportion of LED chip and
resistor.
Two mounting modules, 18 nozzles for each mounting part, part A and
part B can be mounted separately or synchronously.
Calibration automatically, high precision, available for RGB.
Exclusive patent technology: Group to pick and group to mount.

Pre-Consultation: provides professional SMT solutions for the full
line.
Factory Warranty: One-year warranty factory service.
Installation: On-site installation and commissioning, to ensure
smooth production.
Technical Training: provides professional training from Level 1 to
Level 3.
Technical Support: provides 7 * 24 technical support.
Software Upgrade: offers lifetime free software upgrades for all
products Provide latest information about technology and equipment.

|
