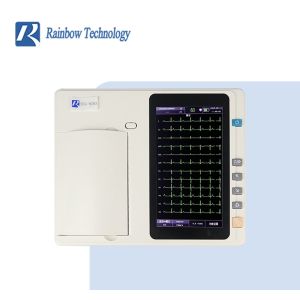

Digital 3 Channels 7 Inch Color Screen Medical Ecg Machine Electrocardiogram

Digital 3 Channels 7 inch Color Screen Medical Ecg Machine Electrocardiogram

Features:

* 7 inch high resolution color touch screen

* 12-lead simultaneous acquisition and display

* ECG Automatic measurement and interpretation function

* Complete digital filters, resisting baseline drift, AC and EMG interference

* Compact and lightweight design

* Support USB flash disk and micro SD card to extend memory

* Software upgrade via USB/SD card

* Built-in rechargeable Li-ion battery

Power Supply	AC	Rated voltage＝90V-240V
		Rated frequency＝50Hz/60Hz
		Rated power＝35VA
	DC (Built-in rechargeable li-ion battery)	Rated capacity＝2200mAh
		Rated voltage＝10.8V
		Discharge End Voltage ≥9V
		Recharge mode:CC/CV
		Recharging current(standard)＝0.2C5A (440mA)
		Recharging voltage(standard)＝(13±0.1V)
		Maximum continuous charge current＝2200mA
		Max. Continuous Discharge Current＝2200mA
		Cycle life≥300 times
	Power dissipation	35VA(Max.)
	Fuse specification	T200mA 250V Ø5×20

Optional two kinds of version shape

Packing list:

Name	QTY	Name	QTY
ECG machine	1	Fuse	2
ECG cable	1	Operation manual	1
Limb electrodes	4
Chest electrodes	6
Grounding wire	1
Print paper	1 roll
Power line	1

ECG Mainframe	Input mode	Floating, defibrillation protection,pacemaker pulse rejection
	Lead	12 standard leads,Auto-switching leads
	Operation mode	Simultaneously 12 channel
	A/D switching	12 / 16/ 24
	Measurement range	> ±5mV
	Time constant	≥ 3.2s
	Frequent response	0.05Hz ~ 150Hz
	Sensitivity	2.5,5,10,20 (mm/mV)
	Input impedance	50M(10Hz)
	Input circuit current	≤ 50nA
	Input voltage tolerance	< ±5 mVpp
	Calibrating voltage	1mV±3%
	Noise level	< 15Vp-p
	Inter-Channel Interference	≤ 0.5mm
	Patient current leakage	< 10A (220V-240V/50Hz)
	Patient auxiliary current leakage	< 0.1A (DC)
	Insulation strength	4000V rms
	Filter	AC filter ON/OFF
		Baseline drift filter 0.05/0.15/0.25/0.5/ADP
		EMG filter 25Hz,35Hz,OFF
		Low-pass filters 150Hz/100Hz/75Hz
	CMRR	>100dB
