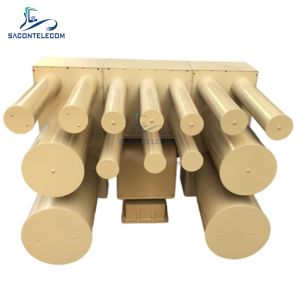

10KM Long distance UAV Drone Jammer Directional Jammer Anti Drone
Jamming system
Description:
Sacontelecom is the leading manufacturer of all kinds of wireless
signal jammers in China.
This anti drone jamming system is designed for use in the military.
It includes including cloud platform and jammer equipment. On the basic of its
high power, the distance can be up to 8km long. This UAV drone
signal jammer is a outdoor type, it is waterproof with IP66.
Jamming 400mhz, 800mhz, 900mhz, GPS, wifi 2.4g and wifi 5.8g.
Frequencies can be customized.
Application:
It can be used in oil and gas reservoirs, chemical industry parks,
prisons, government offices and other important places, and it can
also be used for large-scale activities to prevent drone invasion.
Specifications:
| Name | Performance Index |
| Coverage | ≥8km |
| Interference frequency band | 430-470MHz
830-940MHz
1200-1300MHz
1560-1620MHz
2400-2500MHz
5725-5850MHz |
| Beamwidth / gain | 430-470MHz : >40°/6dBi
800-1620Mhz: >30°/8dBi
2400-2450MH >40° /11dBi
5725-5850MHz: >40°/11dBi |
| Frequency power range | 430-470MHz:53dBm
800-1620Mhz:53dBm
2400-2450MHz:50dBm
5725-5850MHz:50dBm |
| Type of transmitting antenna | helical antenna |
| Maintenance | With power-on self-inspection and fault reporting function |
| Spin velocity | Level 0.01°~30° / S;
Pitch of 0.01°~10° / S (continuous variable speed) |
| Angle of rotation | Horizontal 360° for continuous rotation;
Pitch pitch-10°~70°; |
| Presetting bit | 200 |
| Positioning accuracy | ±0.1° |
| Repeatability precision | ±0.1° |
| Presetting bit | support |
| CI | RJ45 |
| Complete power consumption | 5,000 W (including cloud platform and jammer) |
| Weight | 150kg (including cloud platform and jammer) |
| Carrying mode | Top load / side load |
| Driving mode | Turbine worm drive |
| Levels of protection | IP66 |
| Work, temperature | -20ºC~+70ºC |
| Storage temperature | -40ºC~+75ºC |
| Relative humidity | Average monthly maximum relative humidity is 95% (average monthly
minimum temperature is 25ºC) |
| Above sea level | ≤2500m |
| Power supply, conditions | 220V 50Hz |
| Vibration and impact | GJB150.16A -2009;GJB150.18A-2009 |
FAQ:
1) Are you a factory or a trade?
We are a lead factory of mobile signal jammers in China.
2) What's your MOQ? Is sample available?
Yes. Sample is available with charge.
3) What's shipping method?
DHL, UPS, Fedex, TNT, EMS, Aramex and etc.
4) Payment term
TT via Bank, Western Union, method, Paypal.
5) Warranty
12 months after shipment date.
6) Delivery time
Always 3 working days after receive payment.
7) How long can I get it?
8-12 days after shipment.
