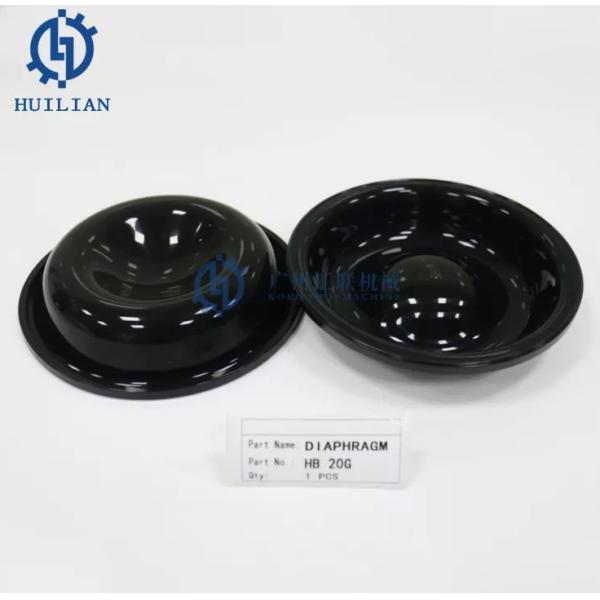

HB20G HB30G Rubber Diaphragm Excavator Rock Breaker Hammer Membrane
For Furukawa
| Product Name | Hydraulic Breaker Hammer Diaphragm |
| Model | HB20G HB30G |
| Size | Standard Size |
| Material | HNBR |
| Color | Black |
| AppliCATEEEEEEEEEEEEion | Hydraulic Dril Breaker Hammer Acuumulator |
| Hardness | 70degree-85degree |
| Pressure | 85~125Mpa |
| Temperature | -35~135°C |
Features of brake chamber cup
1. Wear resistance, oil resistance, high temperature resistance
2. Using high-quality raw materials, strong sealing
3. Smooth surface without burrs
Related Brand
Atlas Copco:
MB500, MB700, MB800, MB1000, MB1200, MB1600, MB1700
,HB2200,HB3000,HB4200, PB110, PB160, PB210, PB310, PB420, PB530,
SB50, SB52, SB100, SB100MK2, SB102, SB110, SB150, SB150MK2, SB152,
SB200, SB202, SB300, SB302, SB450, SB552,SBC60, SBC115, SBC255,
SBC410, SBC610, SB 650, SBC800, SBC850,TEX30H, TEX75H, TEX80H,
TEX100H, TEX110H, TEX180H, TEX250H, TEX400, TEX600-900H, TEX1400H,
TEX1800, TEX2000, TEX1800H, TEX2000H,HBC1100 - 1700 HD, HBC2500,
HBC4000, HBC6000
Rammer:
S18,S21,S22,S23,S25,S26,S27,S29,S52,S54,S55,S56,S82,S83,S86
E63, E64, E,65,E66, E66 N, E68,G80, G90, G100, G110,
G120,G130,M14,M18
Indeco:
HB5, HB8, HB12, HB19, HB27,HP200, HP350, HP500, HP600, HP700,
HP900, HP1200 ,MES121, MES150, MES180, MES181, MES200, MES250,
MES300, MES301, MES350, MES351, MES450, MES451, MES521, MES550,
MES553, MES601, ME621 MES,650, MES1050, MES1200, MES1500, MES1800,
MES1750, MES2000, MES2500, MES3000, MES3500, MES5000, MES7000, ME
8500, UP181, UP200, U 301, UP350, UP351, UP462, UP521, UP550,
UP553, UP601, UP621, UP650, UP1200
Arden:
AB100, AB150, AB210, AB280, AB350, AB450, AB550, AB1050, AB1850
Berco:
BB42, BB52, BB62, BB70, BB80
Krupp:
HM45, HM55 (50), HM51, HM60V, HM75 (60), HM61, HM85, HM90V, HM100,
HM110, HM130, HM131, HM135,HM140V, HM170, HM185, HM190V, HM200,
HM220, HM230, HM301, HM305 (300), HM400, HM401, HM405,HM350V,
HM551, HM555, HM560, HM560CS (550), HM560V, HM580, HM600, HM601,
HM680, HM720CS HM(710),HM711, HM715,HM 720, HM720V, HM712, HM700,
HM701, HM702, HM705, HM706, HM780 V, HM800, HM900, HM901, HM902,
HM960CS (950), HM960V, HM1000V, HM1200, HM1201, HM1205, HM1500,
HM1500CS, HM1500V, HM2100, HM2300V,HM2500(2200), HM2500V, HM2600
Okada:
OKB302 A, OKB303, OKB305, OKB312 B, OKB316,TOP35, TOP60B
Toku:
TNB08M, TNB1E, TNB1M, TNB2E, TNB3E, TNB3M, TNB4E, TNB5E, TNB5M,
TNB6E, TNB6,TNB5E, TNB7E, TNB8E, TNB10E,TNB 14E, TNB16E, TNB22E,
TNB100,TNB150,TNB190,TNB230,TNB310,TNB400
Toyo:
THBB50, THBB51, THBB71, THBB101, THBB301, THBB401, THBB801,
THBB1101, THBB1400, THBB 1600, THBB2000,THBB31,THBB201,THBB3000
Furukawa:
F1, F2, F3, F4, F5, F6, F9, F12, F19, F20,F22, F27, F 30,F35, F45,
F70
HB05R, HB1G, HB2G, HB2,5G, HB3R, HB100, HB3G, HB200, HB5G, HB8G,
HB10G, HB700, HB15G, HB20G,HB30G, HB40G, HB50G
NPK:
E12-X, E15-X, E18-X, E24-X, E106, E200, E201,E 202, E203, E204,
E205, E206, E207, E208,E 210A, E212, E213, E213A, E215, E216, E218,
E224, E220, E225
GH06, GH07, GH1, GH2, GH3, GH4, GH6, GH10, GH15, GH18
H06-X, H08-X, H1-XA, H2-XA/XE,H 2-X, H3-XA/XE, H4-X/XE, H5-X, H6-X,
H7-X,H 8-X, H8-XA, H10-X, H10-XB, H10-XE, H12-X, H12-XE,H16-X,
16-XE
Soosan:
SB10, SB20, SB30, SB35, SB40, SB50, SB60, SB81, SB121
Parts List
| ITEM | PART NAME | Q’TY | PART NO. |
| 1 | Breaker body | 1 | |
| 2(3-5) | Bushing,complete | 1 | 3315302980 |
| 3 | Bushing | 1 | |
| 4 | Scraper ring | 1 | 3315303000 |
| 5 | O-ring | 4 | 663210823 |
| 6 | Stop ring | 1 | 3315302800 |
| 7 | Plug | 2 | 686100009 |
| 8 | Plug | 7 | 686644207 |
| 9 | Water nozzle | 2 | 3315395200 |
| 10 | Lock pin | 1 | 3315319100 |
| 11 | Spring pin | 1 | 108169129 |
| 12 | Tool retainer | 2 | 3315305900 |
| 13 | Lock buffer | 1 | 3315141900 |
| 14 | Plug | 4 | 686371801 |
| 15 | Coil spring | 1 | 3315303500 |
| 16 | Diaphragm support | 1 | 3315303201 |
| 17 | Diaphragm | 1 | 3315303300/3315416300 |
| 18 | Diaphragm cover | 1 | 3315303100 |
| 19 | Hexagon socket screw | 10 | 211196544 |
| 20 | Plug | 1 | 686371805 |
| 21 | Seal ring | 1 | 3315329002 |
| 22 | 0-ing | 1 | 663212000 |
| 23 | Charge valve | 1 | 3315366000 |
| 24 | O-ing | 1 | 663211400 |
| 25 | Parallel pin | 1 | 101414000 |
| 26(27-30) | Pressure relief valve,complete | 1 | 3315365800 |
| 27 | Pressure relief valve | 1 | |
| 28 | O-ring | 1 | 9125621100 |
| 29 | o-ring | 1 | 663210421 |
| 30 | Back-up ring | 1 | 661200401 |
| 31 | Control valve | 1 | 3315312100 |
| 43(44-46) | Restrictor standard,complete | 1 | 3315369655 |
| 44 | Restrictor,standard | 1 | |
| 45 | O-ring | 1 | 663210421 |
| 46 | O-ring | 1 | 9125621100 |
| 47 | Wiper | 1 | 665909949 |
| 48 | Piston rod seal | 1 | 665070134 |
| 49 | Beanseal | 2 | 663990027 |
| 50 | Liner | 1 | 3315302500 |
| 51 | o-rin | 7 | 663211303 |
| 52 | O-ring | 1 | 663211506 |
| 53 | Piston | 1 | 3315302400 |
| 54 | Piston rod seal | 1 | 665070133 |
| 55 | Back head | 1 | 3315303400 |
| 56 | Hexagon head screw | 8 | 147155503 |
| 57(58-59) | Check valve,complete | 1 | 3315244881 |
| 58 | Check valve | 1 | |
| 59 | Valve rubber | 1 | 3315280800 |
| 60 | Base plate,option | 1 | 3315307700 |
| 61(62-63) | Set of screws,complete | 1 | 3315323990 |
| 62 | Screw | 14 | |
| 63 | Nut | 14 | |
