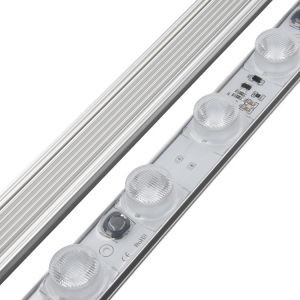

LED Lighting for SEG Fabric Illuminated Wall Frame
Benefits of Light Bars for LED Fabric Frame
1. Best optical lens Light Bars for LED Fabric Frame
We are proud of high power led light bar optical lens, 15x45° beam
angle, it emits the best lighting in shadow box sign.
2. IP67 Waterproof
IP67 outdoor sign light suitable for two face outdoor LED sign.
3. Easy install in outdoor LED light box sign
IP67 type: You can connect LED Power Supply with DC quick
connectors, fix LED light bar waterproof with mouting clips to the
frames of double sided LED light box outdoor.
4. Genesis Photonics Lamps
Our LED light bar outdoor powered by Genesis SMD 1818, all approved
UL, CE, ROHS certificates, guarantee 5 years warranty.
5. 1.6mm Aluminum PCB Board
We use 1.6mm thick aluminum board for waterproof LED light bars ,
to make sure good quality products and better heat sinking in LED
outdoor advertising signs.
6. High Lumen outdoor LED bar lights
Standard LED bar light outdoor with 4440lm, suitable for 3-5m
emitting distance outdoor light box signs.
LED Light Bar Distributor
We are proud of OEM & ODM services for LED bar lights outdoor since
2016, the first factory to develop light led bar in China.
Top distributors & outdoor light box signs manufacturers in Europe
& USA speak highly our home led light bar.
We always stock linear led light bar materials, standard products
can ship out in 7days.
What is Light Bars for LED Fabric Frame?
Light Bars for LED Fabric Frame also be defined shadow box LED
lighting strips,sign box LED lighting,outdoor signs with lights,
LED modules for signs.
Various 1 meter LED light bar available.
Different beam angles: 15x45°, 10x30°, 10x60° good quality LED
light bars for LED Fabric Frame
Different LEDs: SMD 3030, SMD 3535, SMD 1818 LED Light Bars for
Fabric Frame Light Box
Different sizes: 1m, 0.5m, 0.3m, 0.4m etc
Different colors: Warm white, Natural White, White, Cold White,
RGB, RGBWW, RGBW LED light bar made in china.
Different voltage: 12 & 24 volt LED light bars
Different waterproof grade: IP20 IP67 optional
outdoor bar LED lighting create even illumination in advertising
sign boxes, saving labor cost in installation for led light boxes.
Light Bars for LED Fabric Frame Specification:
| Model | ADS-E1818-18 |
| LED type | SMD1818 LED |
| LEDs per metre | 18LEDs |
| Operating voltage | DC24V |
| Watts per metre | 48W |
| Colour temperature | 3000K/4000K//6500K |
| IP rating | IP67 |
| Length | 940mm |
| Driven Mode | Constant Current |
| Beam angle | 15x45° |
| PCB Width | 25mm |
| Warranty | 5 Years |
| Certifications | UL/CE/RoHS/FCC |
| Dimmable | 0-100% dimmable by LED strip light dimmer |
Light Bars for LED Fabric Frame Application:
• Decoration Lightings
• Exhibition Light box
• Showcase Light
• Railway Station Light Box
• Menu Sign Light boxes
• Emergency Hallway Lighting
• Billboard
• Car and Motorcycle Decorative Lighting
• Mall Advertising Light Box
Light Bars for LED Fabric Frame FAQ
Q: Which lighting project use your LED light bars?
Our LED light bars used in Olympic Games light boxes, Coca Cola
poster box, Metro LED light frames, Airport LED fabric frame, etc.
Q: How to install LED light bars in double-sided fabric frame
displays?
Step 1 : Caculate LED light bars quantity and how much LED power
supply
Step 2: Clean the surface of aluminum frame light box
Step 3: Install LED light bars to two sides or four sides of
lightbox
Step 4: Connect LED power supply with LED bar module
Q: How many piece (1m LED bar) can connect in parallel?
You can connect maximum 3pcs LED light bar.
Q: Can I cut LED light bars?
Yes, you can cut LED light bars at the soldering point.
DC12V edge lit LED bar can be cut each 1LED
DC24V edge lit LED bar can be cut each 2LEDs
