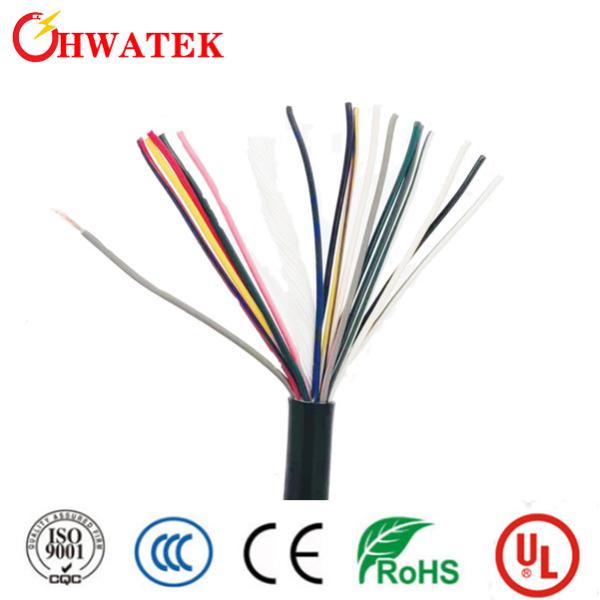

18Cx24AWG, Shielded, ATC, Grey, FRLSH Cable custom-made Cable
Product Description
Application: Internal wring or external interconnection of electronic equipment.
Product character:
1) Nominal voltage: 300V
2) Temperature Range: 105ºC
3) Conductor: Tinned plated copper
4) Insulator: XLPE
5) Testing voltage: 300V
6) Colours: 1.white 2.brown 3.green 4.yellow 5.gray 6.pink
7.blue 8.red 9.black 10.violet 11.gray/pink 12.red/blue
13.white/green 14.brown/green 15.white/yellow
16.yellow/brown 17.white/gray 18.gray/brown
7) Use: Internal wiring of vechiles electrical system.
8) Standard: ISO 6722
UL758 -E258652-20060111-CertificateofCompliance-1....
| Construction |
|
| Conductor | | | Tinned plated copper |
| Cross section | | | 24AWG |
| Construction | | | 7/0.20mm |
| Strand Dia. | | | 0.60mm |
| Insulation | | | XLPE |
| Nom.Thickness | | | 0.30mm |
| Min.Thickness | | | 0.24mm |
| Insulation Dia. | | | 1.20±0.08mm |
| Insulation colour | | | 1.white 2.brown 3.green 4.yellow 5.gray 6.pink |
| | | 7.blue 8.red 9.black 10.violet 11.gray/pink 12.red/blue |
| | | 13.white/green 14.brown/green 15.white/yellow |
| | | 16.yellow/brown 17.white/gray 18.gray/brown |
| Filler | | | Optional |
| Material | | | AL mylar(face out)≥25% |
| Assembly | | | 18C×24AWG+A |
| Braid | | | Tinned copper |
| Size | | | 0.10mm,≥80% |
| Jacket | | | XLPE |
| Nom.Thickness | | | 0.76mm |
| Min.Thickness | | | 0.61mm |
| O.D. | | | 8.30±0.30mm |
| Colour | | | gray |
Conductor : stranded, tinned or bare copper
Construction
Insulation:XLPE
black cores with continuous white numbering (also available in
other colours on request)
GN-YE conductor, 3 cores and above in the outer layer
Shield or Braid: bare or tinned copper braid or Spiral and AL-mylar
Jacket: FRPE
Application
These cables are appropriate for flexible use with medium
mechanical stresses, and free movement without tensile stress or
forced movements in dry, moist and wet rooms but not open air.
Suitable to be used as measuring and control cables in tool
machines,
Standards
RoHS,REACH Compliant,
Technical data
Rated voltage:300V
Rated Temperature: 105℃
Flame: FT2
Voltage withstand test:AC 2.0kV/1min
Properties
Effectively resist electromaganetic interference
Excellent insulation performance
Extensively oil resistant
Flexible
