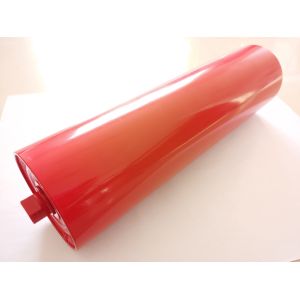

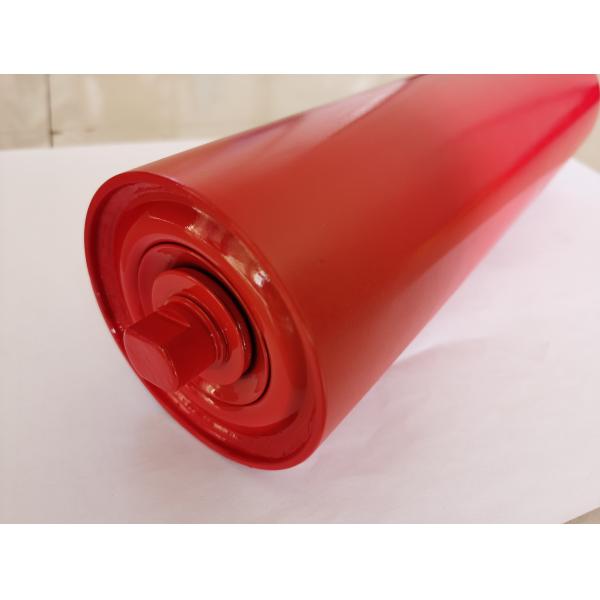

89dia Waterproof Mining Steel Carrying Conveyor Roller Idler
Roller Dia and Type
1. Dia 60, 76, 89, 102, 108, 114, 127, 133, 140, 159, 194, 219
2. Idler Classification: carrying idler and return idler
3. Carrying Idler: troughing idler, transition idler, impact idler,
selt aligning idler
4. Return Idler: flat idler, V type return idler, rubber disc
return roller, spiral return roller
Roller Sturcture and Parts
Seal Structure
1 Non-contact labyrinth structure, forming a complex, winding and
narrow maze between inner and outer seal part.
2 The maze is filled in high quality grease.
3 Water proof and dust proof performance
Bearing
C3 deep groove radial ball bearing which adopts bidirectional seal
structure to improve the performance of water-proof and dust proof.
Shell, shaft and bearing housing
1 Specs of shell and shaft are according to requirements in GB
Standard .
2 The tolerance of radial runout, roundness and straightness, and
appearance are higher than standard in GB.
3 Bearing housing is produced by stretching the cold-rolled plate.
4 Both-sides precise welding between housing and shell to guarantee
the overall strength and stiffness of rollers.
Specifications
Pictures show
