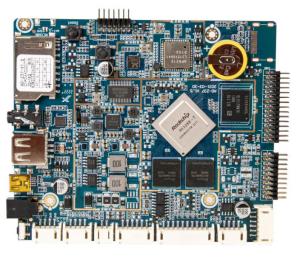

CPU RK3288 Embedded Linux Board LVDS EDP Interface Input RJ45 Interface

    Buy cheap CPU RK3288 Embedded Linux Board LVDS EDP Interface Input RJ45 Interface from wholesalers

    Buy cheap CPU RK3288 Embedded Linux Board LVDS EDP Interface Input RJ45 Interface from wholesalers
    • Buy cheap CPU RK3288 Embedded Linux Board LVDS EDP Interface Input RJ45 Interface from wholesalers
    • Buy cheap CPU RK3288 Embedded Linux Board LVDS EDP Interface Input RJ45 Interface from wholesalers
    • Buy cheap CPU RK3288 Embedded Linux Board LVDS EDP Interface Input RJ45 Interface from wholesalers

    CPU RK3288 Embedded Linux Board LVDS EDP Interface Input RJ45 Interface

    Ask Lasest Price
    Brand Name : ADW
    Model Number : AD-Z37
    Price : Negotiable
    Payment Terms : T/T, Western Union
    Supply Ability : 1,000,000pcs per month
    Delivery Time : 1~3days if have stock, 30 days if out of stock
    • Product Details
    • Company Profile

    CPU RK3288 Embedded Linux Board LVDS EDP Interface Input RJ45 Interface

    CPU RK3288 Embedded Linux Board LVDS EDP Interface Input RJ45 interface


    Overview for Embedded Linux Board:

    The intelligent industrial all-in-one board adopts the Rockchip RK3288 quad-core chip solution and supports Android 8.0 and above systems. Powerful computing power. Support H.265 4K video playback. Rich interface, enhanced power management circuit. It is suitable for intelligent remote network control: equipment such as industrial, medical, large advertising machine, educational video terminal and so on.


    Characteristic for Embedded Linux Board:

    • Support 7-inch to 84-inch various LVDS interface displays (point-to-point full HD display 1920*1080).
    • Support EDP interface display screen.
    • Multiple interactive mode interfaces: capacitive touch, infrared touch, infrared remote control, USB keyboard and mouse, multi-point optical touch.
    • Multiple network interfaces: Ethernet, wireless Wifi, Bluetooth.
    • Multi-channel USB interface, serial port.
    • Support 4K video playback and HDMI 2.0 high-definition output.
    • Strong anti-electromagnetic interference and electromagnetic compatibility.

    Basic hardware specifications for Embedded Linux Board:


    CPURockchip RK3288 Quad-core Cortex-A17 Quad-core GPU Mali-T764
    Main frequency1.8GHz
    RAMLPDDR3 2G/4G Optional
    Built-in storage capacityEMMC 8GB/16G/32G/64G Optional

    Display interface


    LVDS interface (single-channel, 6-bit dual-channel, 8-bit dual-channel). Support maximum resolution 1920x1080, support 7"-84" display
    EDP interface
    Screen voltageSupport 3.3V/5V/12V optional
    Touch screen

    Provide I2C interface (can support multi-point resistive touch, multi-point capacitive touch).

    Support USB multi-point infrared touch, multi-point acoustic wave touch, multi-point optical touch.

    The internet


    With RJ45 interface, support 10/100 Ethernet.
    Equipped with Wifi&BT module, supporting Wi-Fi 802.11b/g/n protocol. Support BT4.0
    Image rotationSupport 0 degree, 90 degree, 180 degree, 270 degree manual/auto rotation, support gravity sensor function
    Real Time ClockBuilt-in (optional external) real-time clock power supply battery

    Interface device


    Support MIPI interface camera, up to 500W pixels
    3 USB HOST, 1 USB OTG (support usb camera@500W usb printer, U disk, mouse, keyboard, standard usb peripherals)
    3 groups of serial ports. Support external serial port device modules (3G module, NFC module, printer, card reader, etc.)
    SD card, maximum support 32GB
    Class D power amplifier: 3W*2 8 ohms, support microphone
    HDMI 2.0 output
    AudioMP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP format
    VideoSupport H.264, MPEG2, VP6, VP8, MVC and other video formats 2160P@24FPS decoding. YouTube and other online videos, up to 4K, HTML5 video playback, Flash 10.1 playback
    PictureSupport JPG, BMP, PNG and other image format browsing and support rotation/slide show/picture zoom function
    Power AdapterInput: AC100-240V.50-60HZ, output: DC12V 3A

    Basic software specifications for Embedded Linux Board:

    Operating systemAndroid 8.0 and above
    Basic software functionsWeb browsing, web chat, email, e-book, resource manager
    Sound effect modeClock, alarm clock, calculator, recording
    Language supportmulti-lingual
    RecordingSupport MP3, WMA format recording
    ToolCalendar
    Alarm Clock
    Calculator
    note
    Weather + clock
    recording
    Word processingEPUB, WORD, EXCEL, POWERPOINT, PDF, TXT
    EbookPDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2
    Schedulecalendar
    InputStandard Andriod keyboard, optional third-party input method (Chinese, Korean, Japanese, etc.)
    NetworkBrowser -ChromeLite
    GOOGLE Market
    Email
    Gmail
    Google talk
    System ManagementAPK installer
    The original ecological Android system, open root permissions, can be customized product development
    Real-time remote monitoring, self-recovery from system crashes, 7*24 hours unattended
    System setting
    Google Maps
    Global time
    Support OTA remote upgrade

    Appendix

    RJ45 Small board specifications


    Interface definition

    • RJ45 interface
    No.DefinitionAttributesDescription
    1TXPoutputSignal sent positive
    2TXNoutputSignal sending negative
    3AGNDoutputAnalog ground
    4RXPoutputSignal receiving positive
    5RXNGround lineSignal receiving negative
    6AGNDGround lineAnalog ground
    7VCCApower supplypowered by 3.3V
    8NCNCNC
    9NCNCNC
    10AGNDGround lineAnalog ground

    • USB Expansion interface
    No.DefinitionAttributesDescription
    1HOST 5Voutput5V Voltage output
    2DM4outputdata
    3DP4inputdata
    4GNDGround lineGround line
    5GNDGround lineGround line
    6HOST 5Voutput5V Voltage output
    7DM3outputdata
    8DP3inputdata
    9GNDGround lineGround line
    10GNDGround lineGround line

    RJ45 Small board
