    Belparts Excavator Travel Motor Assy For Hyundai R330LC-9S R320LC-9 Escavadeira Final Drive 31Q9-40011

    Ask Lasest Price
    Brand Name : Belparts
    Model Number : R330LC-9S R320LC9
    Price : Negotiable price
    Payment Terms : T/T, Paypal and Trade Assurance
    Supply Ability : 500pieces
    Delivery Time : 1-5days
    • Product Details
    • Company Profile

    Belparts Excavator Travel Motor Assy For Hyundai R330LC-9S R320LC-9 Escavadeira Final Drive 31Q9-40011

    Belparts Excavator Travel Motor Assy for Hyundai R330LC-9S R320LC-9 Escavadeira Final Drive 31Q9-40011

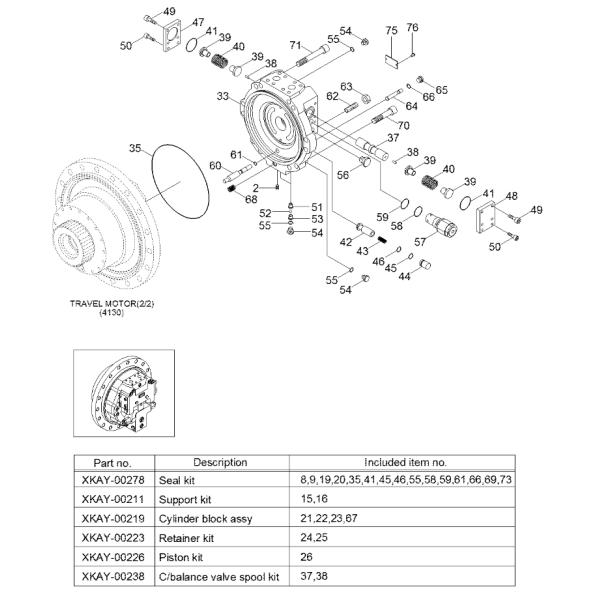

    Parts scheme

    List of spare parts


    Pos.Part NoQtyParts nameComments
    *.31Q9-40031[1]TRAVEL MOTOR
    *.31Q9-40032[1]TRAVEL UNIT
    *.31Q9-40033[1]TRAVEL UNIT
    *-1.31Q9-40010[1]TRAVEL UNIT
    *-1.31Q9-40011[1]TRAVEL MOTOR
    2.XKAY-01415[12]PLUG
    33.XKAY-01416[1]CASING-VALVE
    K35.XKAY-00236[1]O-RING
    *.XKAY-00238[1]SPOOL KIT-C/BLC VALVE
    37.XKAY-00239[1]SPOOL-C/BLC VALVE
    38.XKAY-00240[2]SCREW-ORIFICE
    39.XKAY-00241[2]DAMPING CHECK ASSY
    40.XKAY-00242[2]SPRING-C/BLC VALVE
    K41.XKAY-00243[2]O-RING
    42.XKAY-00244[2]PLUNGER-C/BLC VALVE
    43.XKAY-00245[2]SPRING-CHECK
    44.XKAY-00246[2]STOPPER-CHECK
    K45.XKAY-00247[4]O-RING
    K46.XKAY-00248[1]RING-BACK UP
    47.XKAY-00249[1]CAP-C/BLC VALVE(R)
    48.XKAY-00250[1]CAP-C/BLC VALVE(L)
    49.XKAY-00136[8]BOLT-SOCKET
    50.XKAY-00251[4]BOLT-SOCKET
    51.XKAY-00252[2]SEAT
    52.XKAY-00253[2]BALL-STEEL
    53.XKAY-00254[2]STOPPER
    54.XKAY-00255[7]PLUG-HP
    K55.XKAY-00256[7]O-RING
    56.XKAY-00257[2]PLUG-HP
    57.XKAY-01130[2]RELIEF VALVE ASSY
    K58.XKAY-00259[2]O-RING
    K59.XKAY-00260[2]RING-BACK UP
    60.XKAY-00261[1]ROD-SWASH
    K61.XKAY-00262[1]O-RING
    62.XKAY-00263[1]SCREW-LOCK
    63.XKAY-00279[2]NUT-HEX
    64.XKAY-00265[1]SPOOL-SWASH
    65.XKAY-00266[1]PLUG
    K66.XKAY-00267[1]O-RING
    68.XKAY-00269[1]SPRING-SWASH
    70.XKAY-00271[8]BOLT-WRENCH
    71.XKAY-00272[4]BOLT-SOCKET
    75.XKAY-02064[1]NAME PLATE
    76.XKAY-00277[2]RIVET
    *-2.@[1]T/REDUCTION GEARSEE 4140
    K.XKAY-00278[1]SEAL KITSEE ILLUST
    N.@[1]NOT SUPPLIED PARTS

    Product description


    AppliionHyundai Excavator
    QualityHigh Guarantee
    ModelR330LC-9S R320LC-9
    PackageStandard Packing at Normal
    Warranty1 Year
    Payment termT/T,, PayPal, Trade Assurance
    Delivery2 days after the payment received
    Shipmentby sea, by air, by express or as required

    FAQ

    1 . If I only know the excavator model, but can not offer parts No., what should I do ?
    If possible, you can send us pictures of old products, nameplate or the size for reference.


    2 . What is the warranty of the parts after I purchased?
    The warranty is 6/12 Months based on the item details.The genuine parts we don't have the warranty of it,but just can make sure it is 100% genuine.


    3 . How can I pay the order?
    You can finish the payment by T/T,Western Union,Paypal etc.


    4 . When will get the items after I place order?
    Once we received your payment , we will arrange the shipment within 24 hours ; if don't have stock , we will tell you before payment .


    5 . How can I do if there is something wrong with the items?
    First of all , I have confidence in the quality of our products ,if you really found something wrong ,please provide pictures for us and we will check. After it is confirmed, please return to us , we will offer the correct item.


    6 . What is your main products ?
    Our pain product is final drive , hydraulic pump , swing gearbox , travel gearbox , swing motor , hydraulic parts . If you need any parts for crawler excavator , you can ask us too . We will try our best to meet your requirement.
