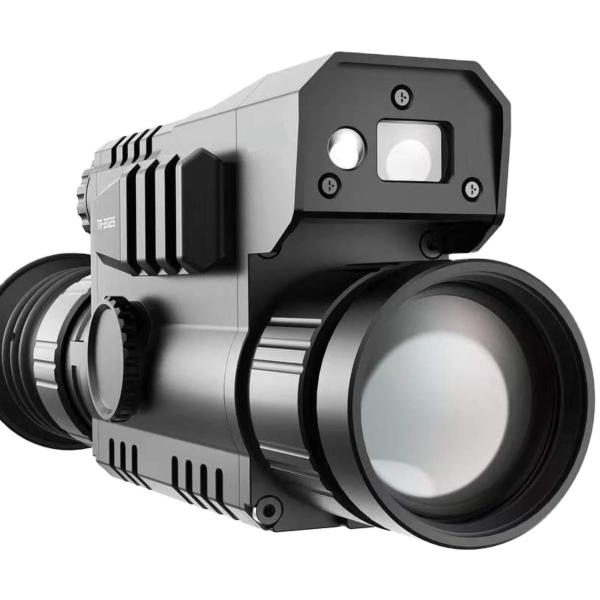

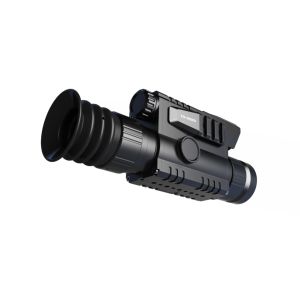

35mm Lens Thermal Imaging Monocular Night Vision Goggles With Rangefinder

Ask Lasest Price
Brand Name :	OEM, ODM All Available
Certification :	CE,FC,RoHS
Delivery Time :	3~7
Payment Terms :	T/T. L/C, Western Union, Money Gram
Supply Ability :	30000PCS/Month
Model Number :	TR20

Add to Cart

35mm Lens Handheld Thermal Imaging Monocular Night Vision Goggles Infrared Hunting Camera Optics With Rangefinder

Parameter:

Model	Lens	Lens
TR20	25mmm	35mm
Resolution,Pixel	384×288	384×288
Refresh Rate	50Hz	50Hz
Pixel Size, micron	12μm	12μm
Objective Lens	25mm/f1.0	35mm/f1.0
Magnification	2.04 - 8.16 x	2.85 - 11.4 x
Digital zoom	2x,4x	2x,4x
Eyerelief	40mm	40mm
Field of View (HxV)	10.5 x 7.9	7.5 x 5.7
Dioptre adjustment, dpt	± 5	± 5
Reticle Type	8-Pattern optional, or “NO reticle”	8-Pattern optional, or “NO reticle”
Reticle Color	4 colors: White, Black, Red and blue	4 colors: White, Black, Red and blue
Image Palettes	White Hot / Black Hot/ red hot /green hot/ Iron red / Sky	White Hot / Black Hot/ red hot /green hot/ Iron red / Sky
Default setting	Yes	Yes
Display Resolution	1280x960	1280x960
Built-in Red Dot indicator	Yes	Yes
Laser locator	1mw red dot CAL	1mw red dot CAL
Defective pixel repair	Yes	Yes
Hot tracking	Yes	Yes
Pictur in picture	Yes	Yes
photo & video recording	Yes	Yes
Wifi IOS & Android connection	Yes	Yes
E-compass	Yes	Yes
3D Gyroscope	Yes	Yes
Flashlight	Yes	Yes
Battery Type	Li-ion 18650 Rechargeable Battery Replaceable	Li-ion 18650 Rechargeable Battery Replaceable
Battery Life (Operating)	5 hours	5 hours
External power supply	USB type c	USB type c
Protection rate	IP66	IP66
Operating Temperature	-30℃ ... +60 ℃	-30℃ ... +60 ℃
Storage Temperature	-50℃.. +70 ℃	-50℃.. +70 ℃
Size (L × W × H),mm / inch	188.8mm51mm74.1mm	195.3mm51mm74.1mm
Weight (W/o battery),Kg/ oz	560g	560g
Housing Materials	Aluminum Alloy	Aluminum Alloy

Features:

1.App Remote Control Real-time Internet Streaming
2.The most advanced pixel
3.Protection grade IP67
