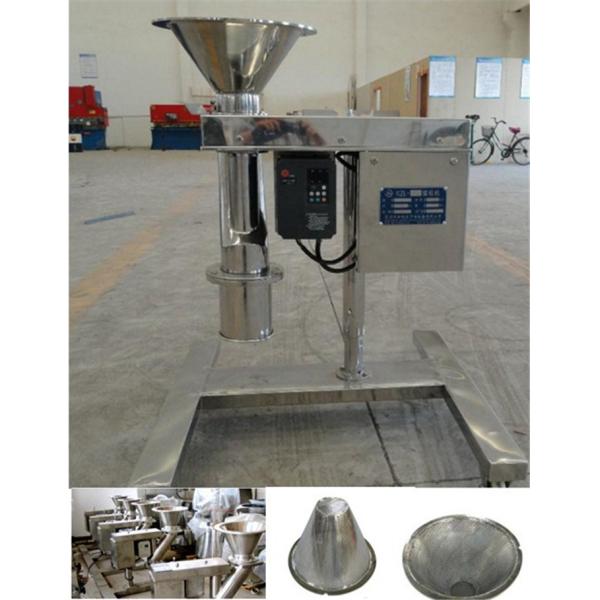

KZL Series High Speed Grinding Granulator/KZL series Fast Granule Processor
General process description
KZL Series high speed food grinding granulator is widely used in
foodstuff , pharmaceutical, chemica industries with good effect.
The granulator, equipped with reasonable filter net and shankpiece,
can smash those easy dispersed block materials and screen them
carefully via the screen with special mesh under centrifugal force.
The size of granules can be adjustable. The machine can replace the
Oscilating granulator/Oscillator.
1. The shape and specification of granules are varied from
different process and equipment. Those granules can be formed into
ones with almost same size and specification after treated through
the machine.
2. The machine is made of stainless steel with surface polished,
easy to dismantle and assemble as well as clean.
Technical parameters
| Spec | Stator diameter (mm) | Stator length (mm) | filter mesh diameter(mm) | Productivity (kg/h) | Power (kw) | Speed (rpm) | Overall size L×W×Hmm |
| 80 | 80 | 185 | 1-8 | 50-100 | 0.55 | 180~1400 | 650×450×1000 |
| 100 | 100 | 98 | 1-8 | 20~150 | 1.1 | 180~1400 | 1000×800×1200 |
| 180 | 180 | 178 | 1-8 | 100~1500 | 1.5 | 175~1400 | 1060×850×1350 |
| 300 | 300 | 298 | 1-8 | 200~2500 | 3 | 200~1400 | 1100×1000×1500 |
Product details
| Application: | Foodstuff / Pharmaceutical/Chemical | Motor: | SEW ABB SIEMENS |
| Power Supply: | Customized | Condition: | Granulate |
| Capacity: | 20~2500kg/h | MOC: | SUS316/SUS304/ CARBON STEEL ,ETC |
| Document: | FAT/ IQ / OQ / PQ | | |
Features
◆ MODULARITY – A distinctly avant-garde, modular concept:
Multi-drive allows you to alternate, depending on your production
requirements, between 5 milling heads for size-specific crushing,
fine grinding, de- agglomeration, or controlled sifting.
◆ FLEXIBILITY – Incomparable versatility: Multi-drive allows you to
adapt your milling platform easily and quickly, to suit your
current or future production requirements, regardless of your
manufacturing environment or production site.
◆ PERFORMANCE – Enhanced by a factor of 5: Multi-drive proves its
capabilities with the same degree of flexibility across the entire
range of your processing needs, from small batch to large-scale
production.
◆ SAVINGS – Enhanced return on investment and lower cost of
ownership: Multi-drive integrates three milling processes into a
single platform, allowing you to use up to 5 different heads and
reduce investment costs by 70%；
◆ In operation, there is less heat and dust in the system.
The fixed mesh screen is made of stainless steel plate, not easy to
be damaged.
When the gap between crushing knives and mesh screen can be
adjusted.
Most suitable for viscous, gummy, heat-sensitive and wet materials.
Applications
◆ The machine is suitable for granule crushing and processing for
Chinese Traditional Medicine and Western medicine, foodstuff,
chemical pigments and feed-stuff industry and etc.
Specifically, the equipment has the following processing functions:
◆ Make dry or wet granule uniform
◆ Crush and granulate blocks;
◆ Make granule from wet material;
◆ Crush heat sensitivity raw materials.
Special note: Not all materials in the above scope can be milled by
this equipment.
Diverse usage possibilities ranging from stand-alone to in-line, as
well as integration in complete installations Clear, GMP-capable
concept for smooth, reproducible production including scale-up High
level of production safety due to certified ATEX construction for
Zone 0/20 and a MIE range down to > 1 mJ High level of
operational safety for containment requirements up to OEB 5 (< 1
μg/m3 ) Easy and quick cleaning - Washing in place (WIP), SIP
optionally available Ultimate production flexibility permitted by
the modular design, which enables milling heads to be changed
within two minutes Versatile usage due to a large selection of
milling elements, which can be changed easily and quickly Energy
input reduced and optimised, guaranteeing reduced
