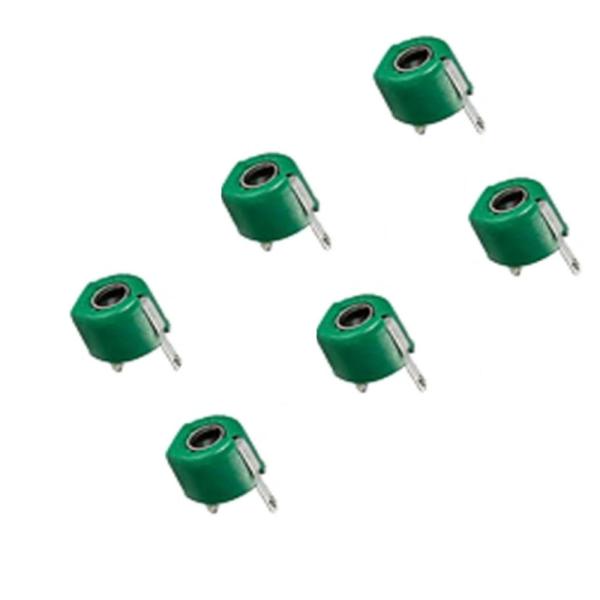

Adjustable Capacitor 6mm Ceramicr Trimmer Capacitor Green 30pF 100V
Ceramic trimmer capacitor uses ceramic as the medium, is the more
common variable capacitor. The semi-circular silver layer is plated
on the moving plate (porcelain plate) and fixed plate (porcelain
plate), and the electric capacity can be changed by rotating the
moving plate to change the distance between the two silver plates
Quick View
Capacity range: 3pF through 120pF
Insulation resistance: 104 minutes
Withstanding voltage: 220V DC
Working voltage: 100V DC
Rotational torque: 30 to 100g/cm
Operating temperature range: -25 to 85° C
Features
- Small and thin size.
- New shape of cover can improve the flux invasion compared with
current products.
- Improvement of the adhesion between rotor and stator leads to
superior stability.
- Unique construction with no plastic material provides superior
soldering heat resistance to maintain excellent characteristic
performance after reflow soldering.
- Suitable for high frequency circuit due to high self-resonant
frequency.
Application
Crystal oscillators, Crystal filters, pagers, cordless telephones,
PHS, hand radios, cellular telephones, remote keyless entry
systems, W-LAN, etc.
Specifications
| Capacitance(pF) | Temperature coefficient(ppm/℃) | Q factor( 1MHz, Cmax) | Marking color |
| Min | Max |
| 1.6 or less | 4.0+50% | NP0±300 | ≥500 | Black |
| 2.0 or less | 5.0+50% | NP0±300 | ≥500 | Blue |
| 3.0 or less | 10.0+50% | N750±300 | ≥500 | White |
| 5.5 or less | 20.0+50% | N750±300 | ≥500 | Red |
| 6.5 or less | 30.0+50% | N1200±300 | ≥500 | Green |
| 12.0 or less | 50.0+50% | N1200±300 | ≥300 | Yellow |
| 15.0 or less | 60.0+50% | N2200±300 | ≥300 | Brown |

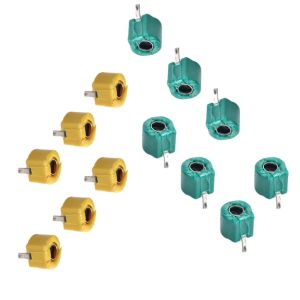

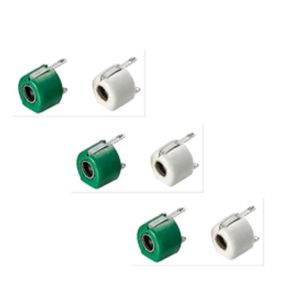

Product Photo for reference
FAQ Of Topmay Capacitor
1) Can I have a free sample to test ?
Yes, we could provide free samples to test and check quality.
Freight cost is collected.
2) What is the lead time?
Sample needs about 7~10 working days prepared; mass production
average time takes 15-20 working days
3) Do you have any MOQ limit?
Yes. But it depends on product. Normally MOQ is 2K~10Kpcs
4) How about price terms?
We do FOBSHENZHEN if order amount is more than 5000USD. Less than
that, it is EXWSHENZHEN and we do not undertake local charge.
5) What information should I let you know if I want to get a
quotation?
Basically for capacitor, it requires to know detailed capacitance
and voltage. If you have more information, such as type, product
photo for reference, you could kindly provide too.
