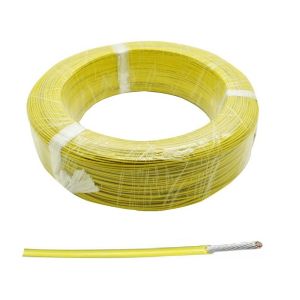

    ETFE Insulated High Temperature Wire Tin Plated Copper Wire

    Ask Lasest Price
    Brand Name : SANCO
    Model Number : FF40-1
    Certification : ISO9001
    Price : Negotiation
    Supply Ability : 250000M/Per Month
    Delivery Time : 3~8days
    • Product Details
    • Company Profile

    ETFE Insulated High Temperature Wire Tin Plated Copper Wire

    ETFE Insulated High Temperature Wire Tin Plated Copper Wire


    About ETFE wire

    ETFE is ethylene tetrafluoroethylene copolymer,ETFE insulated wires and cables display excellent material toughness, electrical properties and good resistance to heat, flame, and chemical radiation.


    Application

    1. Aviation Wiring
    2. Aerospace Wiring
    3. Nuclear Cables
    4. Electronics Wiring
    5. Medical Wiring
    6. Appliance Wiring


    Properties

    1. Nominal Voltage: 600V
    2. Temperature Range: -65ºC to 150ºC
    3. Conductor: Tinned copper
    4. Insulator: ETFE Insulated
    5. O.D.Tolerance :±0.10mm
    6. Color:black-brown-red-orange-yellow-green-blue-violet-gray-white-green/yellow.ect


    Wire gaugeSection area
    (mm2)
    Conductor construction
    piece/diameter
    (mm)
    Insulation thickness
    (mm)
    Reference OD
    (mm)
    Max. Conductor resistance at 20
    (Ω/Km)
    28 awg0.08mm27/0.120.150.66239
    26 awg0.14mm27/0.160.150.78239
    24 awg0.2mm27/0.20.150.9150
    22 awg0.4/0.3mm219/0.160.151.194.2
    20 awg0.6/0.5mm219/0.20.151.332.4
    18 awg1mm219/0.260.21.720.4
    16 awg1.2mm219/0.280.21.816.6
    14 awg2mm219/0.360.332.4610
    12 awg3mm237/0.320.332.96.63
    10 awg5mm237/0.40.333.464.13

    Noted:Specification and core no. are not limited to above regulation,they could be customized.
