High Pressure Layer HPL Honeycomb Sandwich Panel For Furniture
1. Descriptions:
HPL honeycomb panel is a sandwich panel whose core material is an
aluminum honeycomb core bonded with a high pressure laminate face
material. The outer layers of laminate can come in a variety of
finishes and colors.
HPL (High Pressure Laminate) honeycomb panel is a sandwich panel
formed by bonding a high pressure laminate facestock and an
internal aluminium honeycomb core.
HPL honeycomb panels are widely used in partition walls, interior
decoration, furniture, ceilings, rail transit partition walls,
toilet partition walls, ship partition walls, furniture, shopping
malls, hotel clubs, high-end office buildings and floors. HPL
honeycomb panel has the characteristics of sound insulation and
noise reduction, fire retardant, light weight and high strength,
providing a good working environment for high-end offices, shopping
malls, hotels and other places.
2. Specifications:
| HPL honeycomb panel |
| HPL | Skins of High Pressure Laminate |
| Thickness: from 0.5 mm to 4 mm |
| - Other thickness on request |
| - Color on request |
| ALU | 30303 Aluminum Honeycomb Core |
| Diameter (hexagonal cells): Ø 6, Ø 10, Ø 19 |
| Foil Thickness: from 40 to 80 microns |
| HPL | Skins of High Pressure Laminate |
| Thickness: from 0.7 mm to 4 mm |
| - Other thickness on request |
| - Color on request |
| Total Panel thickness | Regular: 10mm, 15mm, 18mm, 20mm, 25mm |
| -Other thickness on request |
| Dimension | Regular: 1220*2440mm, 1500mm*3000mm |
| -Other dimension on request |
| Specification of honeycomb core |
| Side length(mm) | 4, 5, 6, 7, 8, 9, 10, 12, 15, 20, 50 |
| Foil thickness(mm) | 0.04, 0.05, 0.06, 0.07, 0.08, 0.1, 0.15, 0.2 |
| Alloy | Al3003 |
Supply form | Unexpanded(block, strip) or expanded(slice); |
| Technical Data Sheet |
Specification | Side length (mm) | Density (kg/m³)
| Compression strength (MPa)
| L-Shear strength (MPa)
| W-Shear strength (MPa)
|
| BHC3003-5-0.03 | 5 | 27 | 0.53 | 0.44 | 0.24 |
| BHC3003-5-0.04 | 5 | 31 | 0.66 | 0.53 | 0.3 |
| BHC3003-4-0.03 | 4 | 33 | 0.73 | 0.58 | 0.33 |
| BHC3003-4-0.04 | 4 | 39 | 0.98 | 0.75 | 0.43 |
| BHC3003-5-0.05 | 5 | 41 | 1.07 | 0.8 | 0.47 |
| BHC3003-3-0.03 | 3 | 44 | 1.18 | 0.89 | 0.52 |
| BHC3003-5-0.06 | 5 | 49 | 1.43 | 1.03 | 0.60 |
| BHC3003-3-0.04 | 3 | 52 | 1.6 | 1.15 | 0.67 |
| BHC3003-4-0.05 | 4 | 53 | 1.65 | 1.18 | 0.69 |
| BHC3003-4-0.06 | 4 | 61 | 2.07 | 1.48 | 0.86 |
| BHC3003-5-0.08 | 5 | 67 | 2.45 | 1.74 | 1.02 |
| BHC3003-3-0.05 | 3 | 68 | 2.50 | 1.78 | 1.04 |
BHC3003-Beecore Aluminum Honeycomb Core, 3003 Series |
3. HPL honeycomb panel has several advantages:
• Fireproof
• Resistant to strong acid, base and chemical corrosion, resistant to
water, moisture and mold
• Resistant to abrasion, scratches, and impact
• Easy to clean, anti-ultraviolet rays
• Resistant to fire, heat, and cigarette burns
• Environmentally friendly, no toxic, anti-static, no radiation
• Extremely durable and not easy to deform
• Various surface processing and colors
4. Applications:
• Shipyard & Shipbuildings (Partitions and doors)
• Truck and Caravan body
• Airline industry
• Train and high speed subway
• Material for luxury ship and vehicle
• Prefabricated houses
• Interior decoration, ceiling and walls
5. Quality control:
A very technical engineering team. The general manager has worked
in the Netherlands. The core technologies are introduced from the
Netherlands. Others are very young and have more than 5 years of
practical experience.
Strict QC team: 8 people are responsible for HPL honeycomb panel of
quality control of parts, processing, testing, packaging, etc.

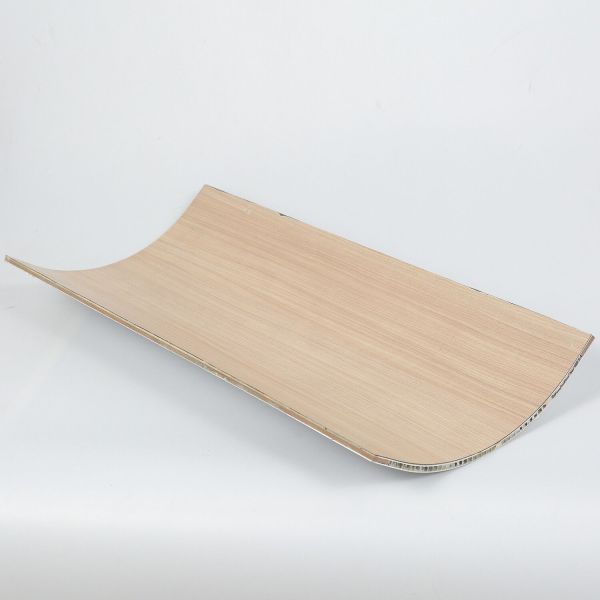

6. HPL honeycomb panel of more pictures:
7. Company profile
Suzhou Beecore Honeycomb Materials Co.Ltd, originated from Besin
(Dutch) International Group which was founded in 1957. It is the
world's leading professional manufacturer of honeycomb materials.
Since it' s established, the company has been committed to the
research and development of honeycomb technology, from slant-porous aluminum honeycomb core, honeycomb core, honeycomb panel, to the finished product which was
using honeycomb panel as the solution, such as truck body, laser TV
/ projection screen etc.
8. Factory show
9. FAQ
Q1. What is HPL honeycomb panel usd for?
A: HPL honeycomb panel which has excellent rigidity and is one of
the best metal wall materials. It has been widely used in the
decoration of modern architecture, trains, automobiles,
shipbuilding, building materials industry, furniture industry and
so on.
Q2. What are the advantages of HPL honeycomb panel?
A: HPL honeycomb panel has the advantages of light weight-high
strength, high surface flatness, environmental protection and no
pollution.
Q3. What is the packaging method of HPL honeycomb panel?
A: HPL honeycomb panel of samples are packed in cardboard and bulk
orders are packed in plywood cases.
