Desktop Coin Cell Manual Crimping Machine for CR20XX Coin Cell Cases

    Buy cheap Desktop Coin Cell Manual Crimping Machine for CR20XX Coin Cell Cases from wholesalers

    Buy cheap Desktop Coin Cell Manual Crimping Machine for CR20XX Coin Cell Cases from wholesalers
    • Buy cheap Desktop Coin Cell Manual Crimping Machine for CR20XX Coin Cell Cases from wholesalers

    Desktop Coin Cell Manual Crimping Machine for CR20XX Coin Cell Cases

    Ask Lasest Price
    Brand Name : TICO
    Model Number : STC-ASF-20
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 80 sets per month
    Delivery Time : 7~12 days
    • Product Details
    • Company Profile

    Desktop Coin Cell Manual Crimping Machine for CR20XX Coin Cell Cases

    Desktop Coin Cell Manual Crimping Machine for CR20XX Coin Cell Cases

    Product Introduction

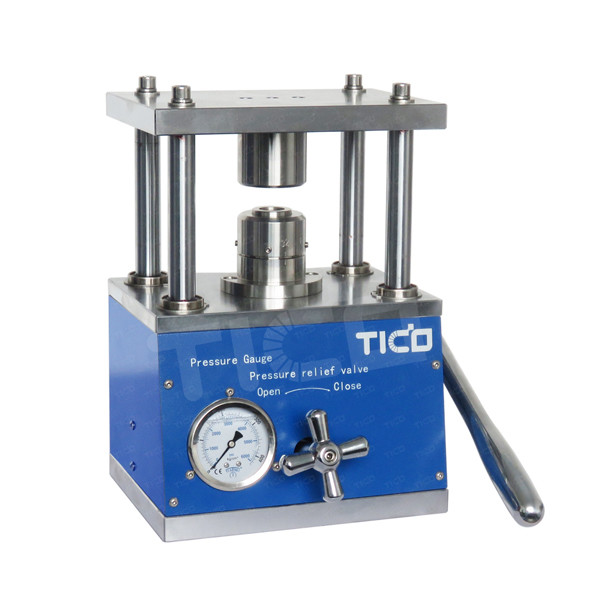

    The STC-ASF-20 compact hydraulic crimping machine is used for all types of coin cell cases crimping, such as CR2032, CR2450, etc. CR20XX series crimping die is included as standard, the other crimping die set is optional. Coin cell disassembly die can be optional.

    Features

    • Tungsten steel crimping die ,anti-corrosion and durable.

    • It's desinged with crimping height limitation to avoid damage.

    • Embedded pressure gauge designed to observe and accurately control sealing pressure.

    • No liquid leakage no vibration during battery Crimping.

    • Different die set can be optional, such as CR20XX /CR24XX crimping die, disassembly die, etc.

    • Small volume, convenient operation, it can operate inside the glove box.


    Technical Parameter

    ModelSTC-ASF-20
    Crimping dieCR20XX crimping die is standard, other size die is optional
    Operation force of hand rockerLess than 6kg
    Die materialTungsten steel
    Structure materialHigh strength chrome steel and alloy aluminum, and the treatment of electroplating and spraying, to ensure that the surface has strong anti-corrosion properties.
    Pressure gaugeUnder normal conditions, the pressure gauge value is around 80~100kg/cm2. This machine has been set in this value range before delivery, such as in special circumstances require greater pressure (maximum pressure of 200kg/cm2, about 8 tonnes of pressure) need to consult with the manufacturer and then adjust.
    DimensionL232mm * W190mm * H330mm
    Weight25kg

    Warranty


    1 year warranty with lifetime support. Man-made damage is not covered.


    FAQ


    1. Are you a manufacturer?


    A: Yes, our factory is located in Shenzhen, China.
    We have more than 10 year experience for manufacturing battery lab research equipment. We own a professional R&D department.


    2. Do you accept customized product?

    A: Yes. Most of our products can be customized to meet different requirements.


    3. Will you provide test video before dispatch?

    A: Yes, we take test video for every equipment before dispatch, which will display how to use it.


    4. Can you offer overseas installation service?

    A: Yes, we can dispatch professional engineer for on-site installation service.
