Hot Sale 10ton-16ton 10m-12m Long Boom Excavator High Quality

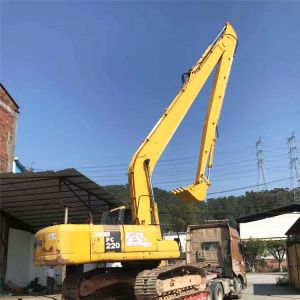

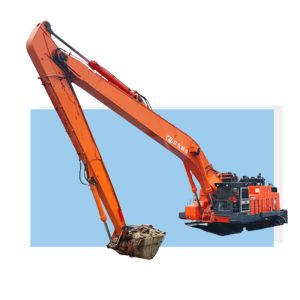

Excavator Long Reach Boom Arm For PC80 EX60 PC200
click here to check our catalog:Zhonghe Machinery Catalog-Contact Sales Manager Aria Directly

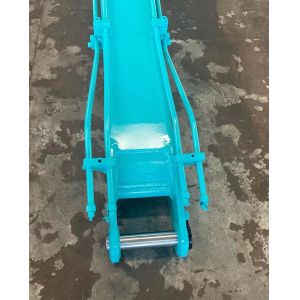

Description of Excavator Long Boom
1. High material: the mini excavator long arm's main material is Shaogang Q355B, the hydraulic pipe is national
standard seamless, the pins are 40MuCr, the high-pressure hose is
made of 4 layers steel rings, the butter pipe is a single-layer
hose, and the bush driven into the base of the boom is graphite
alloy copper sleeve.
2. Working conditions applicable to the lengthening arm: Municipal
Engineering, subway construction, river dredging, reservoir
cleaning and other water conservancy projects.
Product advantages for excavator dipper extension
FIRST--Less maintaince and sturdy
1. plasma cutting, machine milling, robot welding, boring after
welding, assembly line production operation, and better quality
assurance.
2 It can be customized according to the working conditions to meet
the construction needs of different users.
3. The opening angle of the large and small arms can reach 163
degrees, and the excavation radius and height are larger.
SECOND--CORE DESIGN TECHNOLOGY
1. Tolerance within 5-10um
Hole drilling tolerance is within 5-10um, ensure the accuracy.
2. High work efficiency and save fuel
Lighter while taking into account the quality, it not only ensures
work efficiency but also saves fuel.
Sumilation parameters of ZH long reach attachments
| Excavator Ton | Total Length(mm) | (A)Boom
(mm) | (B)Arm
(mm) | Maximum Digging Radius(mm) | Maximum Digging Depth(mm) | Maximum Unloading Height(mm) | Maximum Digging Height(mm) | Bucket Volume(cbm) | Cylinder(ton) |
| 11-15T | 13000 | 7250 | 5750 | 11200 | 9000 | 7550 | 9350 | 0.15-0.3 | 12T |
| 20-25T | 15400 | 8220 | 7180 | 14500 | 11300 | 10400 | 12600 | 0.4-0.6 | 12T |
| 20-30T | 18000 | 10000 | 8000 | 17300 | 13000 | 11800 | 14000 | 0.4-0.7 | 12T |
| 35-40T | 20000 | 11000 | 9000 | 19200 | 14900 | 12900 | 15200 | 0.6-1.2 | 12T |
| 40-45T | 22000 | 12000 | 10000 | 21300 | 16000 | 14000 | 17000 | 0.5-1 | 20T |
| 40-50T | 24000 | 13000 | 11000 | 23000 | 17900 | 15200 | 18100 | 0.5-1.1 | 20T |
Advangtages of ZHONGHE MACHINERY
GOOD SERVICE:
1. Online support within 24 hours.
2. Appointment video technical support.
(Our engineers have focused on excavator boom and attachment over
10 years)
3. Long excavator boom shall be two/three jointed pcs to make it
fittable into container to save shipping cost.
WARRANTY
1 year for long reach boom, 180 days for cylinder and linkage, 90
days for bucket.
Recommended Excavator Attachments
1. Long reach excavator boom
2. Excavator telescopic boom
3. Demolition boom
4. Excavator rock bucket
5. Excavator tilting bucket
6. Hydraulic grabs for excavators
7. Rock Ripper
8. Breaker
FAQ of Long Reach Excavator Boom
Q1: Why not have boom and stick cylinders in the plan?
A1: First, the whole long arm is lengthening, but the boom just
lengthening from its middel sleeve to its end, so the original boom
and stick cylinder can be used. Second, using the original parts
can save your cost.
Q2: How long is the boom arm can min excavator be be configured
with? Whether it is necessary to increase the counterweight?
A2. Generally speaking, 30-40 excavator longest arm suggests to be
8 meters, can configure 0.1 cbm bucket, no need extra
counterweight. 55 excavator longest arm suggests to be 12 meters,
can configure 0.1-0.15 cbm bucket, need 0.5 ton extra
counterweight. 60-80 excavator longest arm suggests to be 12
meters, can configure 0.15-0.25 cbm bucket, need 0.5-0.7 ton extra
counterweight.
It is not recommended to extend boom arm to longest length as min
excavator is easy to sloshing.
