    W80Cu20 Tungsten Copper Alloy Rod Electrode Polishing

    Ask Lasest Price
    Brand Name : JX
    Model Number : W80Cu20 Tungsten Copper Rod Electrode
    Certification : ISO
    Price : according to actual products
    Payment Terms : T/T
    Supply Ability : 300kgs month
    Delivery Time : 25days
    • Product Details
    • Company Profile

    W80Cu20 Tungsten Copper Alloy Rod Electrode Polishing

    W80Cu20 Tungsten Copper Rod Electrode

    1. Grades: W Bronze (80/20), .WCu (75/25), WCu (70/30), WCu (60/40), WCu (50/50)

    2. Features:

    High quality, machinability

    3. Quality certification: ISO9001:2008

    4. Product features: high melting point, high density, high temperature oxidation resistance, long service life, corrosion resistance.

    Product Description

    CommodityW80Cu20 Tungsten Copper Rod Electrode
    GradeW75Cu25 W80Cu20
    Density14.5g/cc
    SurfaceMachined bright
    SpecificationAs per customer request
    PropertyHigh strength, good thermal and electrical conductivity, good mechinability
    RoughnessRa0.6~3.2

    Polished Tungsten Copper Alloy is Mainly used for EDM machining of carbide molds, high-speed steel and switches and contacts in high and low voltage electrical devices.


    W80Cu20 Tungsten Copper Rod Electrode Specification

    Code No.Chemical Composition %Mechanical properties
    CUImpurityWDensity
    (g/cm3 )
    Hardness
    HB
    RES
    (cm)
    Conductivity
    IACS/ %
    TRS/
    Mpa
    CuW5050+/-2.00.5Balance11.851153.254
    CuW5545+/-2.00.5Balance12.31253.549
    CuW6040+/-2.00.5Balance12.751403.747
    CuW6535+/-2.00.5Balance13.31553.944
    CuW7030+/-2.00.5Balance13.81754.142790
    CuW7525+/-2.00.5Balance14.51954.538885
    CuW8020+/-2.00.5Balance15.15220534980
    CuW8515+/-2.00.5Balance15.92405.7301080
    CuW9010+/-2.00.5Balance16.752606.5271160

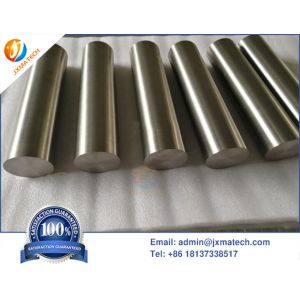

    W80Cu20 Tungsten Copper Rod Electrode Picture:
