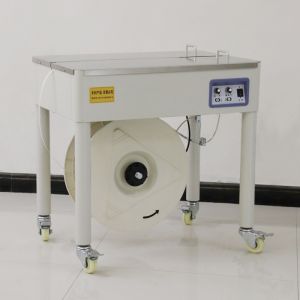

Upright Semi-Auto Polypropylene Banding Machine Strapping Packing
Packaging Machine
DESCRIPTION OF STRAPPING PACKING MACHINE
We can offer all range of fully automatic strapping machine,
automatic strapping machine and semi automatic strapping machine
that utilize our famous polypropylene strapping.
The Semi automatic strapping machine is mainly with for
Polypropylene strapping. After manually insert the strap, the
strapping machine will automatically tighten and packing, very easy
to use. The machine mainly applied to apparel, chemical, commodity,
food, medical or other need packing goods.
| Cycle Time | 2 sec./strap |
| Tension Range | 3~40kgs |
| Strap Width | 5,6,9,12,15.5mm adjustable |
| Sealing Method | Heating element |
| Reel Inside Diameter | 200,230,280mm specified |
| Power Supply | 100/110/220/230/240V 50/60HZ, 1PH |
| Table Height | 750~830mm adjustable |
| Power Consumption | 0.4kw |
Machine Dimension
(L x W x H mm) | L845 x W430 x H750 |
Machine Weight
(50%,100%,150%,200%) | 65kgs |
Features of the semi-automatic strapping machine for PET strap:
1. It has two motors. The strapping tension is controlled by
electronic. The strapping tension is strong.
2. It's no need to adjust the machine if the thickness of the strap
is different.
3. It's more power-saving. Its energy used is the half of other
normal packing machine.
4. Its working noise is lower than normal about 50%.
5. All the main electronic components of our packing machine used
are Siemens.
6.Convenient operators panel.
7.Externally controlled tension.
8.Integrated circuit control board.
How to use semi-automatic strapping machine:
1. Power switch: Turn ON to start the machine, and OFF to stop the
machine.
2. Power indicator light (POWER): Turn on the power switch, the
light is on.
3. Length adjustment for strap feeding (TIMER): Every one scale is
about 500mm.For any adjustment that is required turn it in the
clockwise direction. The length of the strap will then become
longer.
4. Strap tension button (TENSION): Choose the tension degree of a
strap according to the size of the package.
5. Manual feeding/Reset button (FEED/HOME): Press the FEED button
to help feed the straps. The longer you press, the longer the strap
will be. 6. If the machine is not at the home position, press the
HOME button so that the machine will return to its home position.
7. Cooling time adjustment (COOL TIME): Depending on the strap and
the different tensile strength, adjust the cooling time, for better
adhesion effects.
8. Safety door switch: If the top cover is opened, the machine will
stop running automatically. (Please turn off the main power switch
before opening top cover.
