Customized Tungsten Steel Air Nipper With Square Cylinder Multi Function

    Buy cheap Customized Tungsten Steel Air Nipper With Square Cylinder Multi Function from wholesalers

    Buy cheap Customized Tungsten Steel Air Nipper With Square Cylinder Multi Function from wholesalers
    • Buy cheap Customized Tungsten Steel Air Nipper With Square Cylinder Multi Function from wholesalers
    • Buy cheap Customized Tungsten Steel Air Nipper With Square Cylinder Multi Function from wholesalers
    • Buy cheap Customized Tungsten Steel Air Nipper With Square Cylinder Multi Function from wholesalers
    • Buy cheap Customized Tungsten Steel Air Nipper With Square Cylinder Multi Function from wholesalers

    Customized Tungsten Steel Air Nipper With Square Cylinder Multi Function

    Ask Lasest Price
    Brand Name : QIANHE
    Model Number : C40+WCS-A
    Price : US$150-US$350 per set
    Payment Terms : T/T, Western Union
    Supply Ability : 5000 set per month
    Delivery Time : 3-7 working days
    • Product Details
    • Company Profile

    Customized Tungsten Steel Air Nipper With Square Cylinder Multi Function

    Multi-Function Customized Tungsten Steel Air Nipper With Square Cylinder C20+WIS-F


    AIR NIPPERS

    Qianhe's air nippers are available in various versions with different body and

    blade options.The body can be vertical or horizontal, while the blade can be straight, angular, perpendicular, square or round.


    Description


    The product is used in Automatic coil winding machine and some other Automatic Machine

    It is a general set of blades used for cutting copper wire ,steel wire,soft plastic and hard plastic .

    Improved durability with brazed high-speed steel.

    We provides a generous selection of blades for all wire cutting needs, including resin product

    gate cuts.and automatic welding equipment.


    Products features:

    1. All the blades are inlay imported tungsten steel and the using life can be sure with 100,0000 times .
    2. The Air Nipper cylinders are made of high quality alloy forged →heat treatment→finish machining →riveting technology etc;
    3. The Cylinder surface deal with hardened ,not easy to scratch ,the piston and the O-Ring are all high quality materials imported from overseas;
    4. Working Pressure :5kg/C㎡
    5. The opening is 3.8-4.2 mm ,and for special requirements it can be customized.
    6. All the Air Nipper Blades need to match with the cylinder for cutting

    Features

    • Inlaid tungsten steel, long service life
    • Superior wear resistance
    • Appearance of cylinder, hard surface treatment

    Specification :


    Cylinder ModelBlades ModelApplied cutting wire (Фmm)
    Copper wireSteel WireSoft plastic wire
    CS10,C20,C40,HandheldWIS-A,WIS-B,WIS-D,WIS-F ,WIS-G,WLS/WCS/WIL0.02-1.000.02-0.500.02-2.00
    C30WIS-A.WIS-B,WIS-C,WIS-D,WIS-F,WIS-G,WLS/WCS/WIL0.02-1.000.02-0.500.02-2.00
    C25WIS-E0.02-1.000.02-0.500.02-2.00
    C50WIS-E20.02-1.000.02-0.500.02-2.00
    CS-5**0.02-0.50****
    C45WIB-A/B/C0.10-2.500.10-1.500.10-3.00

    For special requirements it can be customized

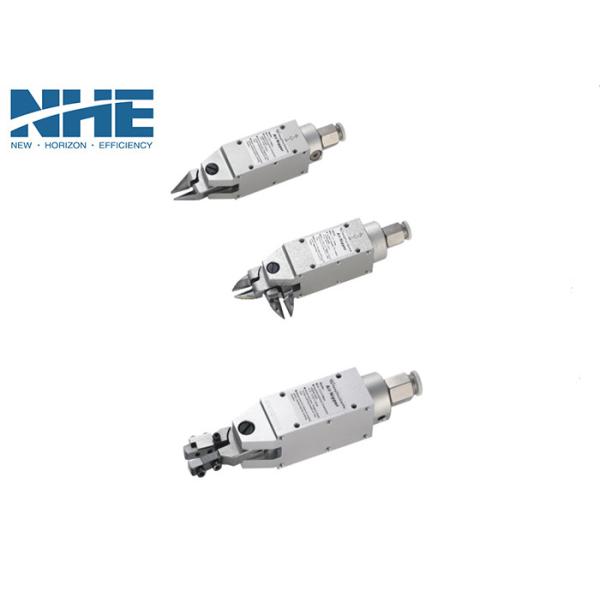

    Picture Show :

    Cuting with Cliping

    Winding Machine Spare Parts

    All kind of winding machine accessories for example: Ceramic pully, wire pully, ceramic eyes,wire guide and nipper blade for different machines, Marsilli machines, Nittoku machine and Tanac machines
