Advantage
1. Cube ice is crystal, clean, sanitary, and with best melting
resistance, which suitable for drinks modulation, food decoration,
food preservation, and so on. So cube ice is mainly used as edible
ice.
2. Size of cube ice: 22x22x22mm, 29x29x22mm.
3. The daily capacity of cube ice machine ranges from 1-20 tons.
the non-standard cube ice machine can be customized according to
clients requirement.
Detailed Images
Product Parameters
| 3 tons per day large capacity cube ice machine for hotels &
restaurants parameters |
| Model Parameters | CV 1000 | CV 2000 | CV 3000 | CV 5000 | CV 10000 | CV 20000 |
| Daily output (T/24 h) | 1 | 2 | 3 | 5 | 10 | 20 |
| Compressor Power | 4.34 kw | 7.88 kw | 10.58 kw | 21 kw | 42 kw | 73.5 kw |
| Fan Power of Cooling Tower | 0.18 kw | 0.37 kw | 0.56 kw | 0.75 kw | 1.5 kw | 2.2 kw |
| Cooling Pump Power | 1.1 kw | 1.5 kw | 1.5 kw | 2.2 kw | 4 kw | 5.5 kw |
Unit Size | L (mm) | 1800 | 1630 | 1980 | 2890 | 5730 | 7100 |
| W (mm) | 1000 | 1600 | 1630 | 1780 | 1780 | 2250 |
| H (mm) | 1700 | 1706 | 1860 | 1860 | 2130 | 2300 |
| Unit N.W. (kg) | 800 | 1000 | 1200 | 1600 | 3000 | 5000 |
1. Size of cube ice: 22*22*22 mm ; 29*29*22 mm ; 38*38*22 mm.
2. Compressor brand: Bizter / Frascold; refrigerant: R22/ R404A;
Cooling Method: Water Cooling / Air Cooling.
3. Power Supply: Voltage 380V/3P/50Hz (For non-standard voltage,
unit configuration needs to be calculated separately).
4. Operating Conditions: T(water supply):20 ℃, T(ambient):32 ℃,
T(condensing): 40 ℃, T(evaporating):-10 ℃.
5. Note: The actual ice production varies due to the influence of
the water supply temperature and ambient temperature.
6. The final interpretation of the above mentioned parameter is in
Icemedal, there will be further notice, if there any technical
change.

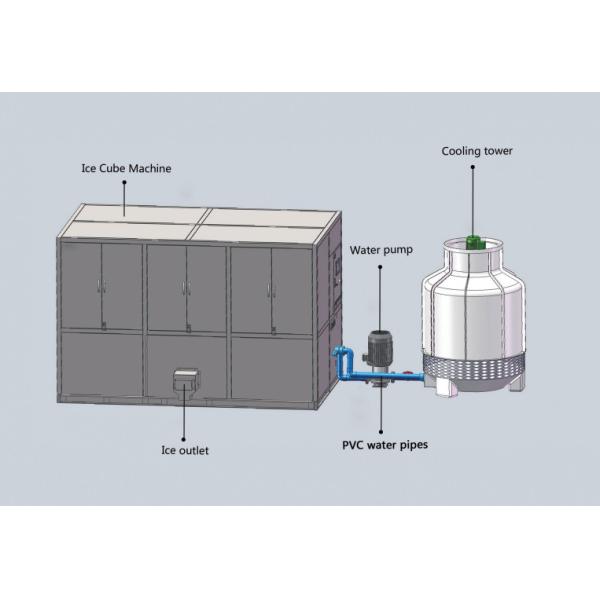

Drawing display
Our Company
Packaging
Product Application
Cube ice is widely used in hotels, bars, hotels, canteens, banquet
hall, western restaurant, fast food restaurant, convenience store,
restaurants, convenience stores, cold drinks shops and other places
where ice is needed. The size of the ice can be adjusted to meet
the different needs of customers for ice. and so on.
Certifications
FAQ
1.Q: Are you add refrigerant in the ice machine?
A:Yes, our equipment is filled with refrigerant, and it can be used
as long as it is connected to electricity and water.
2. Q: All your ice machine is based on 380V 50HZ power requirement?
Do you have the right power requirement for aboard? Such as 440V
60HZ or 220V three phase that suitable for America?
A: Our ice machine and power, voltage can suitable for your
country, please make the power requirement be clear in your order.
