    270L Continue Salt Spray Corrosion Test Chamber for paint coating

    Ask Lasest Price
    Brand Name : ASLI
    Model Number : SH-90
    Certification : CE, ISO,SGS, BV
    Price : negotiable
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 100 sets per quarter
    Delivery Time : 15 workdays
    • Product Details
    • Company Profile

    270L Continue Salt Spray Corrosion Test Chamber for paint coating

    continue spray salt spray corrosion test chamber can be use in :

    Coating ,Electroplate,Organic and inorganic coating, Anodic treatment and Antirust oil

    Related Standards:

    JIS Z 2371,ASTM B117 – 11, IS:5528, IS:6910 (R2003)

    ASTM B117,GM 4298, ISO 9227,DIN 50021,ASTMD1735,GM4465,ASTMG85 (Annex 5),CCT I,CCT II,CCT IV,GM 9540P, SAE J-2334


    gold testing machine Features:

    1. Indicating system : including air flow memter and pressure gauge of frog tower .

    2. Complete and convenient monitoring for successful test ;

    3. Air pressure regulators for Accurate air inlet control

    4. Air control : double filter / air regulator, filter / air integrated regulator

    5. Color LCD screen

    6. Indicating data : test indentification, cyclic times , total test time, real test time, cyclic test procedure phase, current test procedure phase, coming test procedures, dry and wet ball temp in the test area, preset temp in testing area .

    7. Data memory and real diagram trendecy

    8. Salt frog with depressed air and adding humidity

    9. Salt frog without depressed air and adding humidity

    10. Humidity controll adjustable

    11. Drying status

    12. Sink in controlling temp

    Technical Parameters
    ModelSH-60SH-90SH-120SH-160SH-200
    Internal Dimension WxHxD (mm)600x400x450900x500x6001200x500x8001600x500x8002000x500x800
    External Dimension WxHxD (mm)1100x600x12001400x950x12001900x1300x14002300x1300x14002700x1500x1500
    Lab TemperatureSaline test (NSS ACSS) 35±1 °C ;Corrosion Test (CASS)50±1 °C
    Pressure Bucket TemperatureSaline test method (NSS ACSS) 47±1 °C / Corrosion Test (CASS)63±1 °C
    Lab Capacity(L)108270480640800
    Saline Capacity(L)1525404040
    Saline Concentration5% concentration of NaCl, or every Liter 5% NaCl add 0.26g CuCl2H2O
    Compressed Air Pressure(Kgf)1.0~6.0
    Spray Volume1.0~2.0ml /80cm2 /h(working at least 16 hours, and take the average value)
    Spray FormContinuous Spraying or Programmable Spraying
    PowerAC220V 1 ph 3 lines15A
    Weight(Kg)6580120160200

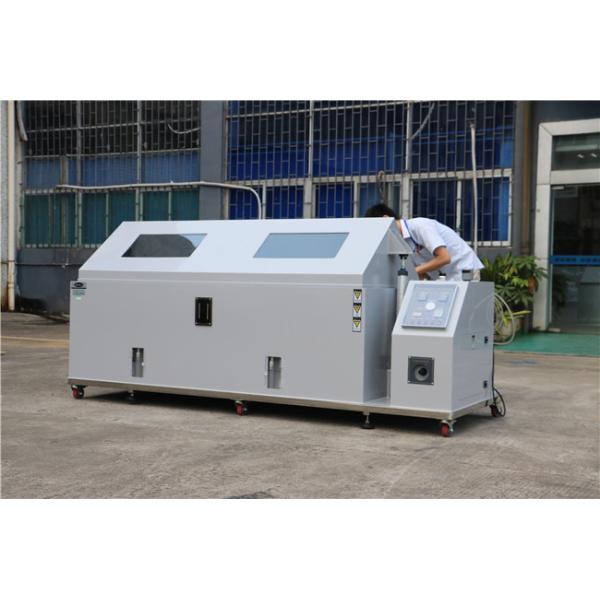

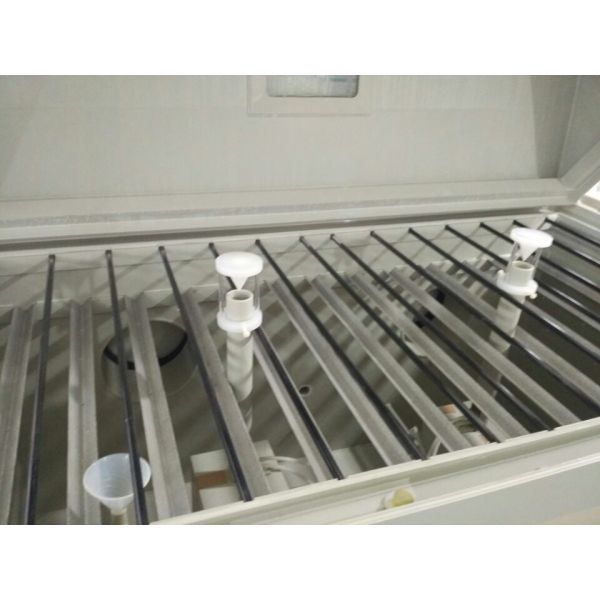

    Product Pictures

    Packaging & Shipping

    Package: PP film first, and then 10mm foam between machine and the case, and outside is standard export plywood case.


    continue spray salt spray corrosion test chamber
