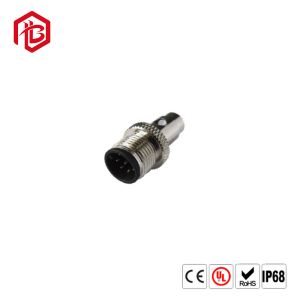

    Finecables Industrial M12 2-12pin Circular Electrical Cable Wire Connector IP67 Waterproof

    Ask Lasest Price
    Brand Name : Bett
    Model Number : m12 flange connector
    Certification : CE, UL
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union/ Paypal
    Supply Ability : 100000 / week
    Delivery Time : 3-7 working days
    • Product Details
    • Company Profile

    Finecables Industrial M12 2-12pin Circular Electrical Cable Wire Connector IP67 Waterproof

    Finecables Industrial M12 2-12pin IP67 Waterproof Circular Electrical Cable Wire Connector


    Product description


    Standard
    IEC 61076-2-101
    Insulation Resistance
    ≥100MΩ
    Ambient Temperature
    -25℃~+90℃
    Contact Resistance
    ≤5mΩ
    Connector Insert
    TPU/PA
    Shielding
    available
    Connector Contacts
    Brass with Gold Plated
    Seal/O-ring
    Epoxy resin/FKM
    Coupling Nut/Screw
    Brass with Nickel Plated
    Mating Endurance
    >500 cycles
    IP Rating
    IP67/68/IP69K in locked condition
    Certificate
    UL/CE/ROHS/IP67/REACH/IP68

    Basic Product Information
    Connector Series
    M8/M12/M16M/M23
    Gender
    Male Female
    Coding
    A/B
    Locking Type
    Fix Screw
    Mounting Type
    cable wire connector
    Part No.
    cable wire connector
    * refers to coding type
    ** refers to pins number

    Features


    It has unique waterproof function, with IP67 waterproof level. And use PA66 nylon material to effectively reduce electromagnetic by external high current. Optional shell color to meet different environmental requirements.


    any long can be customized for customer request, (20 cm) regular long male female each When ordering, please indicate some conclusions, insider cross-sectional area square number, color, line length, tail decortication and wetting length (normal is 3 cm and 3 mm), the other orders are required to submit


    Q&A


    Q1. Are you a factory?

    FC: Yes, we are a 100% factory. Established in 2003, Finecables factory size is 5K+ m2, located in historic town of Humen, Dongguan City, Guangdong Province, China (Post Code: 523900).

    Q2. Can you produce customized product orders? OEM or ODM orders?

    FC: Sure. With 16+ years of OEM and ODM manufacturing experience, we are able to provide you with one-stop Custom Connector Solutions.

    Q3. Why choose Finecables? What makes your company a reliable supplier?

    FC: Ever since founded, Finecables is committed to being the world's leading manufacturer in industrial connectivity. We are the ONLY ONE factory in China who has been certified with ISO 9001/ISO 14001/IATF 16949/ISO 13485/OHSAS 18001 by German TÜV test organization.

    Q4. What certificates do your products have?

    FC: Our products are certified with UL/CE/IP67/IP68/IP69K/RoHS/REACH...... Our main markets include EU, North America, East Asia etc.

    Q5. What's your regular production time after order is placed and confirmed?

    FC: Generally speaking, 3~5 days for standard products. If customized products,lead time is about 10~12 Days. If your project involves new molds to make, lead time is subject to custom product complex.


    Product display


    Quality Finecables Industrial M12 2-12pin Circular Electrical Cable Wire Connector IP67 Waterproof for sale
