Factory Direct Price elderly people smart villa elevator home
Spacious Space Taste Leisurely Life
The maximum net height of lift car can reach2200mm[roofheight:
3m),which can bring you open space experience and make you go in
and out more easily.
It can save the using area of well at least by 15%
The roof height can reach 3m
With compact design adopted for villa elevator, it saves the using
area of well by 15%-20% and could provide larger size of lift car
in the same well.
The anion it releases is equivalent to that released by a big tree with the height of 5m.In the meantimeit can sterilize absorb methanol,removes peculiar
smell&second-hand smoke and filters PM2.5 to make lift car filled with exceptional fresh air.

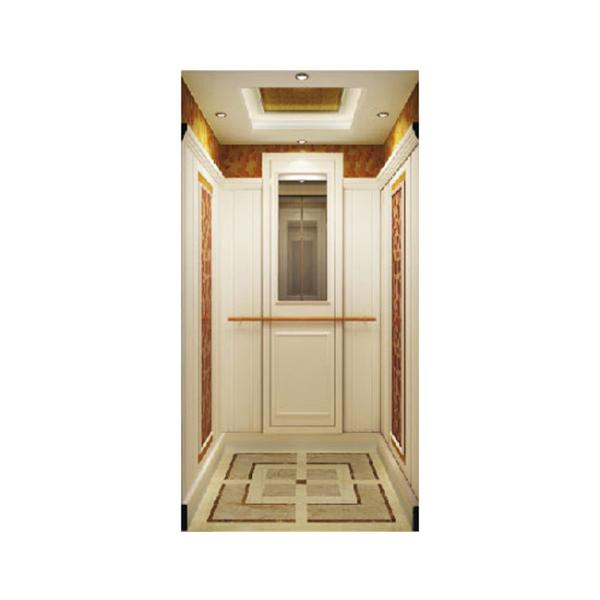

Optional
Ceiling:wooden modelling, goldfoil, lamp belt and LED tube lamp
Side wall:craft wooden facing,wallpaper and craft glass
Rear wall:craft wooden facing,car edge mirror and wallpaper
Handrail:craft handrail
| Machine room-less passenger elevator |
| Load(kg) | NO.of persons | speed(m/s) | door opening type | opening size
(width X high mm) | net size
(width X high mm) | Hoistway net size (mm) |
| (width X high mm) | OH | PP |
| 630 | 8 | 1.0 | split door | 800 | 1300x1250 | 2100x1700 | 4500 | 1500 |
| 1.5 | 4600 | 1600 |
| 1.75 | 4700 | 1700 |
| 800 | 10 | 1.0 | 800 | 1400x1350 | 2200x1800 | 4500 | 1500 |
| 1.5 | 4600 | 1600 |
| 1.75 | 4700 | 1700 |
| 1000 | 13 | 1.0 | 900 | 1600x1500 | 2400x2000 | 4500 | 1500 |
| 1.5 | 4600 | 1600 |
| 1.75 | 4700 | 1700 |
| 1150 | 15 | 1.0 | 1000 | 1750x1500 | 2600x2000 | 4500 | 1500 |
| 1.5 | 4600 | 1600 |
| 1.75 | 4700 | 1700 |
| Small machine room passenger elevator |
| Load(kg) | NO.of persons | speed(m/s) | door opening type | opening size
(width X high mm) | net size
(width X high mm) | Hoistway net size (mm) | machine room size(mm) |
| (width X high mm) | OH | PP |
width X high mm | MR.H |
| 630 | 8 | 1.0 | split door | 800 | 1300x1250 | 1900x1900 | 4400 | 1400 | 1900x1900 | 2300 |
| 1.5 | 4500 | 1500 |
| 1.75 | 4700 | 1600 |
| 800 | 10 | 1.0 | 800 | 1400x1350 | 2000x2000 | 4400 | 1400 | 2000x2000 |
| 1.5 | 4500 | 1500 |
| 1.75 | 4600 | 1600 |
| 1000 | 13 | 1.0 | 900 | 1600x1500 | 2200x2200 | 4400 | 1400 | 2200x2200 |
| 1.5 | 4500 | 1500 |
| 1.75 | 4600 | 1600 |
| 1150 | 15 | 1.0 | 1000 | 1750x1500 | 2300x2200 | 4400 | 1400 | 2300x2200 |
| 1.5 | 4500 | 1500 |
| 1.75 | 4600 | 1600 |
Green and Noiseless Design Gives You Healthy Life
Equivalent to that released by Filters PM2.5 to make lift car
The anion it releases is equivalent to that released by a big tree
with the height of 5m.In the meantimeit can sterilize absorb
methanolremoves peculiar
smell&second-hand smoke and filters PM2.5 to make lift car
filled with exceptional fresh air.
The application of a series of intelligent technologies to Tenau
villa not only brings you comfort but also health.
| lnformation Display |
| Hall and car digital position indicator | Running number display |
| Hall and car call/register | Floor display character arbitrary setting |
| Hall and car running direction display | |
| Steady Running |
| Return to base station without call | Pre-torque output |
| Full collective control | Upon elevator floor setting |
| Independentservice | Hoistway self-learning |
| Full-load direct running (LNS] | End station for speed and floor number correction |
| Automatic door switch | Parking |
| Passenger Comfortability |
| Hall and car door setting time | Bypassed stop setting |
| 0pen and close button | lnput port evaluation |
| Automatic ventilation and lighting ofautomatic control in car | Manualty selected floor |
| Cancellation of wrong landing |
The application of a series of intelligent technologies to Tenau
villa not only brings you comfort but also health.
We offer a contactless button, push button, COP, LOP , hall lantern
, segment ,dot matrix , LCD and TFT displays etc.
Shanghai Zan Feng (CZANF) Technology Co., Ltd provides the
customized service and solutions for elevator electrical system and specializes in elevator components. The
product scope ranges from contactless button, push button, COP, LOP , hall lantern , segment ,dot matrix , LCD
and TFT displays , hoistway fixture , intercom system , traveling cables to other spare parts of
elevator.
We pursue the sustainable success with customers. When it comes to
Elevator components, we are about as materials as they come. That’s
because we are in the elevator components many years with very wide
supply system. We are more committed to the intelligent development
of elevators in the near future and becoming the preferred partner
for smart and sustainable city development.
