Die Casting LED Street Light Fixtures IP66 OEM Service Smart Outdoor Luminaire

Product Description:

Aluminium Die Cast YASL-25-240M

1.Aluminium Die Cast Introduction

This Aluminium Die Cast was the latest invention and high quality with TUV CE ENEC CB IP66 and offer 5 years Warranty.

It was made up with Die Casting Aluminium and Tempered glass.

We devoted ourselves to the lighting industry many years, covering most of Europe, Middle East, Asia and Africa Market. We are expecting become your long-term partner in china.

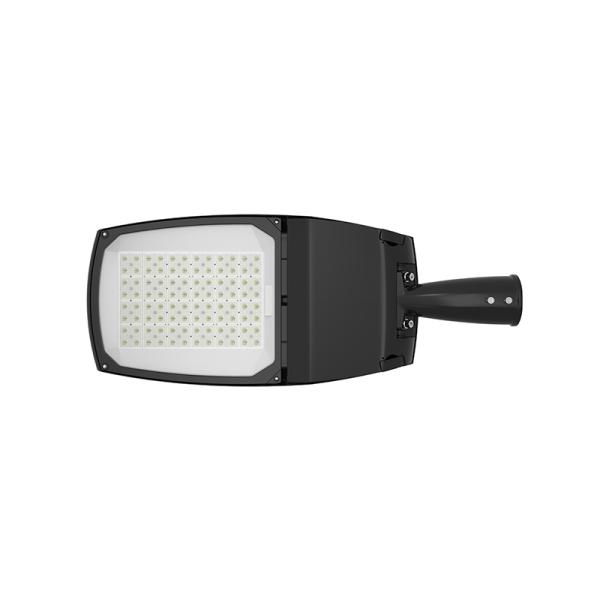

LED Street Light YASL-25M

lnstalling Ways:

Both Horizontal and Vertical available and adjustable angle -15° to +15°

90 degree installation	Front
Back	Side

2.Aluminium Die Cast Specification

Product Code	YASL-25-100M	YASL-25-100M	YASL-25-150M	YASL-25-150M	YASL-25-240M	YASL-25-240M
Input Wattage	50W 60W	100W	120W	150W	200W	240W
Installation Pipe Diameter	φ45/60mm				φ45/60/76mm
Luminous Flux	7800-9000lm	13000-15000lm	15600-18000lm	19500-22500lm	26000-30000lm	31200-36000lm
Color Temperature	2700K 3000K 4000K 5000K 5700K 6500K
Input Voltage	AC90～305V
Frequency Range	50/60Hz
Power Factor	PF≥0.95
color rendering index	Ra≥70
Temperature of Working Condition	-40～50℃
Humidity of Working Condition	20%～90%RH
LED Lifetime	50000h
Protectin Grade	IP66
Protection level	IK08 IK09 IK10
Installation Height	4-8m	6-10m	8-12m	8-12m	10-14m	10-14m
Net Weight	3.8kgs	3.8kgs	5.7kgs	5.7kgs	7.2kgs	7.2kgs
Gross Weight	4.0kgs	4.0kgs	6.0kgs	6.0kgs	7.5kgs	7.5kgs
Packing Size(m m)	680*270*160	680*270*160	820*320*160	820*320*160	920*370*180	920*370*180

3.LED Street Light YASL-25M Product Description

This series is a high-performance street lighting available in three sizes.

The lunimaire is manufactured from high pressure die-casting aluminum.

lt shall have a led efficiency up to 130 lm/w and will be capable of producing.

Up to 26000 luminaire lumens at 4000K finished in Grey or black as standard.

IP66 CE ROHS

Photometric

DH-T1	DH-T3-M	DH-T4-M	DY-T3-M	GY-T2-M01	GX-T2-M	GX-T4-L	HX-T2-S
DH-T2-L	DH-T3-MA	DH-T5-M	GY-T1-M	GY-T3-M01	GX-T3-M	HY-T2-M	HX-T2-M
DH-T2-M	DH-T3-MB	DY-T2-M	GY-T2-M	GX-T2-S	GX-T4-M	HY-T3-M	HX-T3-M

Product Size

Product Code	YASL-25-100	YASL-25-150	YASL-25-240
L(mm)	645	790	890
W(mm)	257	305	361
H(mm)	147	147	163

Die-casting Man is a professional Aluminum die casting manufacturer with 23 years of experience.

It is not only a die casting factory, but also a factory consist of a completed lighting design team, tooling and mold development workshop, auto-painting finishing lines, assembly lines, and completed lighting products testing.

All of the material and finished products will be tested under the ISO9001 quality control system. It has many advanced equipments, such as semi-automatic die cast machines, CNC treatment, and full sets of completed lights IP testing, lumen test ,aging test, and photometric testing equipments. All those facilities make sure the quality is approved by CE, RoHS, TUV certificate.

The team develops new items every year according to different market’s style. The products rang is including LED street light, LED urban light, LED High bay light and LED tunnel light. Their new patent design of led street lights is very popular in the market.

In order to meet more and more requirements of customers, it offers ODM and OEM good service. Welcome to contact the sales and visit die-casting man to discuss face to face.

Let’s work together and do our best to make our world full of green light, make our cities more beautiful.
