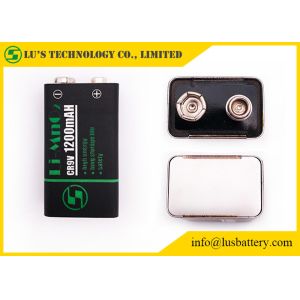

CR9V-P Lithium Battery CR9V/P 9 V / PP3 CR9V-FP Lithium Manganese
Dioxide Battery replacement for LS9V CR9V-J Battery
9V Lithium Battery 1200mAh Li-MnO2 CR9V for Gas Meter
9-volt battery is a consumer-replaceable battery
9 volt lithium battery Descriptions
| Type | Disposable battery | Non rechargeable battery |
| Name | Lithium Manganese Dioxide Battery | Limno2 battery |
| Model | CR9V | CP9V |
| Capacity | 1200mah | Single cell |
| Max. Discharge Current | 300mA | At 23±2℃,battery discharge duration for 3 seconds and stand 27 seconds, it can discharge at least the max
pulse discharge value which rated capacity 50% can permit |
Discharge Cut-off Voltage | 5.4 V | |
| Operating Temperature | -20℃~ +60℃ | Exceed the operating temperature range could lead to battery
operating voltage reduction or even a security risk. |
| storage temperature | -5 ℃~+35℃ | 9.15V~9.75V |
| Storage life | 10 years | Relative humidity Temperature -5 ℃~+35℃ |
| Cell Weight | Approx: 32 g | |
| Self Discharge Rate | 2% | Out of the recommended condition, the self-discharge rate 2% may
increase. |
| Assemblage Dimension | Length:49.0mm Max Width:27.5 mm Max Thickness:17.5 mm Max | Measured weight of 300gf at 25 ℃ ± 1 ℃.Not including battery connecting wire. |
Main points of flexible packaging lithium manganese battery
Flexible package structure design, special negative electrode
structure design, self sealing
diaphragm: improve battery safety;
Special raw material pretreatment: improve battery storage and
comprehensive performance;
Continuous coating technology: improve battery performance,
consistency and reliability;
Special electrolyte formula: improve battery environment,
adaptability and storage
performance;
HRL coating technology: improve battery safety performance and
storage performance;
Battery integrated design technology: to ensure the highest safety
performance of batteries,
comprehensive design of the performance;
Large capacity flexible packaging lithium manganese battery
technology: improve battery
composition, group consistency;
Hybrid battery technology: both high specific energy and high pulse
current performance.
Application:
More of us:
| Model | Maximum Appearance dimensions (mm) | Weight
(g) | Rated voltage
(v) | Rated Capacity
(mAh) | Standard
Discharge Current (mA) | Max.Current (mA) |
| Continuous | Pulse |
| CP042922 | 0.45×29×22 | 0.4 | 3.0 | 15 | 0.5 | 10 | 20 |
| CP042345 | 0.45×23×45 | 0.8 | 3.0 | 30 | 0.5 | 20 | 35 |
| CP104848 | 1.2×49×49 | 3.8 | 3.0 | 350 | 1.0 | 50 | 100 |
| CP142828 | 1.5×29×29 | 1.5 | 3.0 | 100 | 1.0 | 15 | 30 |
| CP153030 | 1.6×31×31 | 1.8 | 3.0 | 120 | 1.0 | 50 | 100 |
| CP155050 | 1.6×51×51 | 6.0 | 3.0 | 650 | 5.0 | 500 | 1000 |
| CP2012120 | 2.0×12×125 | 5.5 | 3.0 | 450 | 1.0 | 100 | 200 |
| CP202850 | 2.2×28.5×50 | 3.6 | 3.0 | 380 | 1.0 | 100 | 200 |
| CP224035 | 2.4×41×36 | 4.8 | 3.0 | 580 | 1.0 | 150 | 300 |
| CP223045 | 2.4×31×46 | 4.2 | 3.0 | 480 | 1.0 | 150 | 300 |
| CP224147 | 2.3×45×49 | 7.0 | 3.0 | 800 | 1.0 | 500 | 1200 |
| CP265045 | 2.8×51×46 | 9.0 | 3.0 | 1200 | 1.0 | 300 | 500 |
| CP264558 | 2.8×46×59 | 9.5 | 3.0 | 1250 | 5.0 | 300 | 500 |
| CP305050 | 3.2×51×51 | 12.5 | 3.0 | 1600 | 5.0 | 600 | 1000 |
| CP401720 | 4.2×18×21 | 2.0 | 3.0 | 220 | 1.0 | 50 | 120 |
| CP401922 | 4.2×20×23 | 2.6 | 3.0 | 300 | 1.0 | 100 | 150 |
| CP405050 | 4.2×51×51 | 17.0 | 3.0 | 2400 | 5.0 | 1000 | 1500 |
| CP451728 | 4.5×18×29 | 3.2 | 3.0 | 380 | 1.0 | 120 | 200 |
| CP502525 | 5.2×26×26 | 4.5 | 3.0 | 600 | 5.0 | 200 | 300 |
| CP502440 | 5.2×25×42 | 8.5 | 3.0 | 1200 | 1.0 | 400 | 800 |
| CP503742 | 5.2×38×43 | 13.0 | 3.0 | 1900 | 5.0 | 800 | 1200 |
| CP504644 | 5.2×47×45 | 17.0 | 3.0 | 2500 | 5.0 | 1200 | 2000 |
| CP505050 | 5.2×51×51 | 22.0 | 3.0 | 3000 | 10.0 | 1500 | 2000 |
| CP602026 | 6.2×21×27 | 4.5 | 3.0 | 550 | 1.0 | 200 | 300 |
| CP701725 | 7.2×18×26 | 4.5 | 3.0 | 520 | 1.0 | 150 | 300 |
| CP783970 | 7.8×39×70 | 36.5 | 3.0 | 5500 | 10.0 | 3000 | 5000 |
| CP7839109 | 7.8×39×109 | 63.0 | 3.0 | 10000 | 10.0 | 3000 | 5000 |
| CP802060 | 8.0×20×60 | 15.5 | 3.0 | 2100 | 10.0 | 2000 | 3000 |
| CP952434 | 9.7×25×35 | 11.5 | 3.0 | 1700 | 5.0 | 500 | 800 |
| CP1003742 | 10.2×38×43 | 26.0 | 3.0 | 3900 | 5.0 | 1200 | 2000 |
