30L Jerry Can Plastic Blow Molding Machine Automatic Extrusion For Flower Pot

Name: 30L Jerry Can Plastic Blow Molding Machine Automatic Extrusion For Flower Pot
Brand: TONGDA
Price: 64 USD

Ask Lasest Price
Brand Name :	TONGDA
Model Number :	TDB-25F
Certification :	CE, ISO9001
Price :	$64,999.00 - $79,999.00/Sets
Payment Terms :	T/T, L/C, D/P, West Union
Supply Ability :	800sets/year
Delivery Time :	28 working days

Add to Cart

Product Details
Company Profile

30L Jerry Can Plastic Blow Molding Machine Automatic Extrusion For Flower Pot

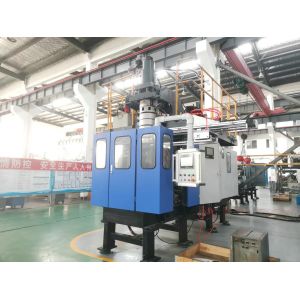

TONGDA TDB-25F Max 30L Jerry Can Making Automatic Extrusion Blow Molding Machine For Flower Pot

Product Description

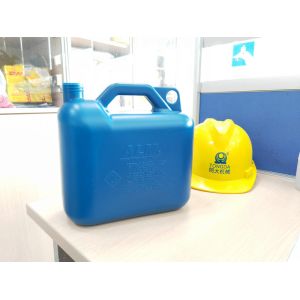

If you want to produce 20L, 25L jerry can, and also the flower pot, our TDB-25F model machine will be a good choice.

This is our most classic and most hot sale series machine, with wide application.

It is suitable for producing up to 30L plastic HDPE jerry cans for the usage of drinking water, chemical, petro-chemical industry, also is suitable for producing irregular shape products such as the water tank for motorcycle, tool box, plastic toys, water pot, etc.

We equip servo motors not only for the hydraulic system, also the plasticizing system use the servo motor.

Servo motors for the hydraulic system and plasticizing system not only save energy, also with quick response.

We use accumulator type die head for this series machine. So Servo motor for the plasticizing system will save a lot energy after the filling is finished, and the product is in shaping period.

Our machines can be customized for your different demand.

Technical Parameters

MODEL	Units	TDB-25F	Remarks: If you have other special requirements,we can provide customized services for you.
Max. Product volume	L	30
Output of HDPE	kg/h	110
Clamping force	kn	215
Screw diametre	mm	80
Total power	kw	91.9
Blow pressure	mpa	0.6
Size of machine	m	4.12.23.5

Product Details

Equipped with servo motor for oil pump, can save about 10 kWh of electricity per hour. The longer cycle of the product, the more significant energy saving effect is. And we use appropriate power, so that the motor works at a suitable speed to extend the service life of the motor and reduce the temperature of the hydraulic oil. If equip with small power, then the motor will keep running at a high speed, the motor will easy be damaged.

Excellent flow channel technology and precise machining accuracy, make the color change and material change more efficient. From dark to white, normally can be completed within 3hours. Much quicker than other suppliers. Save cost for you if you need to produce different color products.

Company Information

Suzhou Tongda Machinery Co., Ltd. is located in Zhangjiagang City, Fenghuang town Korea Industrial Park. 2 hours away from Shanghai City by car. We have more than 23 years experience always specialized in R&D and manufacturing of extrusion blow molding machine.
In the recent 20 years, Suzhou Tongda Machinery Co., Ltd. has been focusing on the research, development and product application of extrusion blow molding machines. The factory covers an area of more than 80 acres of land and has more than 350 employees.
Warmly welcome new and old customers to visit, to guide.

After-sales Service

Before epidemic, we always send engineers to customer's plant to do the service.
During epidemic period, our team have helped customers start up more than 250sets new Tongda machines by online service, to help customer run the machine as soon, our after sales team helped around 3 hours till the mid-night.

Our Machinery has been keeping good cooperative relationship with customers since our establishing.
The satisfaction of our customers are the pursuit of every member of Tongda,The only way we service in the competitive market is to help our customers to full fill their requirement.

FAQ

Q:Is it possible to add a logo on the product and change the date?
A:Yes, we will engrave for you ,including LOGO(Company name ,Date, No,Tel etc... ). We will customize for you.

Q: Can all be labeled?
Yes, according to the customer's bottle type characteristics and labeling requirements, we recommend a suitable labeling machine. Generally, there are in-mold labeling, self-adhesive labeling, hot melt labeling and so on.

Q: Can old molds be used on this machine?
Need to provide the specific information of the old mold, our engineers help confirm whether it can be directly installed on our machine.
