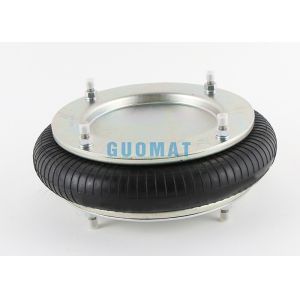

Contitech FS 412-10 DS Industrial Air Spring Gas Inlet G1/2 Single Convolution Air Actuator

Contitech FS 412-10 DS Air Spring Gas Inlet G1/2 Single Convolution Air Actuator

Product Description

Technical data of FS 412-10 DS air spring

Air Inlet / Gas Hole

Gas Hole:G1/2

G1/2=25Nm

Cover Plate of Air Spring

Top Cover Plate Diameter:260mm

Screw Center Distance of Top Cover Plate:232mm

Bottom Cover Plate Diameter:260mm

Screw Center Distance of Bottom Cover Plate:232mm

Blind Nut

Top Cover Plate Screw(Nut)Tooth:4 pieces xM10

Bottom Cover Plate Screw(Nut)Tooth:4 pieces xM10

M10=25 Nm

Rubber Bellow

Rubber Bellow MAX Diameter:330mm

The Working Stroke:MAX 150mm to MIN 50mm

Maximum Height:150mm

Minimum Height:50mm

Compression Height:100mm

Min.pressure-------0 bar

Return force to min height--------≤200N

Replaces These Air Spring(Air Bellows)

CONTITECH : FS 412-10 DS 67962

CONTITECH : FS 412-10 1/2 M10

CONTITECH : FS 412-10 G1/2 M10

CONTITECH : FS 412-10 DS G1/2

CONTITECH : FS 412-10 DS G1/2 M10

CONTITECH : FS 412-10 DS , FS412-10DS , fs 412-10 ds

CONTITECH Bellow : FS 412-10 , FS412-10 , FS41210 , fs 412-10

FIRESTONE Number:W01-R58-4060 , W01 R58 4060 , W01R584060,W01/R58/4060

w01-r58-4060

FIRESTONE Style : 12''x1 , 12x1

DUNLOP FR : 12''X1 SP1540

DUNLOP UK(Pneuride) : PNP 30552 01 20 , PNP 305520120

NORGREN : M31121 , M 31121 , M/31121

Nominal(inch)x convolutions : 12''x1/12x1

Parker : 12''x19109044
