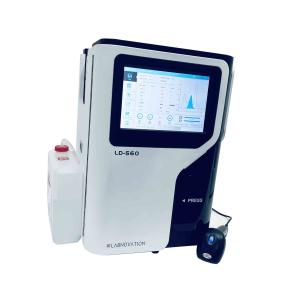

Fully Automated HbA1c Glycated Hemoglobin Analyzer HPLC System Fast Precise

Fully Automated Glycosylated Hemoglobin HbA1c Analyzer HPLC System

High-Pressureliquid Chromatography (HPLC), to separate HbAlc directly with measuring the absor bance points continually to form chromatogram. Using normal distribution curve fitting auto-iterative algorithm to get precise HbAlc testing result, excluding interference of variant and unstable hemoglobin like HbF. Standard Analysis Mode will report HbAla,HbAlb,HbF,HbAlc,LAlc,HbAO peak areas and ratio. And the result also includes IFCC, NGSP and ADAG value for diverse client n eeds.

Performance

---

*HPLC Technology-Gold Standard Methodology

Anchored to the Diabetes Control and Complication Trial (DCCT) reference study NGSP and IFCC certified

*Fast -To Ensure Your Workload is Processed Promptly

HbAlc results in 90 seconds
*Fully Automated-To Minimize Operation Hassles

Automated Piercing
Fully Automated Start-up, Maintenance and Shutdown Internal Auto Barcode Scanner for Sample identification
*Precise and Reliable -To Serve You Consistently

HbAlc Inter & Intra Measuring CV<2％ to Enable Exceptional Result Management Superior Quality Chromatographic Resolution to Minimize Interferences

• 10-30 daily samples
• 90 seconds / Test
• 10” LCD touch screen
• 28 kgs only

Specification

---

Instrument	Manufacturer	Lanovation
	Manufacture location	Shenzhen, China
	Model	LD-560
Dection information	Principle method	HPLC
	Detection method	Dual wavelengh colorimetry
	Wavelength	420nm
	Test Speed	90 Seconds/test
	Test Speed throughtput	40 Samples per hour
Sample information	Sample types	Whole blood or Pre-diluent sample
	Sample volume	5μL in whole blood mode 150μL in pre-diluted mode
	Sample capacity	20 samples
	Sample loading method	Continuous automatic sample loading
	Mixer	No, but probe mixing samples
Reagent and other consumble	Column test quantity	3000T
	Reagent pack	600T(Reagent)/ 3000T(Column) separate
	Eluent	2
Operation and character information	Operation screen	10 inch Full color LCD display
	Data storage	5000
	Built-in Thermal Printer	Yes
Performance information	CV	<2%
	Test range	3.0%~18.0%
Package Information	Dimensions	378(L) ×380(W)×510(H)mm
	Weight	28kg

Product Composition

---

Main Parts

The analyzer consists of an auto sample injection module, a liquid chromatography separation module, a colorimetric detection and control module, a barcode scanning module, and a display printing module.



Reagents and Consumables

The analyzer is recommended to be used in conjunction with the Glycosylated Hemoglobin Test Reagent Kit (high performance liquid chromatography (HPLC method)) produced by our company, which includes the following components:

Eluent A/Eluent B/Eluent C(Variant Mode)	Adjusts the pH of the solution for the elution of glycosylated hemoglobin and non glycated hemoglobin.
Hemolysis Reagent	Used to dissolve red blood cells and release hemoglobin.
Chromatography Column	Used for separation and elution of glycosylated hemoglobin and non glycated.
Hemoglobin Filter	Used to initially filter the sample after hemolysis.
Paper Rolls	Prints a report of the test results.
