    Contitech FT 330-29 431 Triple Convoluted Air Spring Replacement AIRSUSTECH 3B8008 Helper Bags

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 3B8008
    Certification : ISO/TS16949:2009
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    Contitech FT 330-29 431 Triple Convoluted Air Spring Replacement AIRSUSTECH 3B8008 Helper Bags

    Contitech FT 330-29 431 Triple Convoluted Air Spring Replacement AIRSUSTECH 3B8008 Helper Bags


    OEM NO.


    Contitech FT 330-29 431

    Contitech FT 330 29 431

    Contitech FT330-29 431

    Contitech FT330 29 431

    Contitech FT 33029431

    Firestone W01-358-8008

    Firestone W01 358 8008

    Firestone W013588008

    Firestone WO1-358-8008

    Firestone WO1 358 8008

    Firestone WO13588008

    Goodyear 3B12-300

    Goodyear 3B12 300

    Goodyear 3B12300

    Triangle 6334


    Triangle 4431

    Watson&chalin AS-0019
    Watson&chalin AS 0019
    Watson&chalin AS0019
    Daylon 3548008
    Leland Sc2130
    Ridewell 1003588008C
    Silent Drive AS-0019
    Silent Drive AS0019
    Silent Drive AS 0019
    Hendrickson S11637
    Hendrickson NS50 1690
    EZ RIDE 8030155
    SAF Holland 57008008
    Tuthill 6392
    Histeer/Langes

    Specifications and Detailed Technical Parameters: 3B8008

    • Nut/blind nut

    Top plate screw (nut) teeth: 3/8-16UNC, 3/4-16UNC

    Bottom cover plate screw (nut) teeth: 2×3/8-16UNC

    The screw center distance of the Top cover plate: 140 mm

    The screw center distance of the bottom cover plate: 157.5 mm

    • Air hole/air inlet/air fittings

    Air hole/air inlet: 1/4NPTF

    • Rubber Bellows

    Top plate diameter (width): 231 mm

    Diameter (width) of the bottom cover plate: 231 mm

    • Bumper block/bumper block

    Without bumper block

    • Belt loop/Belt loop/Girdle hoop

    With belt loop: Two pieces of belt loop/girdle hoop


    Min. pressure: 0 bar

    Return force to min.height: ≤400N

    Overall weight with clamped plates: 5.9kg


    Pneumatic application-static characteristic values

    Force F[KN]

    Pressure p [bar]345678Vol. V [l]
    Height H[mm]3808.811.915.118.421.725.123.6
    34010.714.418.222.025.929.821.6
    30012.316.520.825.129.533.719.2
    26013.718.222.927.632.336.916.6
    22014.819.524.629.634.639.513.8
    18015.921.126.531.837.242.410.7
    14017.022.428.133.639.144.77.5

    Other Types Of Continental Air Spring Replacement We Could Offer:


    FS 120-9 3/4 M8FD 200-25 427FD 530-35 545
    FS 120-9 1/4 M8FD 200-25 454FD 530-35 720
    FS 200-10 3/4 M8FD 200-25FD 120-17 509
    FS 200-10 1/4FD 200-19FD 40-10
    FS 200-10FD 200-25 453FD 70-13
    FS 70-7 1/4 M8FD 200-25 426FD 120-17
    FS 330-11 474FD 200-25 427FD 200-22 510
    FS 330-11FD 200-25 463FD 200-22 706
    FS 330-11 468FD 200-25 429FT 330-29 546
    FS 330-14FD 200-25 507FT 330-29 547
    FS 330-11 647FD 200-25 511FT 330-29 520
    FS 40-6 1/8 M8FD 200-25 717FT 330-29 430
    FS120-10FD 330-22 363FT 330-29 431
    1B8-580FD 330-22 472FT 330-29 432
    FD 200-19 504FD 330-22 471FT 330-29 433
    FD 200-19FD 330-22 500FT 330-29 469
    FD 200-19 724FD 330-22 313FT 330-29 466
    FD 200-19 539FD 330-22 337FT 330-29 498
    FD 200-19 505FD 330-22 318FT 412-323
    FD 200-19 319FD 330-22 346FT 210-32
    FD 200-19 310FD 330-22 364FD 330-22 364
    FD 200-19 315FD 330-22 365
    FD 200-19 362FD 330-22 366
    FD 200-19 320FD 330-22 367
    FD 200-19 504FD 330-22 331
    FD 200-19 452FD 330-22 368
    FD 200-19 499FD 330-22 327
    FD 200-19 450FD 330-22 343
    FD 200-19 448FD 330-22 334
    FD 200-19 506FD 330-22 363
    FD 200-19 510FD 530-22 321
    FD 200-22 524FD 330-30-371
    FD 200-19 P04FD 331-26-514
    FD 200-19 315FD 331-26-541
    FD 120-20FD 331-26-480
    FD 120-20 509FD 530-35 545
    FD 120-20 509FD 530-35 543
    FD 200-25FD 530-35 530

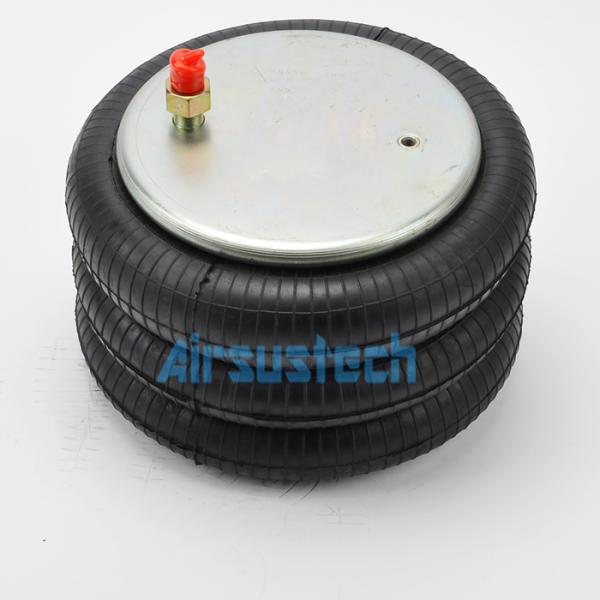

    The related picture of 3B8008
