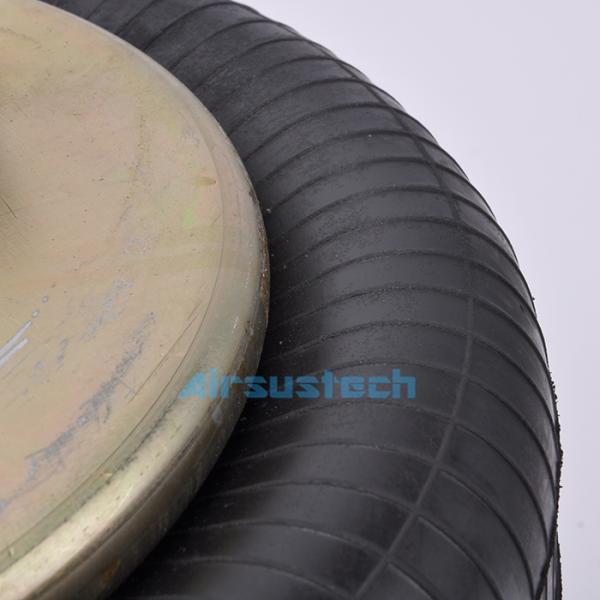

AIRSUSTECH Helper Bags Rubber Double Convoluted Air Spring M12×1.5 Teeth Refer To 2B7550

AIRSUSTECH Helper Bags Rubber Double Convoluted M12×1.5 Teeth Refer to 2B7550 Air Spring

Cross reference

Specifications and Tecnical Data

1. Nut/blind nut Top plate screw (nut) teeth: M12×1.5；M20×1.5

Top plate screw center distance : 157mm

2. Bottom cover plate screw (nut) teeth: 2 x M10

Bottom plate screw center distance : 157 mm
2. Air hole/air inlet/air fitting air hole/air inlet: M12×1.5

The Screw is combined with the Air Inlet
3. Top plate diameter (width): 224.5mm, bottom cover diameter (width): 224.5 mm

4. Rubber bellows Max. diameter: 343mm

5. Min height: 104mm

Max. height: 363mm

6. Bumper block/bumper block with bumper
7. Belt loop/belt loop/girdle hoop: with one piece of belt loop/girdle hoop

Other Double Airride Air Springs we could provide

Use

Air springs are widely used in many industrial industries such as aviation, aerospace, ships, and automobiles. For example, in aviation, the air spring has a large elastic deformation after being loaded, so as to absorb shock and vibration. It can also bear multi-directional loads at the same time, with good shock absorption effect, small resonance area and long service life. Not only has the nonlinear elastic characteristics that the general leaf spring does not have, but also can change the relevant structure to obtain the ideal stiffness characteristics and lower natural vibration frequency.

The related picture of air spring/pneumatic cylinder

Guangzhou Guomat Air Spring Co., Ltd. is located in Guangzhou, about 15min’s drive from Baiyun Airport. Our mainly products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field.

AIRSUSTECH is another brand of Guangzhou Guomat Air Spring Co., Ltd.

AIRSUSTECH is focus on industrial air spring.

GUOMAT Factory gate：

Established in 2008, Our company covers 20,000㎡ and is located in Taihe Town Baiyun District. With the rapid development of our company, we are equipped with modernized workshop and advanced rubber air springs equipments now. We are the first company who started air spring business and has become one of the largest air spring manufacturing bases in China.

In 2017, we launched a collaboration with High Tech of US customers to customize the products of our customers and the logo of our customers. Every year, there are about 10,000 orders. In continuous cooperation, the products meet the international inspection standard ISO/TS16949:2009, and the customers are very satisfied with the products produced. This is our high recognition from American customers and also gives us Great motivation.

In 2018, we started cooperation with German GmbH, mainly industrial air springs, which are suitable for industrial equipment. We have successfully developed and produced the natural air-seal of the skin to reach the 700mm flanged air spring, the customer's annual demand is a few hundred.

With the development of business and demand for customers, our company introduced business with TomLog Corporation in 2010, our strategic cooperative partner in Taiwan. Then we developed air compressor program and air spring related business, in 2015, America Goodyear Corporation met with the transfer of shares in the North American plant, our company was granted with sale agent for air springs in China, providing more choice for our customers. Our company adopts the most advanced domestic air spring processing equipment and international production technology. Combined with unique production process, our company strictly execute international standards for production and spare no efforts to create the world-class products. We will endeavor to make air spring widely used at home and abroad, and let more and more customers to enjoy the best damping effect.
