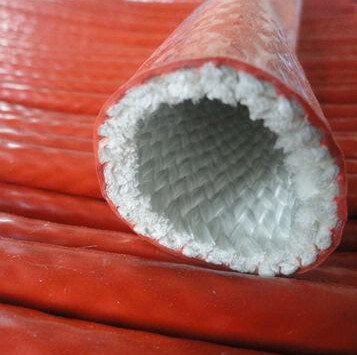

Large Diameter Size Silicone Coated Fiberglass Sleeve Heat Resistant

Large Diameter Size Silicone Coated Fiberglass Sleeving, Heat Resistant Sleeves

Description for High-Temperature Silicone Rubber Fiberglass Sleeving

High Voltage Silicone Rubber Extruded Fiberglass Sleeving has many uses and is recommended for the insulation of leads and connections in electrical and electronic components (transformers, coils, relays, solenoids, etc.) where temperature extremes from -70°C through 200°C are encountered. It's made with a combination of silicone and rubber extruded onto a braided fiberglass sleeving.

Operation Temperature

Continuous Operating Temperature: -65 ° C - 260 ° C

15-20 minutes: 1090 ° C

15-30 seconds: 1650 ° C

Technique Data

Features:

The silicone rubber-coated sleeving is the only flexible insulating material appropriate for continuous service in ambient temperatures from -70°C through +200°C.

environmental: Resistant to moisture, corona, ozone, radiation, compression set, fungi, most chemicals and solvents, weathering, flex fatigue and thermal degradation.
Flammable: Burn slowly and even under severe fire conditions, the coating maintains its electrical integrity by forming non-conductive ash.

Application:

silicone rubber bushings are used in appliances, motors, and generators as well as automotive, marine, and aircraft electrical and electronic components such as transformers, coils, relays, etc. that require a 200°C thermal rating. In addition to being ideal for heavy-duty insulation in high-temperature environments such as die-casting and plastic molding, Vargas Silicone Rubber Sleeves are also suitable for extremely low-temperature environments such as high altitude and aerospace applications.

The Other Types Recommended:

SHENGHE(CHANGSHU) ENVIRONMENTAL TECHNOLOGY CO., LTD is a professional manufacturer and exporter of fiberglass products in China. Shenghe Fiberglass is located in the production base of glass fiber products in Suzhou Province. We have a professional production R&D team, We can determine the technical parameters according to the samples required by customers, and customize the same or similar samples. Te rapid new product development and promotion help us to develop nearly 20 kinds of products. The main products include “Electronic Industry Fabric Series”, “Fireproof Fabric Series”, “Coated Fiberglass Cloth”,’’ High Silica Fiberglass Cloth”, and” Welding Blanket”, etc.

We are an integrated industrial production, including fiberglass yarn drawing, spinning, Advanced High-Speed weaving equipment (150 units), coating equipment (10 units), sewing machines, etc. And passed the ISO9001-2015 quality and environmental certification, quality certification. The plant covers an area of 50,000 square meters, with a monthly production capacity of 5 million square meters. It has exported and serviced products to 200 countries and regions.

We always adhere to the principle of target quality first and are committed to becoming the world's leading supplier and solution provider for the composite material industry. We sincerely invite customers at home and abroad to work together for common development and create a better future.
