    Fuel Management System 4G GPS Tracker With Ultrasonic Fuel Sensor

    Ask Lasest Price
    Brand Name : Topshine(Support OEM/ODM)
    Model Number : 4G VT1000
    Certification : ce, RoHS
    Price : $75.00/Sets
    Payment Terms : T/T, Western Union, MoneyGram,paypal
    Supply Ability : 100000 Piece/ per Month
    Delivery Time : 1-8 work days
    • Product Details
    • Company Profile

    Fuel Management System 4G GPS Tracker With Ultrasonic Fuel Sensor

    Fuel Management System 4G GPS Tracker With Ultrasonic Fuel Sensor


    We offer new fuel monitoring solution, except the accurate fuel report for fleet management purpose, it supports fuel stolen alarm, when the tank lose fuel in a short time, we will be informed immediately via SMS/ computer.


    We don't need to worry about our fuel to be theft, we can tracking the fuel consumption online, which will save your cost at large scale, at the same time, improve your efficiency for fleet management or taxi dispatch.


    Benefits

    - Reduce fuel consumption;

    - Reduction of fuel cost;

    - More security and safety;

    - Prove of fuel consumption;

    - Improve work efficiency;

    - Improve fleet management and cost control




    Features of Topshine 4G tracker VT1000 Multi functions:
    Hardware Features:
    1 Frenquencies LTE-FDD B1/B3/B5/B8
    B1/B3/B5/B7/B8/B20/B28
    LTE-TDD B34/B38/B39/B40/B41
    B38/B40/B41
    GSM B3/B8 B2/B3/B5/B8
    2 High Performance External Antennas
    3 Digital 5 Inputs
    4 Digital 5 Output
    5 RS232 or RS485 interface for ibutton reader or temperature sensor or weight sensor
    6 Built-in Backup 1000mAh Battery
    7 Real-time Tracking by Web and APP
    8 OTA
    9 Dual core CPU
    10 9V to 90V DC power supply
    11 Fatigue driving monitoring (OP)
    12 Vehicle collision and harsh driving alarm (OP, need connect CAN box)

    Software Features:
    1 Real time tracking by Web and APP
    2 Geo-fence
    3 History report and Playback
    4 Fuel consumption/ leak / adding report (Support at most 5 RS232 connection sensors)
    5 Temperature monitoring (Support at most 4 channel temperature sensors)
    6 Weight sensor (0 to 100T. Above 100T need customization)
    7 Location Report
    8 Mileage Overview and Mileage Month report
    9 Parking report
    10 Ignition Status report
    11 Rotation sensor report
    12 Device Online/Offline report Daily and Monthly
    13 Engine idle report
    14 Sub user management
    Technical Parameters:
    Product name
    4G GPS tracker VT1000
    Power Voltage
    +9V - +90V / 1.5A
    Backup Battery
    850mAh
    Dimension
    130*68*30
    Weight
    197g
    Operating temperature
    -20° to 75° C
    Humidity
    5% to 95% Non-condensing
    GSM module
    Legal IMEI & CE
    CPU
    ARM9 high speed microcontroller
    GPS Sensitivity
    -158Db
    GPS Frequency
    L1, 1575.42 MHz
    C/A Code
    1.023 MHz chip rate
    Channels
    20 channel all-in-view tracking
    Position Accuracy
    10 meters, 2D RMS
    Velocity Accuracy
    0.1 m/s
    Time Accuracy
    1 us synchronized to GPS time
    Default datum
    WGS-84
    Reacquisition
    0.1 sec., average
    Hot start
    1 sec., average
    Warm start
    38 sec., average
    Cold start
    42 sec., average
    Altitude Limit
    18,000 meters (60,000 feet) max.
    Velocity Limit
    515 meters/second (1000 knots) max.
    LED
    2 LED lights to show GPS/GSM working status.
    Flash Memory
    4MB
    Interface
    5 digital inputs, 5 output,4 analog input ,1 microphone port ,1 speaker port ,1 camera port ,1 RS23 port ,1 USB port
    Features

    * Tracking by SMS/GPRS (TCP/UDP)
    * Tracking by time/distance interval
    * OTA Function
    * Real time tracking via the web-platform
    * Get position location via call/SMS
    * Engine on/off detection
    * Built-in backup 950 mAh battery
    * Remote Engine cut off to stop the car in safe condition
    * ARM9 high speed microcontroller
    * Wiretapping/remote listening
    * Get location physical name via SMS & from the web-platform
    * Google Map link for location via SMS, it shows your location on map via mobilephone.
    * Mileage calculation with longitude and latitude via SMS; view mileage data via GPS web-based tracking centre system
    * Door open/close status detecting/ control
    * Built-in motion sensor for power & GPRS flow saving mode (sleep mode)
    * Built-in 4MB memory & position logging capacity up to 26,000+ waypoints even noGPRS signal

    Multiple alarms and optional features:
    * Over speed alert
    * Geo-fence alert
    * Power failure/low power alert
    * SOS Panic button, SOS alert
    * Engine on alarm (optional)
    * Door open/close status detecting/ control
    * Harsh braking and harsh acceleration alarm
    * Oil leaking/Refuel Alarm (need fuel sensor support) (optional)
    * Accident alarm (need crash sensor support) (optional)
    * Limit the vehicle speed (Optional)
    * OBDII connector to diagnonsis vehicle data (Optional)
    * Two way communication (Listen & Speak, need speaker support) (optional)
    * Support 4G SD card store data and pictures (optional)
    * Photo with location & driving information log function (need camera support)(optional)
    * Can equip with RFID kit for driver identification and auto Arm/Disarm functions (movement/towed alert, ignition alert, auto cut off engine etc) (need RFID support)(optional)
    * Analog input for Temperature & Fuel sensor detecting/monitoring, support max 4 fuel sensor manage (optional)


    Accessories

    Standard accessories

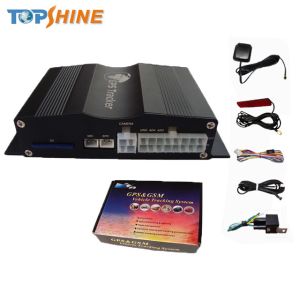

    1 pc main unit VT1000-4G
    1 pc GSM antenna
    1 pc GPS antenna
    1 pc 12v/24v relay
    1 pc 16pin wiring
    1 pc microphone
    1 pc built in battery
    Optional accessories
    Ultrasonic fuel sensor
    Cuttable fuel sensor
    Temperature sensor
    Crash sensor
    Weight sensor
    Passive RFID reader & card
    Active RFID reader & tag
    OBDii connector
    Speed limiter
    Camera
    SD card
    Speaker
    LCD screen
    Siren
    Configure USB cable
