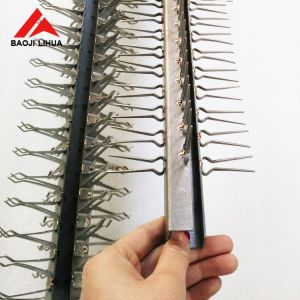

Titanium wire clips rack for andized rack
Product Name:Titanium wire
Standard: ASMT B863,AWS A5.16
Material: Gr1, Gr2 ,Gr3, Gr4,Gr5, Gr7,Gr12
Unit Price: $21.5usd/kg-$60usd/kg
Shape: Straight, Spool, Coil
Diameter: 0.8mm/1mm/1.2mm/1.6mm/2mm/2.4mm/3mm/3.2mm etc.
Surface: Pickling,polishing,sand-blasting
MOQ:10kgs
Factory Area:3000 ㎡
Company staff:48
Foreign trade team service staff:20
China's professional titanium wire manufacturer
Dimension Tolerance of titanium wire:
| Diameter | 0.1-0.3mm | 0.3-0.8mm | 0.8-2.0mm | 2.0-6.0mm |
| Tolerance | +/- 0.025 | +/-0.04 | +/-0.05 | +/-0.10 |
| Length | 200-500mm | 500-1000mm | 1000-2000mm | &2000mm |
| Tolerance | +/-1.0 | +/-1.5 | +/-2.0 | +/-2.5 |
Detailed images of titanium wire:
Other titanium wire type :
| Chemical composition |
| Grade | Essential component<= | Impurities <= |
| Ti | Al | Mn | V | C | O | N | H | Fe |
| ERTi-1 | Remainder | — | — | — | 0.03 | 0.03-0.10 | 0.012 | 0.005 | 0.08 |
| ERTi-2 | Remainder | — | — | — | 0.03 | 0.08-0.16 | 0.015 | 0.008 | 0.12 |
| ERTi-3 | Remainder | — | — | — | 0.03 | 0.13-0.20 | 0.02 | 0.008 | 0.16 |
| ERTi-4 | Remainder | — | — | — | 0.03 | 0.18-0.32 | 0.025 | 0.008 | 0.25 |
| ERTi-5 | Remainder | 5.5-6.75 | — | 3.5-4.5 | 0.05 | 0.12-0.20 | 0.03 | 0.015 | 0.22 |
| ERTi-23 | Remainder | 5.5-6.5 | — | 3.5-4.5 | 0.03 | 0.03-0.11 | 0.012 | 0.005 | 0.2 |
Titanium wires used for welding wire:
Quality Assurance:
1. Titanium wire is manufactured by globally recognized standards,
such as ASMT B863,AWS A5.16.
2. Factory will do quality testes for each batch titanium wire:
Mechanical properties,chemical composition,Microstructure
3. The Third Party Quality Test is available: SGS,BV,TUV
Packaging and shpping:
Inside are plastic oblong boxes for protection of goods, 5KGS per
box. Outside are plywood case conforming to international export
standards. Ensure the goods are in good condition when the customer
receives them.
Production Process of titanium wire:
Titanium sponge→compacting electrodes→melting→forging→bar
billets→hot rolling→cold draw→titanium wires
Surface quality: high precision, good finish, no oxidation color, no cracks,
peeling, thorns, marks and inclusions. Minor
local scratches, abrasions, spots and pits that do not exceed the
allowable deviation of the wire diameter are allowed.
