Ebay 8 -Bit Single Convergence Row Belt Lid 100A Car Ship General
BUS Bar Large Current Exchange Line
JULUN electronics is a provider of electronic components, design
and development services for electronic manufacturing enterprises.
The supply chain is integrated, optimized and efficient. Service
products: protection components, fuse and fuse holder series,
series resistance, capacitor series, and other services, covering a
wide range of industrial electronics, communications equipment,
consumer electronics, automotive electronics, mobile phone
applications.
The company's business philosophy is to continue to create value
for customers, continue to optimize front-end marketing and
logistics support team, as the industry supply chain professional
partners. Provide value-added services such as requirements
creation, solutions, technical support, warehousing, logistics and
e-commerce. Meet customer requirements of original equipment
manufacturers, original design manufacturers, electronic
manufacturing service providers and small and medium enterprises.
In order to better serve customer of Lun Lun company, Zhuo Lun has
set up branch and office in China, Hongkong, China, Southern China,
central China, East China and so on. Welcome to inquire and
cooperate.
Product Presentation

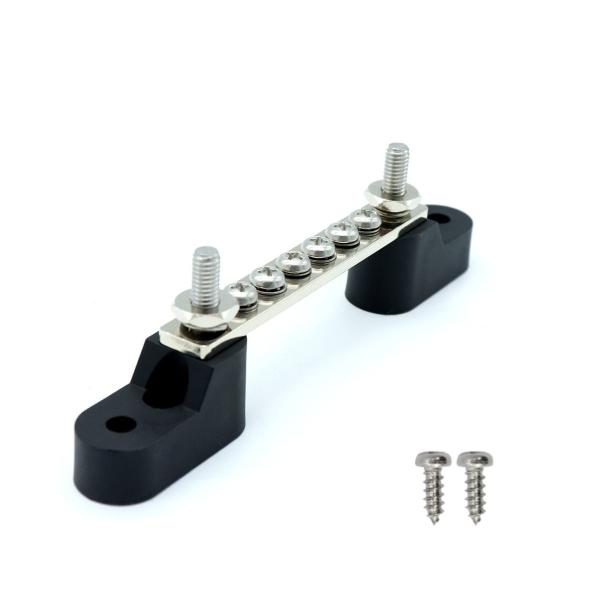

Product Name: Single Converted Flow Venture Ship GM 100A+Cover
Sticker Screw
Product model: P3614C-6P
Product specifications: 6 M4 (5/32 ") screws, 2 m6 (1/4") bolts
Continuous current: 100A
Product material: bolt: tin -plated brass base: fire prevention
plastic
"1. Large voltage, large current, wide range of use, high safety
factor.
2. Flame retardant material plastic, escort your safety.
3. There are diverse specifications to choose from, fine
workmanship
4. Suitable for trucks, RVs, travel cars, and on board "
Features:
1. Nylon and fiber base, sturdy and durable
2. The transparent dust cover is attached to the groove and
sticker, which is convenient to identify
3. Big -current copper bar can reach 100A (brass)
4. Stainless steel screw nuts to ensure that the sea is not rusty
5. The bottom plate is insulating, and it will not leak electricity
when it is installed on a metal ship/car body.
"
Instructions for use: 6 M4 in the middle, 2 M6 next to the BUS BAR
set current, lock on the M4 nuts with the R -end of M4, and then
use a relatively thick line to lock on the M6 at both ends with the
M6 R -end. On the thread, the current current is gathered to the
battery or a larger flow of flow.
