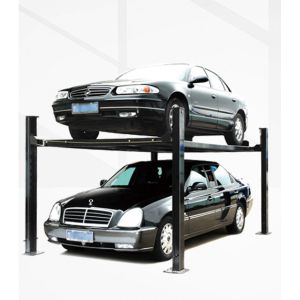

Four Post Parking Lift
Description
This park lift can be used for family, apartments, hotels and other
places; it can be designed based on site dimensions; 1 car space
will park two cars to save more spaces; it can be installed both
inside room and outside; For family use, it can provide 220V power;
it can be used both for parking and repairing cars; Special-made
for SUV.
Product characteristics
Hydraulic driven, steel rope lifting system.
Single stage dual-cylinder lifting.
High polymer polyethylene slide blocks, wear-resistance.
Platform runway & ramps made of diamond steel plates.
Movable galvanized steel plates in the middle.
Anti-falling mechanical locks in four posts at different heights to
ensure safety.
Steel parts are sandblasted then anti-corrosion primer painted and
top finish color coated.
Advantages
1. Hydraulic drive, steel rope lift, hydraulic system makes the
system very low noise and steady working;
2. Single unlocked by manual or four sides unlocked automatically
with anti-fall devices; the anti-fall blocks installed in the
columns will prevent the car platform to fall informally to insure
safety of the car;
3. Self-lubrication bearing to guarantee the safety at any height;
4. Slippery runways and the traction plate for convenient use; the
distance between two runways plates are fixed, there is movable
plate to receive oil in the middle;
5. Appearance with high quality painting, green environment
protection without lead, beautiful color, anti-rust painting for
long time use;
6. This park lift is convenient and reliable, easy operation, quick
installation, simple installation at site, no welding, no cutting,
low requirements of land area; and it is movable, easy
re-installation to adapt all sites;
7. Lift weight can reach 3mt for double cars parking;
8. Steel parts are sandblasted then anti-corrosion primer painted
and top finish color coated
Technical Parameters
| (Lifting Capacity) | 2700Kg | 2700 Kg | 3600 Kg | 3600 Kg |
| (Max Lifting Height) | 1800 mm | 2000 mm | 1800 mm | 2000 mm |
| (Drive through) | 1966 mm |
| (Middle of runway) | Moveable galvanized steel plates |
| (Lock Release) | Manual Unlock / electric unlock |
| (External dimension) | 4920 x 2922 x 2328 mm |
| (Rise/Drop Time) | 70 S / 60 S |
| (Power Supply/Motor Capacity) | 220 V/ 380 Vf 50 Hz/60 Hz, 1 Ph / 3 Ph , 2.2 Kw |
