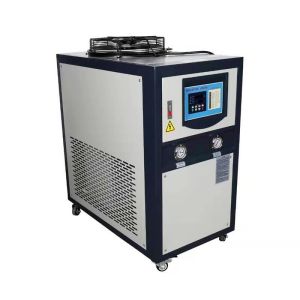

    Air-cooled Industrial Water Chiller R407C Refrigerant OCM-A For Plastic Injection Gray

    Ask Lasest Price
    Brand Name : ORSTE
    Model Number : OCM- 5A
    Certification : CE, ISO, SGS
    Price : 2,500~4,100 USD/Set
    Payment Terms : TT, LC, Paypal, West Union, Cash
    Supply Ability : 500-3000 Sets / Year
    Delivery Time : 7-15 days
    • Product Details
    • Company Profile

    Air-cooled Industrial Water Chiller R407C Refrigerant OCM-A For Plastic Injection Gray

    Air-cooled Industrial Water Chiller R407C Refrigerant OCM-A For Plastic Injection Gray

    OCM-A Air-cooled Cooling Machine Industrial Chille...


    Product Features


    • Cooling range is from 7 to 25oC.
    • Insulated water tank is made of stainless steel.
    • Anti-freezing thermostat is standard equipped.
    • R22 high-efficient refrigerant is adopted in OMC-A series. Refrigeration loop controlled by high and low pressure switches ensures good cooling effect.
    • Overload protection is standard equipped for compressor and pump.
    • Precise temperature controller with an accuracy of ±1oC is adopted.
    • Low pressure pump is standard equipment.
    • Brand compressor with low noise level, low energy-consumption and long service life is employed.
    • Fin style condenser with excellent heat transfer and rapid cooling is adopted, no need of cooling water.

    Application


    Mold cooling machine is used to shorten the products molding cycle, it is also applicable in cooling of equipment in order to maintain a required temperature. Besides, it is suitable for other industry fields with similar cooling requirement.


    Product Specification / Parameters


    Parameters

    OCM-5A

    OCM-10A

    OCM-20A

    Refrigeration Capacity

    kcal/hr

    12410

    25596

    52350

    kw

    14.3

    29.42

    60.6

    Refrigerant

    R22

    Evaporator

    Type

    Box evaporator

    Water Tank Capacity (L)

    58

    150

    310


    Condenser

    Type

    High-efficient copper tube Fin style

    Compressor

    Type

    Entire seal vortex type or piston type

    Power (kw/hp)

    3.75/5

    7.5/10

    15/20

    Water Pump

    Power (kw)

    0.37

    1.5

    2.25

    Head (m)

    10

    21

    39

    Flow (L/Min)

    100

    360

    650

    Total Power (kw)

    4.12

    9

    17.25

    Dimension

    L (mm)

    1100

    1500

    1950

    W (mm)

    630

    800

    1300

    H (mm)

    1000

    1520

    2950

    Weight (kg)

    355

    550

    815


    Other Advantages


    • We apply LCD control displays which can simultaneously displays temperature figure of the cold water and the set temperature in control panel. It is easy to operate with accuracy of controlling water temperature within 5℃ to 30℃ (for special requirement, the min. temperature can reach -5 degrees without freezing).
    • We use world famous brand compressors which features lower noise and less vibration, efficient, stable and energy saving in use.
    • The shell and tube evaporator and condensor adopt high-precision internal threaded copper tube design with larger heat exchanging area for higher efficiency and maximizing system performance.
    • We use well-known brand pumps with large working range, low noise, reliable performance and no leakage and maintenance-free in all our OCM chillers.
    • Instead of using capillary copper tube, our application of aviation hose is resistant to high temperature and high pressure, and will not cause refrigerant leakage due to excessive pressure, it is safer and more reliable than normal copper tubes.

    Application Cases




    Air-cooled cooling machine is convenient for movement, flexible for different applications. There is no need outer water circulation for cooling the heat back from the mold. The heat is evaporated throught the fan at the top of the OCM-A. If OCM-A is placed outside the factory, extra shelter is a must for preventing the rain or water from entering and damaging the machine., just like the simple shelter in the above picture.


    Company Vision


    With the principle of customer satisfaction first, we take contribution to society as our responsibility and constantly improve the performance of our products to timely seize the latest trend in industry, and maintain the best quality and technological edge of products.


    “No Details, No Success.” The key of product quality lies in the details, we focus on details in product production and quality management. Through proactive listening, delicate service, modest attitude, ORSTE Machinery always maintains close contact with its customers.
