P2.5 Signage Flexible Soft Video Wall Curved Commercial LED Display
Screen
Quick Detail:
1. First-class LED chip.Supplied by Nichia of Japan & other high
strictly selected LED chip to ensure the long lifetime and high
brightness
2. High Contrast ratio: above 2000:1 .very high level to ensure a
vivid image of our LED display screen system
3. Clear vivid image quality.more than 120 degree in horizontal and
vertical to ensure you attract more audience to get short ROI of
your LED display screen's investment
4. Long-term Brightness:use high quality led chip and lamp to
ensure led display can last 11 years with low Lumens depreciation.
5.High definition. led display with high resolution to keep good
video effect
Description:
1. Light weight: it can be loaded by one person, quick assembling,
quick maintain, reduce. carrying, save costs.
2. Thin cabinet:the thickness is only 6.5 CM, the space of the
screen is small , and the entire screen will be more beautiful.
3. Flat screen:smooth surface error is under 0.2cm, it can remove
the mosaic phenomenon .effectively. The effect of the display will
be more clear and exquisite.
Specification:
| Specificaion | Indoor p2.5 soft module |
| Pixel pitch(mm) | 2.5 |
| Pixel Density(dot/m2) | 160000 |
| Bending time | 1000 without break |
| LED configue | 1r1c1b |
| LED type | SMD1515 |
| Brightness(cd/n2) | 1100 |
| Drive mode | 16s |
| Drive IC | FM6363 |
| Grayscale | 14 bit |
| Refresh Rate(HZ) | 1920 |
| Frame Rate(HZ) | 60 |
| Brightness Ajustment | manual/automatic/remote control |
| Color Temperatur | 9000±500k |
| Best Viewing Distanc | ≥4m |
| Module dimension(mm) | 320x160x7 |
| Module weight(kg/pc) | 0.2 |
| Mdoule Resolution(dot) | 96x48 |
| Cabinet Dimension | Randomly splicing |
| Working Voltage | AC 220 |
| Avg. Power Consumption (w/m2) | 260 |
| Max. power Consumption (w/m2) | 600 |
| Serive access | Front and rear |
| Ip grade | IP 30 |
| Working Environment(℃/%RH) | -20~60℃/10~90%RH Without condensation |
| Storage Environment ( ℃/%RH) | -40~80℃/ 10~90%RH |
| Lifetime (H) | Lifetime (H) |
| Compliant Standard | CCC,CE |

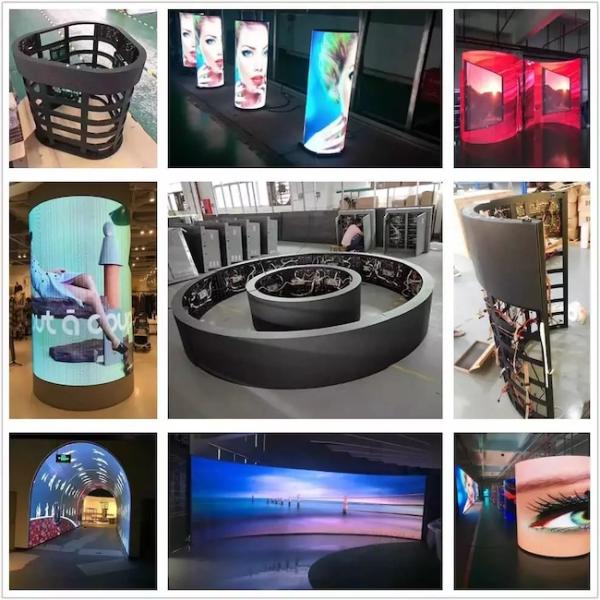

Product Image:
Advantage:
Flexible and bendable
The flexible chassis and soft cover design enable user to bend it
freely, so it can be assembled at any any uneven or irregular
locations.
Super thin and light
MANNLED Flexible LED Sign is one of the thinnest & lightest LED
signs in the world with special materials and advanced technology.
Every module is only 9mm thick and has a weight of 280g.
Very easy to splice, install and maintain
Modularization design and no other connected cables make the
installation so easy.
User just mounts iron sheet or magnetic product on the surface in
the first, then stick
the Flexible LED sign on the surface .
High brightness
MANNLED Flexible LED Sign makes use of the high-brightness SMD method,
which makes it tremendously excellent in luminance, uniformity,
maintainability compared with the traditional LED dot-matrix
displays.
Wide application
Enterprise reception ,appliances stores, sports stores, exhibition
hall of fairs , cosmetics counters , shopping
mall. banking, financial securities, post office, ferry, shopping
malls, railway stations, telecommunications, government, offices,
monitoring, schools, restaurants, hotels, entertainment.
Features:
1. High brightness Contrast:4000:1, which is a very high level to
ensure a vivid image of our LED display screen system
2. First-class LED chip: Supplied by Cree & other high strictly
selected LED chip to ensure the long lift-time and high brightness
of our LED display screen system
3. Clear vivid image quality even in direct, full-on sunlight to
ensure you attracts more audience to get short ROI of your LED
display screen's investment.
Function:
1.Show all kinds of word, text, graph, pictures, flashes,
video,2-dimension, 3-dimension cartoon and any other formats with
your PC synchronously.
2. Different signal resources input are acceptable, such as TV,
HCTV, S-video, NTSC/PAL,DVI, AVI, VGA, SDI, MOV, MPG, etc.We have
three display modes as VGA+VIDE and VGA. There are also interfaces
for Sound signal and video signal.
3.10 BIT grade grey control system and the color is over 16.7
millions, and the brightness, contrast, saturation, chromic can be
adjusted by manual and sensor, whose scope is 256 grade
4. It can be used in advertisement, stage, stadium, exhibition,
TV-Show,mansion video wall, shopping mall, banks, schools, bus
station, airport, gym, market, factories, monitoring centers,
hospitals, bars etc.
Our Service:
1. Your inquiry related to our products or prices will be replied
in 24hrs.
2. Well-trained and experienced staffs to answer all your enquires
in fluent English .
3. OEM&ODM, any your customized screen we can help you to
design and put into product.
4. Distributoer ship are offered for your unique design and some
our current models .
5. Protection of your sales area, ideas of design and all your
private information .
Why choose us?
1. Diversified products:
Varieties of models for outdoor/indoor LED display screens, and
customized cabinets available, meet all requirements and win more
profits for customers.
2. Quality assurance: Quality control is taken both in product
design and production. As the quantity of PCB and other components
have been decreased and simplified. Our engineers can concern in a
small quantity of defect to solve and it will be a substantial
boost of the yield rate. 100% testing before packing make sure our
quality before delivery.
3. Best raw materials: High quality, good stability and
reliability.
4. Competitive price: Factory price which is competitive in the
market.
Trade Terms:
1. Packing: Anti-shaking wooden cabinet /Air flight case/carton.
2. Shipping port: Shenzhen. China.
3. Shipping freights are quoted according to your requests.
4. Delivery time:5-15 working days.
5. 2 years warranty ,lifelong maintaining. In the Maintenance
period, free of all maintenance charges. After Maintenance
period,only charge the material costs fees.
FAQ:
QI:Can I have a sample order?
A:Yes,we welcome sample order to test and check quality mixed
samples are acceptalbe.
Q2:What about the lead time?
A: Sample needs 5-7 days, mass production time needs 12-15 days.
Q3:How can we guarantee quality?
A:Always a pre-production sample before mass production;Always
final inspection before shipment.
Q4:What can you buy from us?
A:Led display modules,LED display screens .LED display series.
Q5;Why should you buy from us not other suppliers ?
A:Shenzhen mannled optoelectronic co.,ltd. is a independent
research and development,production,sales and service as one of the
integrated high-tech enterprise,specializing in the production all
kinds of LED display series.
