E2B Cylindrical Proximity Sensor PROX INDUCTIVE 4MM CYLIND E2B-M12KS04M1C2

Product Description

E2B Cylindrical Proximity Sensor PROX INDUCTIVE 4MM CYLIND E2B-M12KS04M1C2

Perfect fit for standard environments

• Embody two seemingly contradictory characteristics: value-formoney and high reliability

• All 372 Models

• Four different sizes: M8, M12, M18 and M30

• Single and double sensing distances, Shielded and unshielded

• A choice of short and long bodies, two connecting methods and four output types

• Operating temperature: –25ºC to 70ºC

• Water resistance: IP67

• With an all-round 360º visible indicator

Specification :Sensor PROX INDUCTIVE 4MM CYLIND E2B-M12KS04M1C2

Category	Sensors, Transducers
	Proximity Sensors - Industrial
Mfr	Omron Automation and Safety
Series	E2B
Package	Bulk
Product Status	Active
Sensor Type	Inductive
Sensing Distance	0.157" (4mm)
Output Type	NPN-NC, 3-Wire
Response Frequency	1kHz
Shielding	Shielded
Material - Body	Nickel-Plated Brass
Voltage - Supply	10V ~ 30V
Termination Style	Connector
Operating Temperature	-25°C ~ 70°C
Ingress Protection	IP67
Indicator	LED
Package / Case	Cylinder, Threaded - M12
Base Product Number	E2B-M12

E2B Cylindrical Proximity Sensor Ordering information:

		Connecting
		Sensing	Body	Output
Size		method		Operation mode NO	Operation mode NC
		distance	length	configuration
		(See note 1.)
		PNP		E2B-S08KS01-WP-B1 2M	E2B-S08KS01-WP-B2 2M
		Short
		NPN		E2B-S08KS01-WP-C1 2M	E2B-S08KS01-WP-C2 2M
		Pre-wired
		PNP		E2B-S08LS01-WP-B1 2M	E2B-S08LS01-WP-B2 2M
		Long
		NPN		E2B-S08LS01-WP-C1 2M	E2B-S08LS01-WP-C2 2M
	Shielded
	1.5 mm		PNP	E2B-S08KS01-MC-B1	E2B-S08KS01-MC-B2
		Short
		M8 Connec-	NPN	E2B-S08KS01-MC-C1	E2B-S08KS01-MC-C2
		tor (3-pin)	PNP	E2B-S08LS01-MC-B1	E2B-S08LS01-MC-B2
		Long
			NPN	E2B-S08LS01-MC-C1	E2B-S08LS01-MC-C2
Single
		PNP		E2B-S08KN02-WP-B1 2M	E2B-S08KN02-WP-B2 2M
		Short
		NPN		E2B-S08KN02-WP-C1 2M	E2B-S08KN02-WP-C2 2M
		Pre-wired
		PNP		E2B-S08LN02-WP-B1 2M	E2B-S08LN02-WP-B2 2M
		Long
		NPN		E2B-S08LN02-WP-C1 2M	E2B-S08LN02-WP-C2 2M
	Unshielded
	2	mm	PNP	E2B-S08KN02-MC-B1	E2B-S08KN02-MC-B2
		Short
		M8 Connec-	NPN	E2B-S08KN02-MC-C1	E2B-S08KN02-MC-C2
		tor (3-pin)	PNP	E2B-S08LN02-MC-B1	E2B-S08LN02-MC-B2
		Long
M8			NPN	E2B-S08LN02-MC-C1	E2B-S08LN02-MC-C2
(Stainless steel)
		PNP		E2B-S08KS02-WP-B1 2M	E2B-S08KS02-WP-B2 2M
(See note 2.)		Short
		NPN		E2B-S08KS02-WP-C1 2M	E2B-S08KS02-WP-C2 2M
		Pre-wired
		PNP		E2B-S08LS02-WP-B1 2M	E2B-S08LS02-WP-B2 2M
		Long
		NPN		E2B-S08LS02-WP-C1 2M	E2B-S08LS02-WP-C2 2M
	Shielded
	2	mm	PNP	E2B-S08KS02-MC-B1	E2B-S08KS02-MC-B2
		Short
		M8 Connec-	NPN	E2B-S08KS02-MC-C1	E2B-S08KS02-MC-C2
		tor (3-pin)	PNP	E2B-S08LS02-MC-B1	E2B-S08LS02-MC-B2
		Long
			NPN	E2B-S08LS02-MC-C1	E2B-S08LS02-MC-C2
Double
		PNP		E2B-S08KN04-WP-B1 2M	E2B-S08KN04-WP-B2 2M
		Short
		NPN		E2B-S08KN04-WP-C1 2M	E2B-S08KN04-WP-C2 2M
		Pre-wired
		PNP		E2B-S08LN04-WP-B1 2M	E2B-S08LN04-WP-B2 2M
		Long
		NPN		E2B-S08LN04-WP-C1 2M	E2B-S08LN04-WP-C2 2M
	Unshielded
	4	mm	PNP	E2B-S08KN04-MC-B1	E2B-S08KN04-MC-B2
		Short
		M8 Connec-	NPN	E2B-S08KN04-MC-C1	E2B-S08KN04-MC-C2
		tor (3-pin)	PNP	E2B-S08LN04-MC-B1	E2B-S08LN04-MC-B2
		Long
			NPN	E2B-S08LN04-MC-C1	E2B-S08LN04-MC-C2
		Connecting
		Sensing	Body	Output
Size		method		Operation mode NO	Operation mode NC
		distance	length	configuration

		PNP		E2B-M12KS02-WP-B1 2M	E2B-M12KS02-WP-B2 2M
		Short
		NPN		E2B-M12KS02-WP-C1 2M	E2B-M12KS02-WP-C2 2M
		Pre-wired
		PNP		E2B-M12LS02-WP-B1 2M	E2B-M12LS02-WP-B2 2M
		Long
		NPN		E2B-M12LS02-WP-C1 2M	E2B-M12LS02-WP-C2 2M
	Shielded
	2	mm	PNP	E2B-M12KS02-M1-B1	E2B-M12KS02-M1-B2
		Short
		M12	NPN	E2B-M12KS02-M1-C1	E2B-M12KS02-M1-C2
		Connector	PNP	E2B-M12LS02-M1-B1	E2B-M12LS02-M1-B2
		Long
			NPN	E2B-M12LS02-M1-C1	E2B-M12LS02-M1-C2
Single
		PNP		E2B-M12KN05-WP-B1 2M	E2B-M12KN05-WP-B2 2M
		Short
		NPN		E2B-M12KN05-WP-C1 2M	E2B-M12KN05-WP-C2 2M
		Pre-wired
		PNP		E2B-M12LN05-WP-B1 2M	E2B-M12LN05-WP-B2 2M
		Long
		NPN		E2B-M12LN05-WP-C1 2M	E2B-M12LN05-WP-C2 2M
	Unshielded
	5	mm	PNP	E2B-M12KN05-M1-B1	E2B-M12KN05-M1-B2
		Short
		M12	NPN	E2B-M12KN05-M1-C1	E2B-M12KN05-M1-C2
		Connector	PNP	E2B-M12LN05-M1-B1	E2B-M12LN05-M1-B2
		Long
			NPN	E2B-M12LN05-M1-C1	E2B-M12LN05-M1-C2
M12 (Brass)
		PNP		E2B-M12KS04-WP-B1 2M	E2B-M12KS04-WP-B2 2M
		Short
		NPN		E2B-M12KS04-WP-C1 2M	E2B-M12KS04-WP-C2 2M
		Pre-wired
		PNP		E2B-M12LS04-WP-B1 2M	E2B-M12LS04-WP-B2 2M
		Long
	Shielded		NPN	E2B-M12LS04-WP-C1 2M	E2B-M12LS04-WP-C2 2M
	(See note 2.)	4 mm	PNP	E2B-M12KS04-M1-B1	E2B-M12KS04-M1-B2
		Short
		M12	NPN	E2B-M12KS04-M1-C1	E2B-M12KS04-M1-C2
		Connector	PNP	E2B-M12LS04-M1-B1	E2B-M12LS04-M1-B2
		Long
			NPN	E2B-M12LS04-M1-C1	E2B-M12LS04-M1-C2
Double
		PNP		E2B-M12KN08-WP-B1 2M	E2B-M12KN08-WP-B2 2M
		Short
		NPN		E2B-M12KN08-WP-C1 2M	E2B-M12KN08-WP-C2 2M
		Pre-wired
		PNP		E2B-M12LN08-WP-B1 2M	E2B-M12LN08-WP-B2 2M
		Long
		NPN		E2B-M12LN08-WP-C1 2M	E2B-M12LN08-WP-C2 2M
	Unshielded
	8	mm	PNP	E2B-M12KN08-M1-B1	E2B-M12KN08-M1-B2
		Short
		M12	NPN	E2B-M12KN08-M1-C1	E2B-M12KN08-M1-C2
		Connector	PNP	E2B-M12LN08-M1-B1	E2B-M12LN08-M1-B2
		Long
			NPN	E2B-M12LN08-M1-C1	E2B-M12LN08-M1-C2

		Connecting
		Sensing	Body	Output
Size		method		Operation mode NO	Operation mode NC
		distance	length	configuration
		(See note 1.)
		PNP		E2B-M18KS05-WP-B1 2M	E2B-M18KS05-WP-B2 2M
		Short
		NPN		E2B-M18KS05-WP-C1 2M	E2B-M18KS05-WP-C2 2M
		Pre-wired
		PNP		E2B-M18LS05-WP-B1 2M	E2B-M18LS05-WP-B2 2M
		Long
		NPN		E2B-M18LS05-WP-C1 2M	E2B-M18LS05-WP-C2 2M
	Shielded
	5	mm	PNP	E2B-M18KS05-M1-B1	E2B-M18KS05-M1-B2
		Short
		M12	NPN	E2B-M18KS05-M1-C1	E2B-M18KS05-M1-C2
		Connector	PNP	E2B-M18LS05-M1-B1	E2B-M18LS05-M1-B2
		Long
			NPN	E2B-M18LS05-M1-C1	E2B-M18LS05-M1-C2
Single
		PNP		E2B-M18KN10-WP-B1 2M	E2B-M18KN10-WP-B2 2M
		Short
		NPN		E2B-M18KN10-WP-C1 2M	E2B-M18KN10-WP-C2 2M
		Pre-wired
		PNP		E2B-M18LN10-WP-B1 2M	E2B-M18LN10-WP-B2 2M
		Long
		NPN		E2B-M18LN10-WP-C1 2M	E2B-M18LN10-WP-C2 2M
	Unshielded
	10	mm	PNP	E2B-M18KN10-M1-B1	E2B-M18KN10-M1-B2
		Short
		M12	NPN	E2B-M18KN10-M1-C1	E2B-M18KN10-M1-C2
		Connector	PNP	E2B-M18LN10-M1-B1	E2B-M18LN10-M1-B2
		Long
			NPN	E2B-M18LN10-M1-C1	E2B-M18LN10-M1-C2
M18 (Brass)
		PNP		E2B-M18KS08-WP-B1 2M	E2B-M18KS08-WP-B2 2M
		Short
		NPN		E2B-M18KS08-WP-C1 2M	E2B-M18KS08-WP-C2 2M
		Pre-wired
		PNP		E2B-M18LS08-WP-B1 2M	E2B-M18LS08-WP-B2 2M
		Long
	Shielded		NPN	E2B-M18LS08-WP-C1 2M	E2B-M18LS08-WP-C2 2M
	(See note 2.)	8 mm	PNP	E2B-M18KS08-M1-B1	E2B-M18KS08-M1-B2
		Short
		M12	NPN	E2B-M18KS08-M1-C1	E2B-M18KS08-M1-C2
		Connector	PNP	E2B-M18LS08-M1-B1	E2B-M18LS08-M1-B2
		Long
			NPN	E2B-M18LS08-M1-C1	E2B-M18LS08-M1-C2
Double
		PNP		E2B-M18KN16-WP-B1 2M	E2B-M18KN16-WP-B2 2M
		Short
		NPN		E2B-M18KN16-WP-C1 2M	E2B-M18KN16-WP-C2 2M
		Pre-wired
		PNP		E2B-M18LN16-WP-B1 2M	E2B-M18LN16-WP-B2 2M
		Long
		NPN		E2B-M18LN16-WP-C1 2M	E2B-M18LN16-WP-C2 2M
	Unshielded
	16	mm	PNP	E2B-M18KN16-M1-B1	E2B-M18KN16-M1-B2
		Short
		M12	NPN	E2B-M18KN16-M1-C1	E2B-M18KN16-M1-C2
		Connector	PNP	E2B-M18LN16-M1-B1	E2B-M18LN16-M1-B2
		Long
			NPN	E2B-M18LN16-M1-C1	E2B-M18LN16-M1-C2
		Connecting
		Sensing	Body	Output
Size		method		Operation mode NO	Operation mode NC
		distance	length	configuration
		(See note 1.)
		PNP		E2B-M30KS10-WP-B1 2M	E2B-M30KS10-WP-B2 2M
		Short
		NPN		E2B-M30KS10-WP-C1 2M	E2B-M30KS10-WP-C2 2M
		Pre-wired
		PNP		E2B-M30LS10-WP-B1 2M	E2B-M30LS10-WP-B2 2M
		Long
		NPN		E2B-M30LS10-WP-C1 2M	E2B-M30LS10-WP-C2 2M
	Shielded
	10	mm	PNP	E2B-M30KS10-M1-B1	E2B-M30KS10-M1-B2
		Short
		M12	NPN	E2B-M30KS10-M1-C1	E2B-M30KS10-M1-C2
		Connector	PNP	E2B-M30LS10-M1-B1	E2B-M30LS10-M1-B2
		Long
			NPN	E2B-M30LS10-M1-C1	E2B-M30LS10-M1-C2
Single
		PNP		E2B-M30KN20-WP-B1 2M	E2B-M30KN20-WP-B2 2M
		Short
		NPN		E2B-M30KN20-WP-C1 2M	E2B-M30KN20-WP-C2 2M
		Pre-wired
		PNP		E2B-M30LN20-WP-B1 2M	E2B-M30LN20-WP-B2 2M
		Long
		NPN		E2B-M30LN20-WP-C1 2M	E2B-M30LN20-WP-C2 2M
	Unshielded
	20	mm	PNP	E2B-M30KN20-M1-B1	E2B-M30KN20-M1-B2
		Short
		M12	NPN	E2B-M30KN20-M1-C1	E2B-M30KN20-M1-C2
M30 (Brass)
		Connector	PNP	E2B-M30LN20-M1-B1	E2B-M30LN20-M1-B2
		Long
			NPN	E2B-M30LN20-M1-C1	E2B-M30LN20-M1-C2
		PNP		E2B-M30KS15-WP-B1 2M	E2B-M30KS15-WP-B2 2M
		Short
		NPN		E2B-M30KS15-WP-C1 2M	E2B-M30KS15-WP-C2 2M
		Pre-wired
		PNP		E2B-M30LS15-WP-B1 2M	E2B-M30LS15-WP-B2 2M
		Long
	Shielded		NPN	E2B-M30LS15-WP-C1 2M	E2B-M30LS15-WP-C2 2M
	(See note 2.)	15 mm	PNP	E2B-M30KS15-M1-B1	E2B-M30KS15-M1-B2
		Short
		M12	NPN	E2B-M30KS15-M1-C1	E2B-M30KS15-M1-C2
Double
		Connector	PNP	E2B-M30LS15-M1-B1	E2B-M30LS15-M1-B2
		Long
			NPN	E2B-M30LS15-M1-C1	E2B-M30LS15-M1-C2
		PNP		E2B-M30LN30-WP-B1 2M	E2B-M30LN30-WP-B2 2M
		Pre-wired Long
		NPN		E2B-M30LN30-WP-C1 2M	E2B-M30LN30-WP-C2 2M
	Unshielded	30 mm
		M12	PNP	E2B-M30LN30-M1-B1	E2B-M30LN30-M1-B2
		Long
		Connector	NPN	E2B-M30LN30-M1-C1	E2B-M30LN30-M1-C2

E2B Accessories (Order Separately)

Sensor	I/O Connectors
	Size	Cable	Shape	Cores	Cable length (m)	Model
					2	XS3F-M8PVC3S2M
		Straight
					5	XS3F-M8PVC3S5M
	PVC
					2	XS3F-M8PVC3A2M
			Right-angle
					5	XS3F-M8PVC3A5M
M8 (3-pin)				3
					2	XS3F-M321-302-R
		Straight
					5	XS3F-M321-305-R
	PVC Robot
					2	XS3F-M322-302-R
			Right-angle
					5	XS3F-M322-305-R
					2	XS2F-M12PVC4S2M
		Straight
					5	XS2F-M12PVC4S5M
	PVC
					2	XS2F-M12PVC4A2M
			Right-angle
					5	XS2F-M12PVC4A5M
	M12 (4-pin)			4
					2	XS2F-D421-D80-F
		Straight
					5	XS2F-D421-G80-F
	PVC Robot
					2	XS2F-D422-D80-F
			Right-angle
					5	XS2F-D422-G80-F

Ratings and Specifications
Size		M8
Sensing
		Single	Double
distance
Type	Shielded	Unshielded	Shielded	Unshielded
Item	Model	E2B-S08@S01	E2B-S08@N02	E2B-S08@S02
Sensing distance	1.5 mm ± 10%	2 mm ± 10%	2 mm ± 10%	4 mm ± 10%
Setting distance	0 to 1.2 mm	0 to 1.6 mm	0 to 1.6 mm	0 to 3.2 mm
Differential travel	10% max. of sensing distance
Detectable object	Ferrous metal (The sensing distance decreases with non-ferrous metal.)
Standard sensing object
8	× 8 × 1 mm	8 × 8 × 1 mm	8 × 8 × 1 mm	12 × 12 × 1 mm
(mild steel ST37)
Response frequency (See note 1.)	2,000 Hz	1,000 Hz	1,500 Hz	1,000 Hz
Power supply voltage	10 to 30 VDC. (including 10% ripple (p-p))
Current consumption	10 mA max.
	-B models: PNP open collector
Output type
	-C models: NPN open collector
Load current
200	mA max. (30 VDC max.)
Control output	(See note 2.)
Residual voltage	2 V max. (under load current of 200 mA with cable length of 2 m)
Indicator	Operation indicator (Yellow LED)
Operation mode	-B1/-C1 models: NO
(with sensing object approaching)	-B2/-C2 models: NC
	Output reverse polarity protection, Power source circuit reverse polarity protection, Surge suppressor,
Protection circuit
	Short-circuit protection
Ambient air temperature	Operation and storage : -25 to 70ºC (with no icing or condensation)
Temperature influence	±10% max. of sensing distance at 23ºC within temperature range of -10 to 55ºC
(See note 2.)	±15% max. of sensing distance at 23ºC within temperature range of -25 to 70ºC
Ambient humidity	Operation and Storage: 35 to 95%
Voltage influence	±1% max. of sensing distance in 24 VDC ±15%
Insulation resistance	50 MΩ min. (at 500 VDC) between current-carrying parts and case
Dielectric strength	1,000 VAC at 50/60 Hz for 1 min between current-carrying parts and case
Vibration resistance	10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y and Z directions
Shock resistance	500 m/s2, 10 times each in X, Y and Z directions
Standard and listings	(1) IP67 (IEC60529)	(2) EMC (EN60947-5-2)
	Pre-wired models (standard is 4 mm dia. PVC cable with length = 2 m, 5 m).
Connecting method
	Connector models (M8-3pin)
Weight	Pre-wired model	Short body: Approx. 65 g, Long body: Approx. 65 g
(packaged)	Connector model	Short body: Approx. 20 g, Long body: Approx. 20 g
Case	Stainless steel (1.4305 (W.-No.), SUS 303 (AISI), 2346 (SS).)
Sensing surface	PBT
Material	Cable	Standard cable is 4 mm dia. PVC.
Clamping nut	Brass-nickel plated
Toothed washer	Zinc-plated iron

Product Tags:

E2B Cylindrical Proximity Sensor

4MM Cylindrical Proximity Sensor

E2B-M12KS04M1C2

E2B Cylindrical Proximity Sensor PROX INDUCTIVE 4MM CYLIND E2B-M12KS04M1C2

Low Power 3 Axis MEMS Accelerometer 2.25V Analog Devices Inc. ADXL359

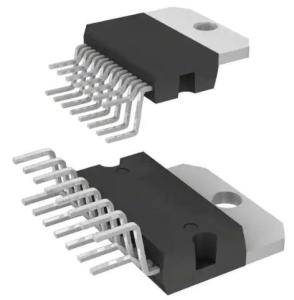

TDA7297 STMicroelectronics Audio Amplifier IC 15 Multiwatt Through Hole Mount

31-220G-RFX Electronic Component Connector IC Chips Adapter Coaxial

TCRT5000L TCRT5000 Reflective Optical Sensor Infrared Photoelectric Switch

SMPM 3221-40071 Electronic Component Connector SOCKET CONTACT Coax Gold

Company Info.

Guangzhou Topfast Technology Co., Ltd.

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Send your message to this supplier

*From:
Your email address is incorrect!
To: Guangzhou Topfast Technology Co., Ltd.
*Subject:
Your subject must be between 10-255 characters!
*Message:
For the best results, we recommend including the following details: --Self introduction --Required specifications --Inquire about price/MOQ Your message must be between 20-3,000
Yes! I would like your verified suppliers matching service!

All Categories

E2B Cylindrical Proximity Sensor PROX INDUCTIVE 4MM CYLIND E2B-M12KS04M1C2

E2B Cylindrical Proximity Sensor PROX INDUCTIVE 4MM CYLIND E2B-M12KS04M1C2

E2B Cylindrical Proximity Sensor PROX INDUCTIVE 4MM CYLIND E2B-M12KS04M1C2

E2B Accessories (Order Separately)

E2B Cylindrical Proximity Sensor

4MM Cylindrical Proximity Sensor

E2B-M12KS04M1C2

E2B Cylindrical Proximity Sensor PROX INDUCTIVE 4MM CYLIND E2B-M12KS04M1C2

You May Like

Low Power 3 Axis MEMS Accelerometer 2.25V Analog Devices Inc. ADXL359

TDA7297 STMicroelectronics Audio Amplifier IC 15 Multiwatt Through Hole Mount

31-220G-RFX Electronic Component Connector IC Chips Adapter Coaxial

TCRT5000L TCRT5000 Reflective Optical Sensor Infrared Photoelectric Switch

SMPM 3221-40071 Electronic Component Connector SOCKET CONTACT Coax Gold


*From:	Your email address is incorrect!
*To:	Guangzhou Topfast Technology Co., Ltd.
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!
