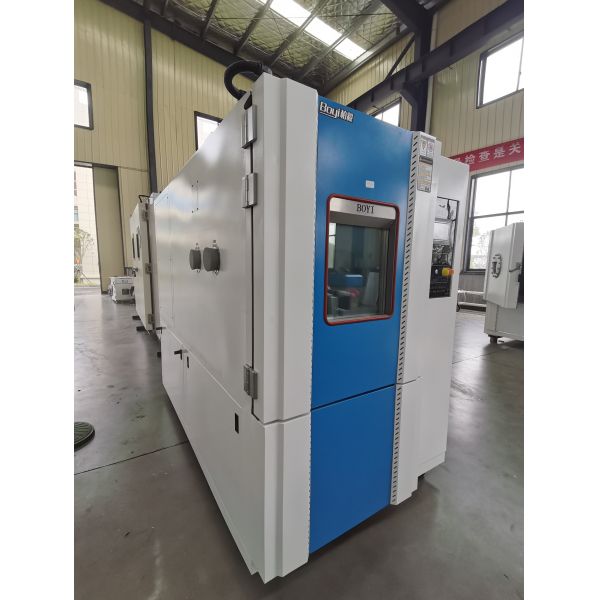

504L -70℃~150℃ Rapid temperature change Test Chamber
TH-XX-X series depends on different temperature and volume needs.
XX represents the volume of the chamber and it can be
80,120,225,408,504,800 and 1000.
X represents the low temperature of the temp range and it can be A
0℃,B -20℃, C -40℃,D -60℃ and E -70℃.
| Model | B-TH-80 | B-TH-120 | B-TH-225 | B-TH-408 | B-TH-504 | B-TH-800 | B-TH-1000 |
| Volume (V) | 80 L | 120L | 225L | 408L | 504L | 800L | 1000L |
| Temperature range | A: 0°C ~150°C B:-20°C~150°C C: -40°C~150°C D: -60°C~150°C E: -70°C~150°C Customized temperature is available. |
BOTO product characteristics:
1.The import of compressors and refrigeration accessories by the
well-know brands in the national boundaries ensures the stability
of the refrigeration system.
2.The cause of the faults can be displayed and the reason is easy
to exclude.
3.The special air supply cycle design, the temperature and humidity
distribution uniformity is good.

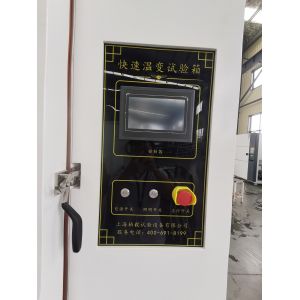

4.The whole series of imported microcomputer controllers are
colored. Color touch screen, Chinese and English system, can be
used as a function of setting the city value. It can show the cause
of the trouble, exclude easy, super quiet design, effectively
reduce the running noise of the equipment, and
5.Super quiet design, effectively reduce the running noise of the
equipment.
6.Multiple safety protection, refrigerant high voltage protection,
compressor overload protection, current overload protection, over
temperature protection, leakage protection.
Standards: GB/T2423/5170/10586, JIS C60068, ASTM D4714, CNS3625/12565/12566
Technical specification:
| Model | B-TH-504 |
Inner chamber size W×H×D(cm) | 70×90×80 |
Outside Size W×H×D(cm) | 100X180X103 |
| Volume (V) | 504L |
| Temperature range | A: 0°C ~150°C B:-20°C~150°C C: -40°C~150°C D: -60°C~150°C E: -70°C~150°C Customized temperature is available. |
| Humidity range | RH20%-98% Customized humidity is available. |
| Function | Fluctuation | ±0.5°C ±2.5%RH |
| Deviation | ±0.5°C-±2°C ±3%RH(>75%RH); ±5%RH(≤75%RH) |
Controller Analytical Accuracy | ±0.3°C ±2.5%RH |
| Wind Cycling Way | Centrifugal fan-broadband type forced air circulation |
| Refrigeration Way | Single stage compression refrigeration |
| Refrigerator | French Tecumseh |
| Refrigerants | R4O4A USA DuPont environmental protection refrigerant(R23+R404) |
| Condensing Way | Air-cooled or water-cooled |
| Water Supplying Way | Automatic cycling water supply |
| Safety device | Non- fuse-switch(compressor overload, refrigerant high low voltage, over-humidity and temperature protection, Protection switch,fuse stoppage warning system |
Heating and cooling rate: can be customized.
Factory tour:
Detail display:
BOTO ADVANTAGE
Customers photos
Looking forward to your cooperation and welcome to join us!
We're also vendor of TSLA, UL, SGS,etc.
Our Services
During the whole business process, we offer Consultative Selling
service.
1) Customer inquiry process:
Discussing testing requirements and technical details, suggested
suitable products to customer to confirm. Then quote most suitable
price according to customer requirements.
2) Specifications customize process:
Drawing related drawings to confirm with customer for customized
requirements. Offer reference photos to show the products
appearance. Then, confirm the final solution and confirm final
price with customer.
3) Production and delivery process:
We will produce the machines according to confirmed PO
requirements. Offering photos to show production process.
After finish production, offer photos to customer to confirm again
with the machine. Then do own factory calibration or third party
calibration(as customer requirements). Check and test all the
details and then arrange packing.
Deliver the products in confirmed shipping time and inform
customer.
4) Installation and after sale service:
Defines installing those products in the field and providing
after-sales support.
