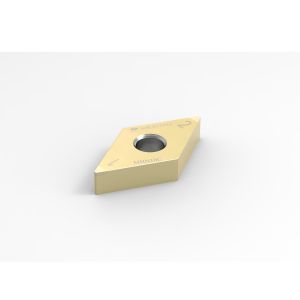

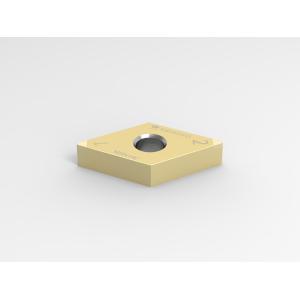

    DNGA150408 PCBN Cutting Inserts For Machining Of Hardened Steel

    Ask Lasest Price
    Brand Name : ManaNova
    Model Number : DNGA 150408
    Certification : ISO9001,14001.18001, RoHS
    Price : $20-40/ Piece
    Payment Terms : L/C, T/T, D/A, D/P
    Supply Ability : In stock
    Delivery Time : 3-4days
    • Product Details
    • Company Profile

    DNGA150408 PCBN Cutting Inserts For Machining Of Hardened Steel

    DNGA150408 Coated CBN Carbide Turning Insert PCBN Cutting Insert for hardened steel


    Especially coated PCBN insert is suitable for continuous to the heavy interrupted cutting of hardened steel

    and has excellent universal performance.


    Advantages:
    · Easy choice
    · Fast delivery


    Description:

    MANANOVA is the sub-brand of WORLDIA, positioned as a high-end standard series,

    we strictly choose PCD and PCBN materials to provide the universal cutting effect.


    MANANOVA takes “Easy choice and Fast delivery” as the feature, which intends to provide fast and efficient

    service for domestic and foreign customers to meet their demand for standardized and universalized tools.


    Main products:

    PCD insert is suitable for rough and finish machining of aluminum alloy and other non-metal materials.

    PCD:

    Providing stable, universal, high efficient cutting effect.


    PCBN insert is suitable for machining hardened steel, gray cast iron, ductile iron, and powder metallurgy.
    Polycrystalline cubic boron nitride(CBN) :

    1. With an excellent hot hardness that can be used at very high cutting speeds.

    2. Good toughness and thermal shock resistance.CBN tools are ideal for the use with

    hardened steel, cast irons, and sintered irons as well as powder metallurgy components.



    Service:
    · Online store service
    · Local distributor support
    · Technical support


    Application:

    MHN10CApplied to the continuous cutting of hardened steel
    MHN20CApplied to medium interrupted cutting of hardened steel
    MHN30CApplied to the heavy interrupted cutting of hardened steel
    MKN10Applied to the cutting of gray cast iron
    MKN20Applied to the cutting of ductile iron
    MSN10Applied to the cutting of powder metallurgy
    MSN20Applied to the cutting of powder metallurgy

    Specification:


    MaterialISO HISO KISO S
    PCBN GradeMHN10CMHN20CMNH30CMKN10MKN20MSN10MSN20
    SmoothModerateToughnessCast IronDuctile IronPowder MetallurgyPowder Metallurgy
    Vc180(150~250)
    m/min
    100(50~150)
    m/min
    80(30~120)
    m/min
    600(300~800)
    m/min
    300(150~450)
    m/min
    300(200~500)
    m/min
    500(300~800)
    m/min
    fn0.1(0.03~0.2)
    mm/r
    0.1(0.03~0.2)
    mm/r
    0.1(0.03~0.2)
    mm/r
    0.1(0.03~0.3)
    mm/r
    0.1(0.03~0.3)
    mm/r
    0.1(0.03~0.3)
    mm/r
    0.1(0.03~0.3)
    mm/r
    %45~5560~7085~9585~9560~7060~7085~95
    Grain size1~2 um1~2 um2~3um2~3 um1~2 um1~2 um2~3 um
    BondTiCTiNCo/WCo/WTiCNTiCNCo/W

    DNGAShapeDimensions
    ANSI CodeISO CodeTipsIC
    mm
    S
    mm
    R
    mm
    Φd
    mm
    LE
    mm
    All
    Stocked
    DNGA 431DNGA 1504042N12.74.760.45.162.2
    DNGA 432DNGA 1504082N12.74.760.85.162.2
    DNGA 433DNGA 1504122N12.74.761.25.162.2
    DNGA 441DNGA 1506042N12.76.350.45.162.2
    DNGA 442DNGA 1506082N12.76.350.85.162.2
