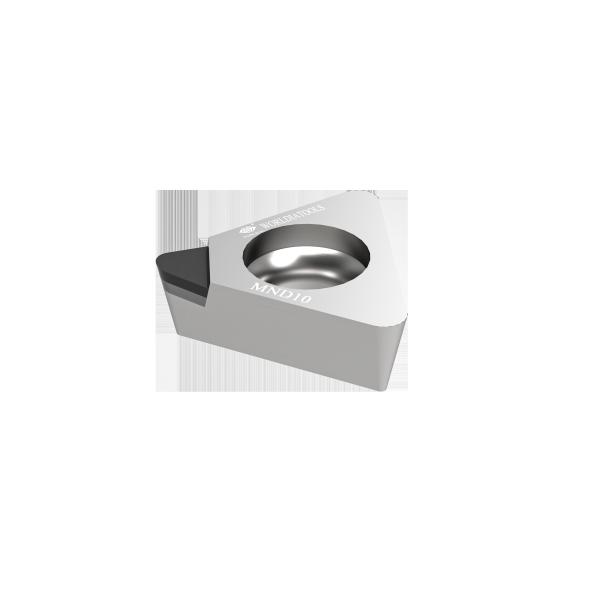

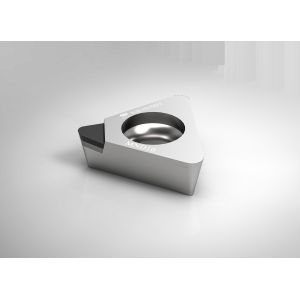

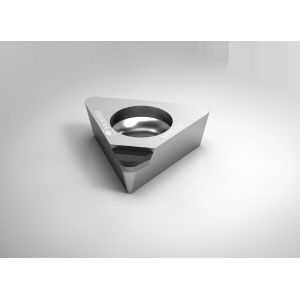

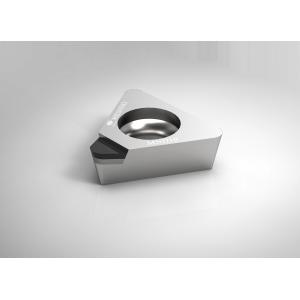

    ISO9001 Polycrystalline Diamond Inserts Metal Matrix Composites TPGT Insert

    Ask Lasest Price
    Brand Name : ManaNova
    Model Number : TPGT 110308
    Certification : ISO9001,14001.18001, RoHS
    Price : $20-40/ Piece
    Payment Terms : L/C, T/T, D/A, D/P
    Supply Ability : In stock
    Delivery Time : 3-4days
    • Product Details
    • Company Profile

    ISO9001 Polycrystalline Diamond Inserts Metal Matrix Composites TPGT Insert

    TPGT 110308 Standard Carbide Turning Insert PCD Cutting Insert for non-ferrous materials


    WORLDIA:


    WORLDIA pays special attention to the making of Standard Super Hard Cutting Tools.

    And we have made a tremendous amount of technical innovations in designing and manufacturing

    PCBN/PCD/CVD inserts and related products.


    Description:


    The critical feature of ManaNova is Easy choice and Fast delivery.
    "Easy choice" is easy to choose according to the comparison table and application.
    "Fast delivery" is all the ManaNova PCD Inserts in the catalog are available in stock.

    Eliminating force majeure, you can get within 4-5 days.


    Main products:

    PCBN insert is suitable for machining of hardened steel, gray cast iron, ductile iron, and powder metallurgy.

    Especially coated PCBN insert is suitable for continuous to the heavy interrupted cutting of hardened steel

    and has excellent universal performance.


    PCD insert (MND10 material ) is suitable for rough and finish machining of aluminum alloy and other non-metal

    materials. The four edge types are standard, chip breaker, full length, and full face.



    Advantages:


    ·High quality

    ·Low cost

    ·Factory direct supply


    Service:
    · Online store service
    · Local distributor support
    · Technical support


    Application:

    MND10Suitable for the cutting of non-ferrous materials such as aluminum alloys, etc.

    PCD tools are limited to non-ferrous materials, such as high-silicon aluminum, metal matrix composites (MMC), and carbon fiber reinforced plastics (CFRP).
    PCD with flood coolant can also be used in titanium super-finishing applications.
    ·Aluminum and aluminum alloys
    ·Copper, brass, and bronze alloys
    ·Zinc and magnesium alloys
    ·Carbon Fiber
    ·Epoxy resins
    ·Plastics
    ·Fiberglass composites
    ·Graphite composites


    Specification:

    AngleDimensionsGrade
    ANSI CodeISO CodeTipsIC
    mm
    S
    mm
    R
    mm
    Φd
    mm
    LE
    mm
    MND
    10
    TPGT 22.50.5TPGT 1103021N6.353.180.23.32.5
    TPGT 22.51TPGT 1103041N6.353.180.43.32.5
    TPGT 22.52TPGT 1103081N6.353.180.83.32.5
    TPGT 330.5TPGT 1604021N9.5254.760.24.42.5
    TPGT 331TPGT 1604041N9.5254.760.24.42.5

    Feed rate recommendation
    Nose radius(mm)Ra um
    0.20.40.81.63.26.4
    Feed Rate f (mm/rev)≤
    0.20.0280.0400.0570.0800.1130.160
    0.40.0400.0570.0800.1130.1600.226
    0.80.0570.0800.1130.1600.2260.320
    1.20.0690.0980.1390.1960.2770.392
    1.60.0800.1130.1600.2260.3200.453
    2.40.0980.1390.1960.2770.3920.554
