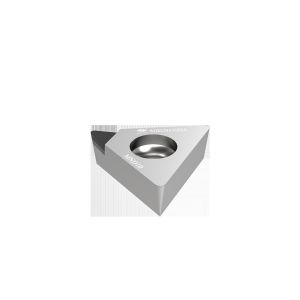

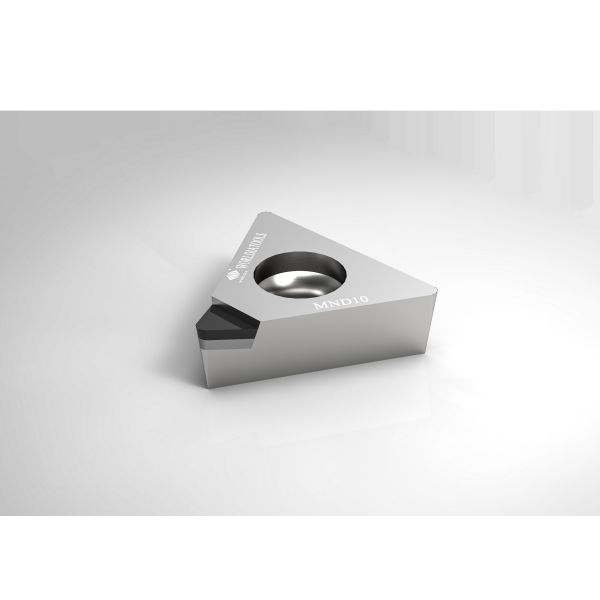

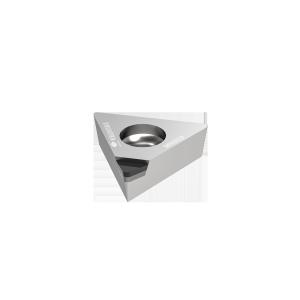

    TCGT090204 Carbide PCD Turning Inserts Aluminium Turning Inserts

    Ask Lasest Price
    Brand Name : ManaNova
    Model Number : TCGT 090204
    Certification : ISO9001,14001.18001, RoHS
    Price : $20-40/ Piece
    Payment Terms : L/C, T/T, D/A, D/P
    Supply Ability : In stock
    Delivery Time : 3-4days
    • Product Details
    • Company Profile

    TCGT090204 Carbide PCD Turning Inserts Aluminium Turning Inserts

    TCGT 090204 Standard Carbide Turning Insert PCD Cutting Insert for non-ferrous materials


    WORLDIA


    Our products mainly cover high-precision PCBN/PCD/CVD cutting tools, solid carbide tools,

    holders as well as PCD/CVD materials.


    Description:


    ManaNova, a sub-brand of Worldia, is positioned as a high-end standard series.

    To meet the needs of customers as the goal, we select PCD/PCBN materials to meet the needs of customers and

    provide a universal, stable, and efficient cutting effect.


    MANANOVA takes “Easy choice and Fast delivery”as the feature, which intends to provide fast and

    efficient service for customers to meet their demand.


    The critical feature of ManaNova is Easy choice and Fast delivery.
    "Easy choice" is easy to choose according to the comparison table and application.
    "Fast delivery" is all the ManaNova PCD Inserts in the catalog are available in stock.

    Eliminating force majeure, you can get within 4-5 days.


    Main products:


    PCBN insert is suitable for machining hardened steel, gray cast iron, ductile iron, and powder metallurgy.

    “Seven material/ one type” namely each specification corresponding to seven materials

    (MHN10C ,MHN20C ,MHN30C, MKN10,MKN20,MSN 10,MSN20)is the feature of the PCBN insert.


    PCD insert (MND10 material ) is suitable for rough and finish machining of aluminum alloy and other

    non-metal materials. The four edge types are standard, chip breaker, full edge, and full face.


    Advantages:
    · Universal
    · Easy choice
    · Fast delivery


    Service:
    · Online store service
    · Local distributor support
    · Technical support


    Application:

    MND10Suitable for the cutting of non-ferrous materials such as aluminum alloys, etc.

    PCD tools are limited to non-ferrous materials, such as high-silicon aluminum, metal matrix composites (MMC), and carbon fiber reinforced plastics (CFRP).
    PCD with flood coolant can also be used in titanium super-finishing applications.
    ·Aluminum and aluminum alloys
    ·Copper, brass, and bronze alloys
    ·Zinc and magnesium alloys
    ·Carbon Fiber
    ·Epoxy resins
    ·Plastics
    ·Fiberglass composites
    ·Graphite composites

    Specification:

    AngleDimensionsGrade
    ANSI CodeISO CodeTipsIC
    mm
    S
    mm
    R
    mm
    Φd
    mm
    LE
    mm
    MND
    10
    TCGT 1.81.50.5TCGT 0902021N5.562.380.22.42.5
    TCGT 1.81.51TCGT 0902041N5.562.380.42.42.5
    TCGT 220.5TCGT 1103021N6.353.180.22.82.5
    TCGT 221TCGT 1103041N6.353.180.42.82.5
    TCGT 222TCGT 1103081N6.353.180.82.82.5
    L-TCGT 32.51L-TCGT 16T3042N9.5253.970.44.415.9

    Feed rate recommendation
    Nose radius(mm)Ra um
    0.20.40.81.63.26.4
    Feed Rate f (mm/rev)≤
    0.20.0280.0400.0570.0800.1130.160
    0.40.0400.0570.0800.1130.1600.226
    0.80.0570.0800.1130.1600.2260.320
    1.20.0690.0980.1390.1960.2770.392
    1.60.0800.1130.1600.2260.3200.453
    2.40.0980.1390.1960.2770.3920.554
